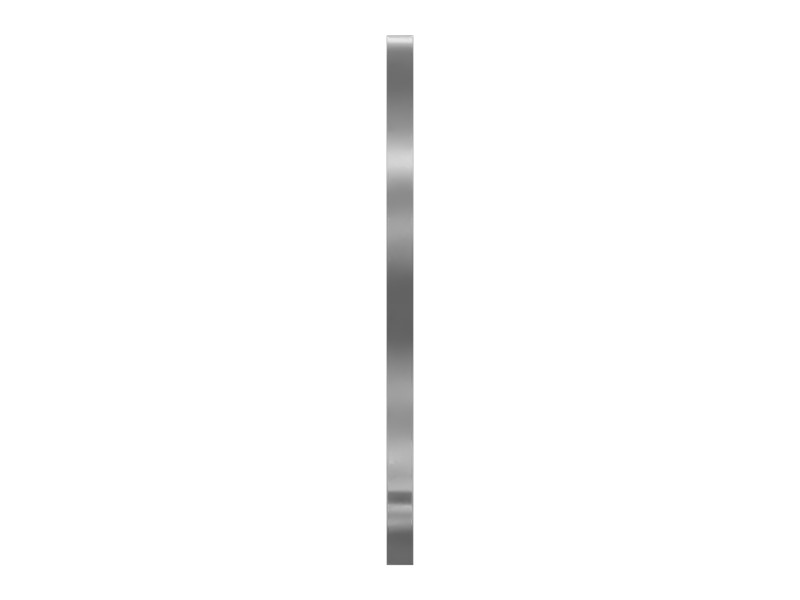

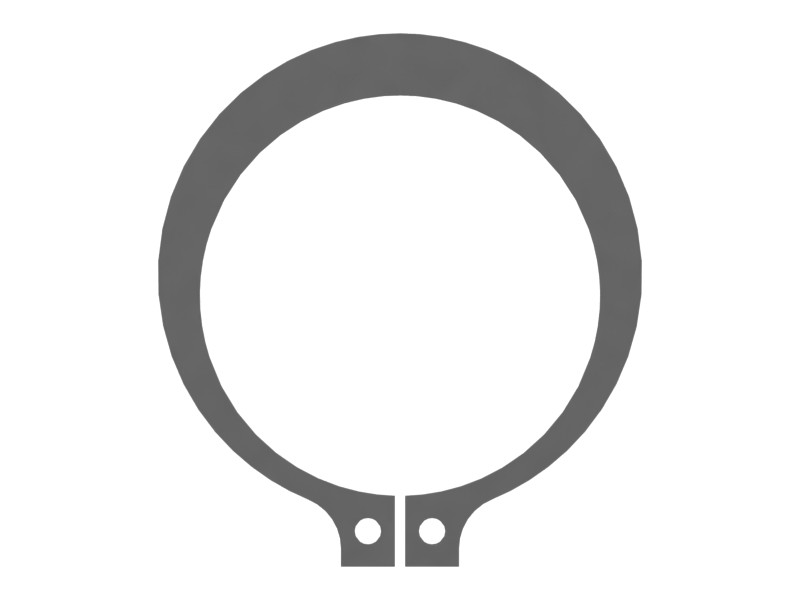

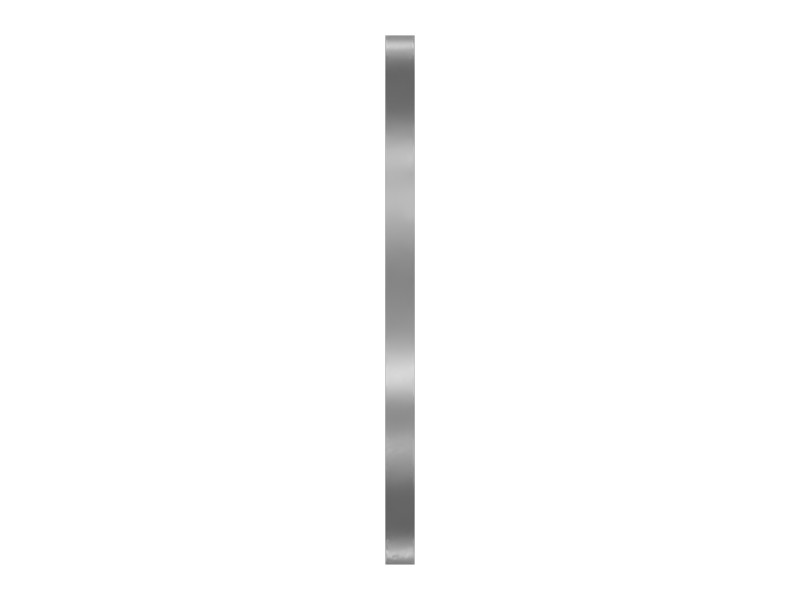

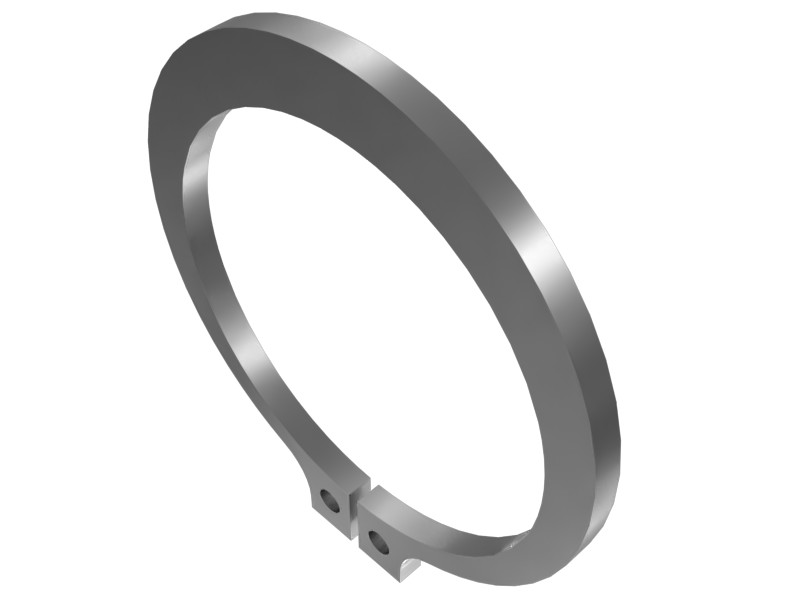

6V-3213 40.84 mm Free Diameter External Retaining Ring
Cat® 2.77 mm thick external retaining ring supports the O-ring and collar in the idler.
Description
Cat® retaining rings install in a machined groove in a housing/bore (internal) or on a shaft (external), providing high strength and long service life in a wide range of applications. Cat retaining rings are manufactured to precise specifications to be durable, reliable and efficient. You can count on this "Built For It" product to help you get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
- ROHS compliant
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Remarks | Free Diameter: 40.84, Radial Wall: 6.45, Lug Height: 7.5, Groove Width: 3.11, Groove Diameter: 41.9, Shaft Diameter: 44.5 |
|---|---|
| Thickness | 2.77 mm |
| Cross Hole | Yes |
| Material Description | Steel Retaining Ring |
| Material | Carbon Steel |
Compatible Equipment
- Cold Planers: PM620, PM622
- Compact Track Loaders: 299D3, 279D3
- Excavators: 416E, 416F2, 432, 428F, 434F2
- Wheel Loaders: 924GZ, 926M, 938K, 924K, 924HZ, 938M
- Skid Steer Loaders: 279C, 239D3, 289D3, 259D3, 299D3 XE, 249D3, 262D
