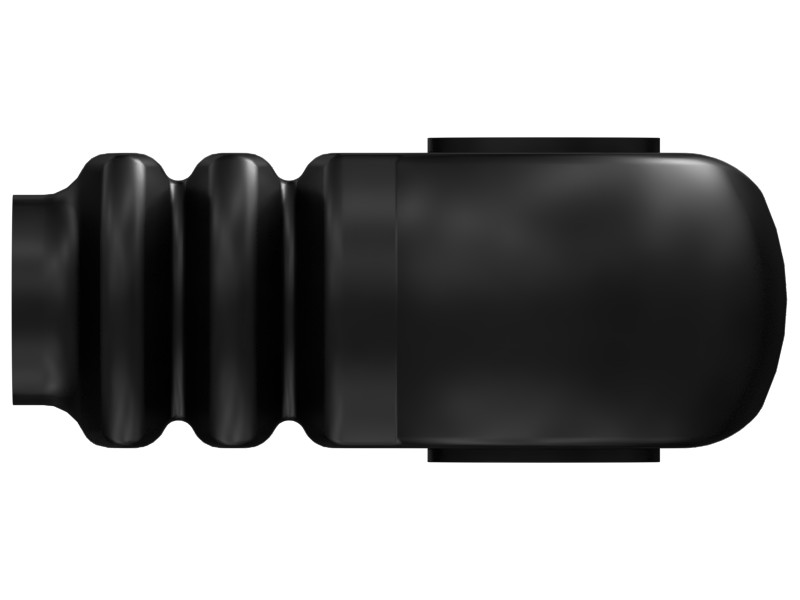

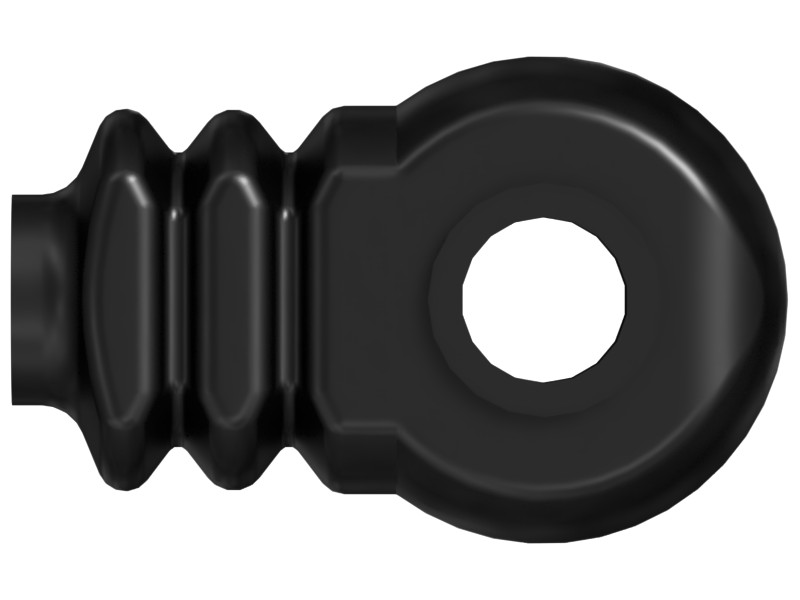

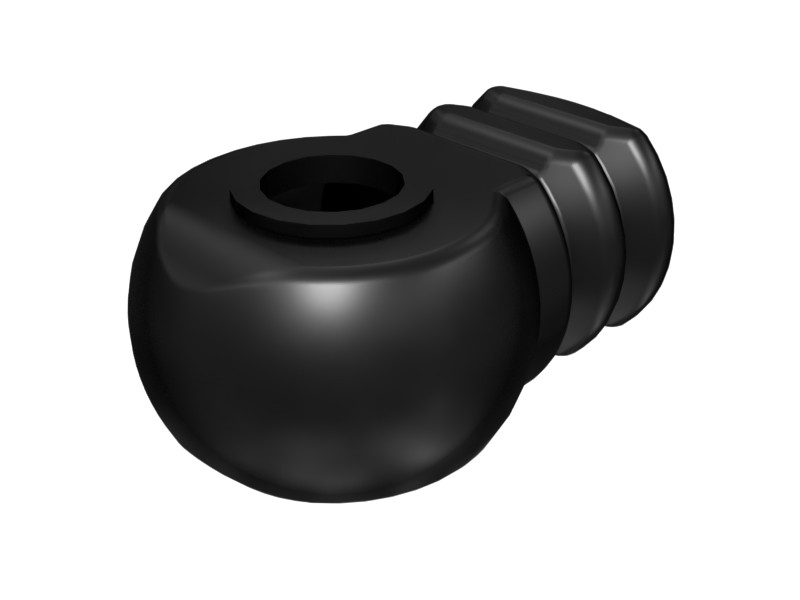

6V-2761 17 mm ID Rod End Boot
Cat® rod end boot for steering clutch and brake, OD X ID X Height: 32.5 X 17 X 69 mm
Description
The 6V-2761 rod end boot is used in steering clutch and brake systems to protect the rod end.
Rod end boots are used in control systems to protect the rod end from dust and contaminants during operation, extending the service life of the tie rod. These parts are designed with a well-matched combination of material and shape to deliver the desired performance for your application.
Features
- Material: Dip-Coated Neoprene
- Outside Diameter: 32.5 mm (1.28 in)
- Inside Diameter: 17 mm (0.67 in)
- Height: 69 mm (2.72 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Height | 69 mm (2.72 in) |
|---|---|
| Inside Diameter | 17 mm (0.67 in) |
| Material | Neoprene |
| Outside Diameter | 32.5 mm (1.28 in) |
Compatible Equipment
- Dozers: D8L, D9R, D7H, D9N, D9L, D8R, D8N, D11N, D10N, D10
