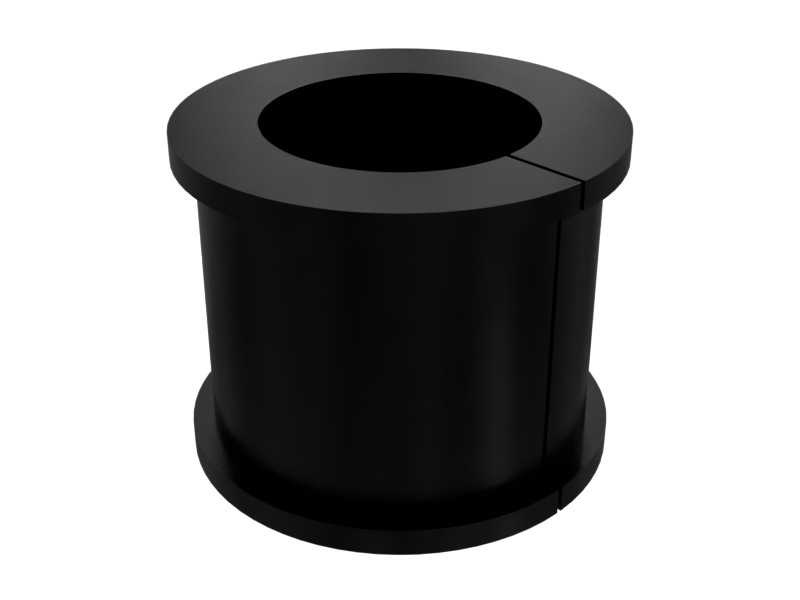

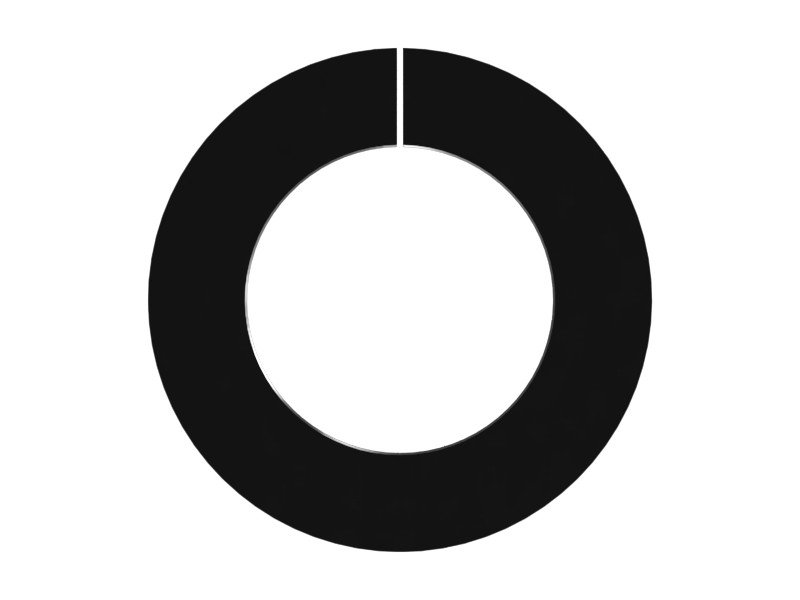

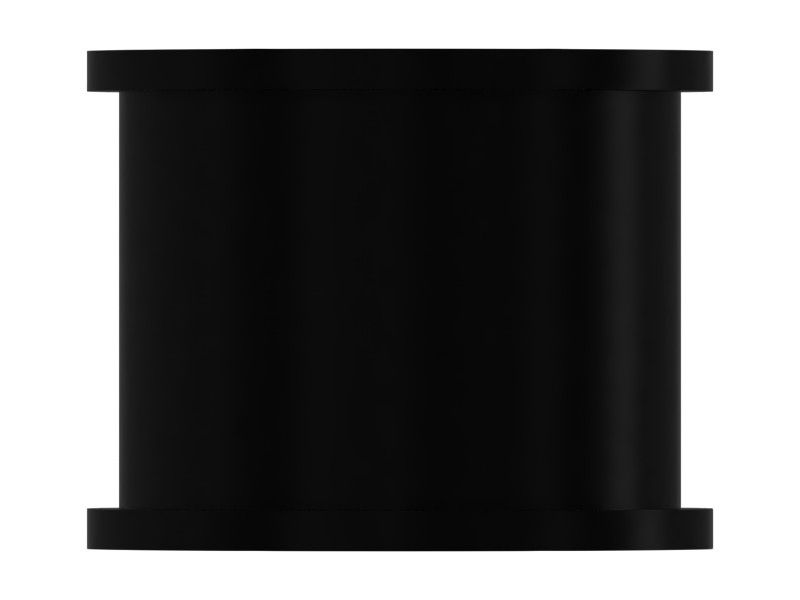

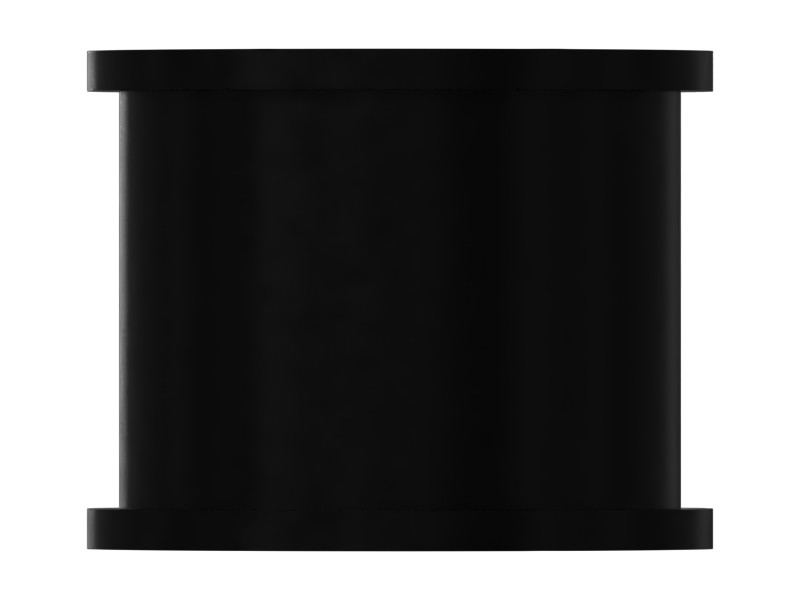

6V-1875 Rearview Mirror Rubber Grommet
Cat® 78 mm OD rubber grommet for securing hydraulic pilot lines or rearview mirrors
Description
Grommets are commonly used to route various components, such as wiring, hoses, and cables. These components often need to pass through metal surfaces, such as body panels or firewalls, while still maintaining a sealed and protected connection. The grommet is typically made of rubber or other flexible material and is designed to fit tightly around the component being routed. It provides cushioning and a secure fit, helping to protect components from damage caused by vibration or movement. It is a small, round rubber piece designed to hold oil cooler lines in place and prevent them from rubbing against other components or the frame.
Features
- Highly heat resistant.
- Designed to prevent damage to wiring or cables.
- Protects against abrasion, vibration and other types of wear.
Applications
The grommet is used to protect and organize hoses.
Specifications
| Diameter | 70.00 (Groove) mm (2.756 (Groove) in) |
|---|---|
| Material Description | Rubber |
| Groove Diameter – B (+/- 0.001 in) | 2.76 in |
| Groove Diameter – B (+/- 0.0254 mm) | 70 mm |
| Type | Split |
| Groove Width – A | 52 mm (2.05 in) |
| Length | 62.0 mm (2.441 in) |
| Inside Diameter | 48 mm (1.89 in) |
| Width | 52.0 (Groove) mm (2.047 (Groove) in) |
| Material | Rubber |
| Outside Diameter | 78 mm (3.07 in) |
| Overall Width | 62 mm (2.44 in) |
Compatible Equipment
- Track Loaders: 990K, 995, 982, 834H, 994K, 993, 992
- Motor Graders: 12K, 12H, 160K, 120H, 140H, 140K
- Compactors: 834K
- Wheel Excavators: MD6250, MD6200, MD6310
- Dozers: D10, D10T2, D11, D6T, D11T, D11R, D11N
- Excavators: 349F L, 374, 330D L, 637K, 657G, 637G, 345C, 352F, 349E L, 365C, 349E L VG, 349E, 6020B, 345D L, 621K, 345C L, 349D L, 385C L, 350 L, 345B, 340D2 L, 621G, 6015B, 345D, 385B, 6060, 6040, 336D2 L, 637E, 336E L, 6015, 330C L, 336F, 336E, 336D L, 330C, 336F L, 330 L, 330D, 336D2 GC, 336F LN, 365B, 621H, 340D L, 365C L, 336E LN, 6030, 349D, 349D2, 336D2, 336D, 349D2 L
- Mini Excavators: 307E2
- Wheel Loaders: 988K, 966H, 972H, 990H, 836, R1700 XE, 980, 950H, 980L, 834, R1700 II, R1700G, RM400, R1700K
- Off-Highway Trucks: 794 AC, 793D, 793F, 785D, 797F, 773E, 777, 798 AC, 796 AC, 785, 777E, 777D, 789D, 7495, 793, 773
- Asphalt Pavers: AD45
Additional information
| Machine Model | 120H, 12H, 12K, 140H, 140K, 160K, 307E2, 330 L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E L, 336E LN, 336F, 336F L, 336F LN, 340D L, 340D2 L, 345B, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350 L, 352F, 365B, 365C, 365C L, 374, 385B, 385C L, 6015, 6015B, 6020B, 6030, 6040, 6060, 621G, 621H, 621K, 637E, 637G, 637K, 657G, 7495, 773, 773E, 777, 777D, 777E, 785, 785D, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 834, 834H, 834K, 836, 950H, 966H, 972H, 980, 980L, 982, 988K, 990H, 990K, 992, 993, 994K, 995, AD45, D10, D10T2, D11, D11N, D11R, D11T, D6T, MD6200, MD6250, MD6310, R1700 II, R1700 XE, R1700G, R1700K, RM400 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
