Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M10 mm (0 in) |
|---|---|
| Thread Direction | RH |
| Locking Feature | None |
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Bolt Length | 100 mm (3.937 in) |

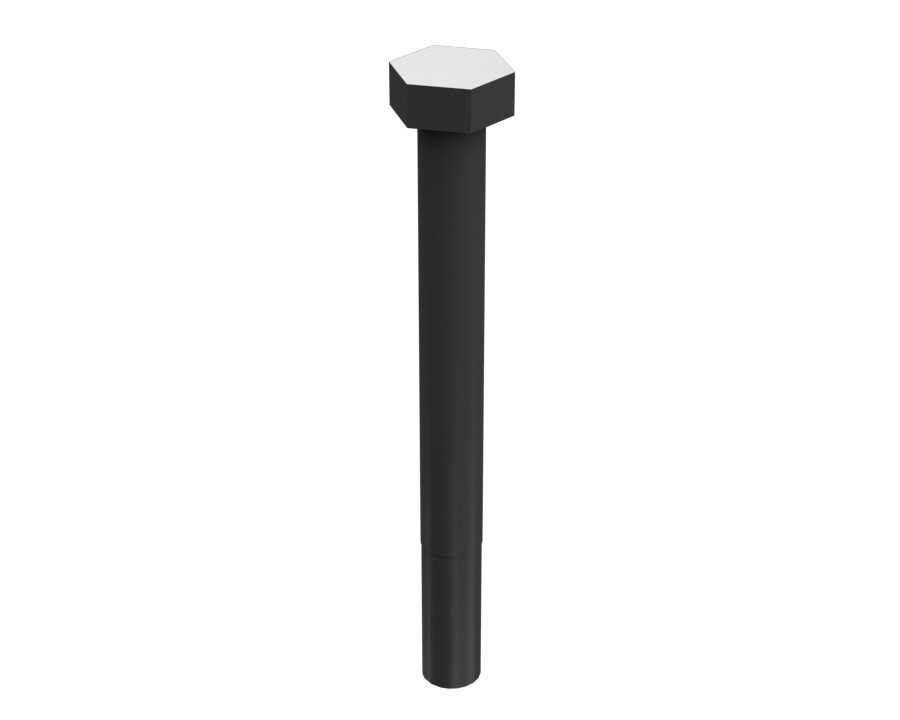

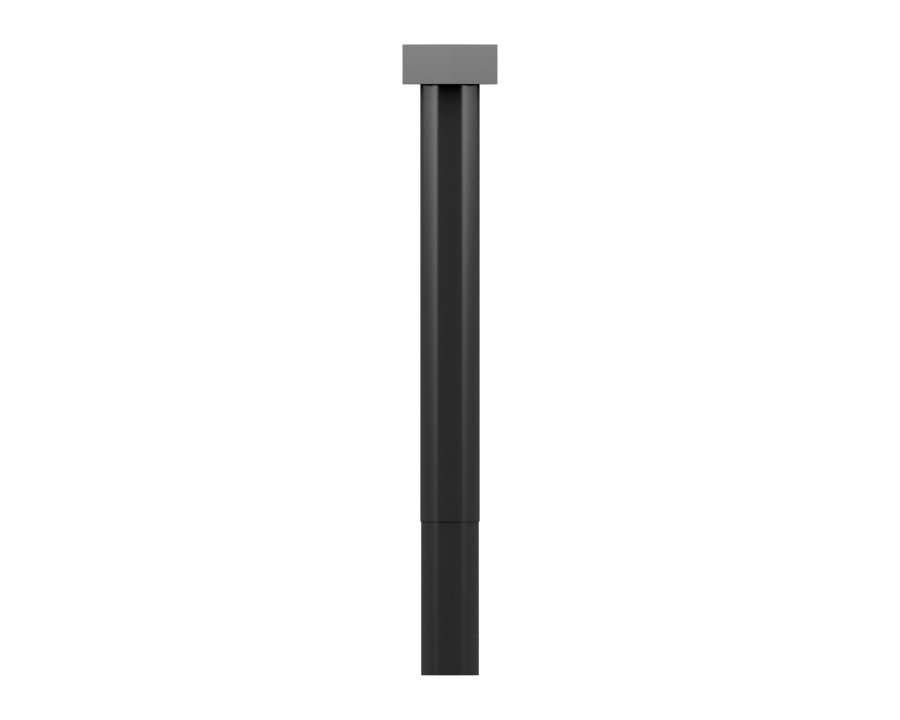

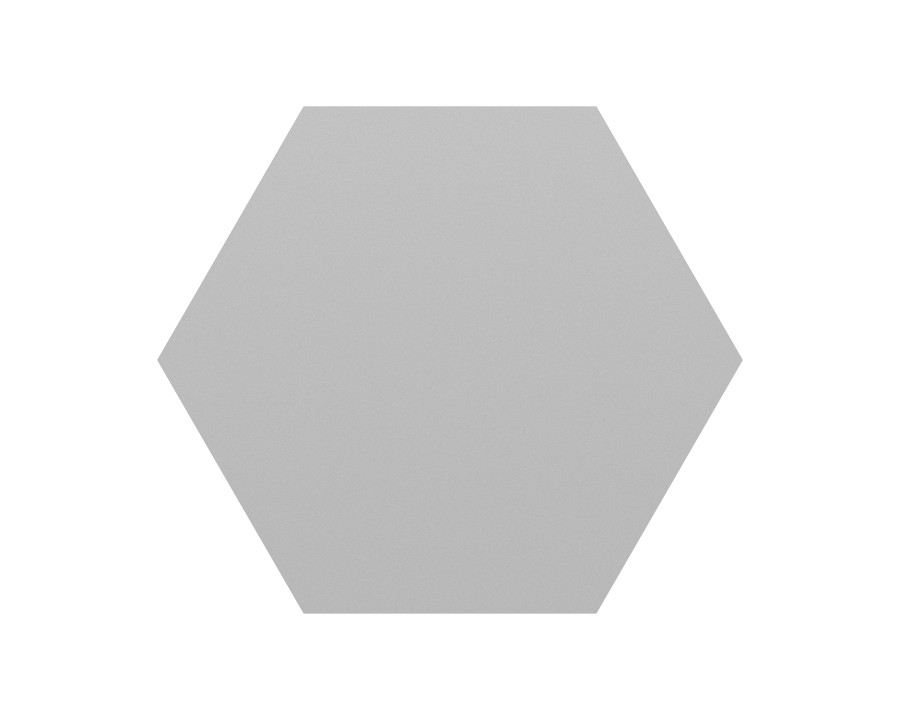

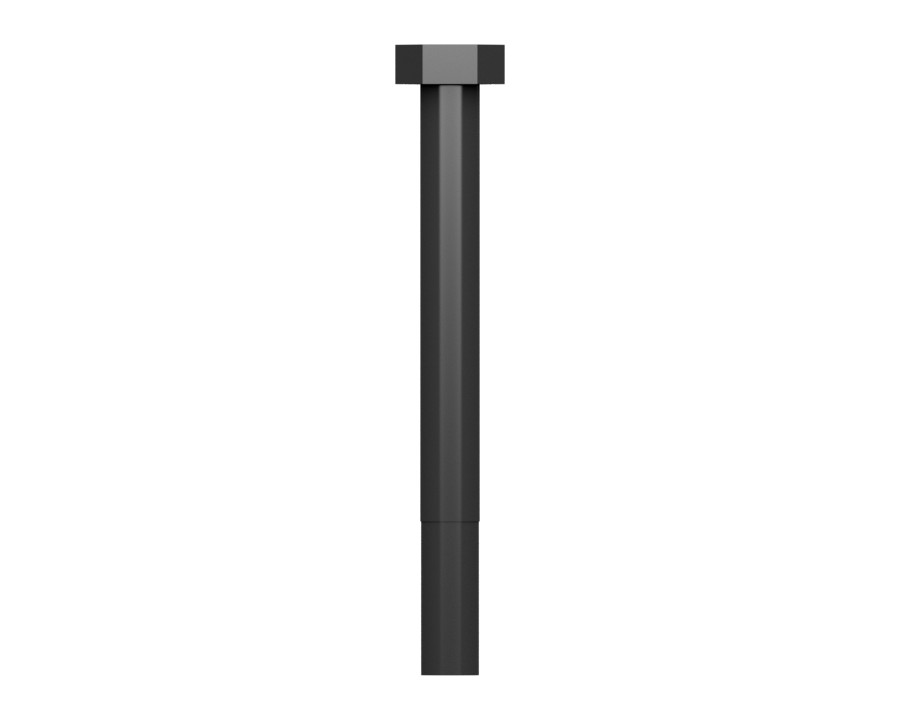

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 74 mm (2.913 in) |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 973K, 972, 826H, 826G, 816F, 824G
- Cold Planers: PL72
- Compactors: CW-34, CW-16, C9.3B, 815, 816, 814, C-9
- Engines: C11, C13, C15, C7, C175-16, C12, C18
- Excavators: 336D2, 336D, 3126, 349D2, 349D2 L, 349D, 330D L, 313, 340, 336, 345 GC, 350, 336D L, 336D2 L, 336F L, 336D2 GC, 330C L, 336F, 336F LN, 336E, 336F L XE, 336E L, 336E LN, 330C, 336E H, 336E LH, 330 L, 336D2 XE, 330D, 345C, 345D L, 345C L, 349D L, 345D, 3516B, 350MHPU, 637G, 637E, 340D2 L, 340D L, 637K
- Asphalt Pavers: AD45
- Skid Steer Loaders: 24, 3126B
- Motor Graders: 16M, 120, 18, 16, 14, 140G, 160K, 120H, 12H, 140H, 14M, 16M3, 12K, 140K, 349 GC
- Dozers: D7, D6R, D6R II, D6T, D6R III, D6R XL, D8N, D6T LGP, D7E, D6R LGP, D7R
- Wheel Loaders: R1700K, RM400, 966, 972H, 972L, 972G, 980H, 966K, 966H, 966F, 924GZ, 980G, 966L
- Off-Highway Trucks: 793, 797F, 794 AC, 730, 793F, 725C2, 796 AC, 725, 798 AC
Additional information
| Machine Model | 120, 120H, 12H, 12K, 14, 140G, 140H, 140K, 14M, 16, 160K, 16M, 16M3, 18, 24, 3126, 3126B, 313, 330 L, 330C, 330C L, 330D, 330D L, 336, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345C, 345C L, 345D, 345D L, 349 GC, 349D, 349D L, 349D2, 349D2 L, 350, 350MHPU, 3516B, 637E, 637G, 637K, 725, 725C2, 730, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 816F, 824G, 826G, 826H, 924GZ, 966, 966F, 966H, 966K, 966L, 972, 972G, 972H, 972L, 973K, 980G, 980H, AD45, C-9, C11, C12, C13, C15, C175-16, C18, C7, C9, C9.3B, CW-16, CW-34, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7R, D8N, PL72, R1700K, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
