Description

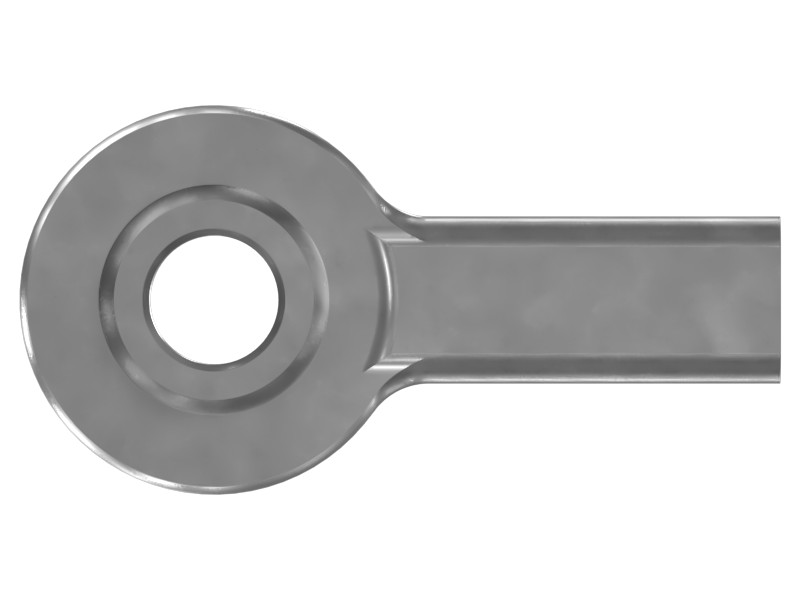

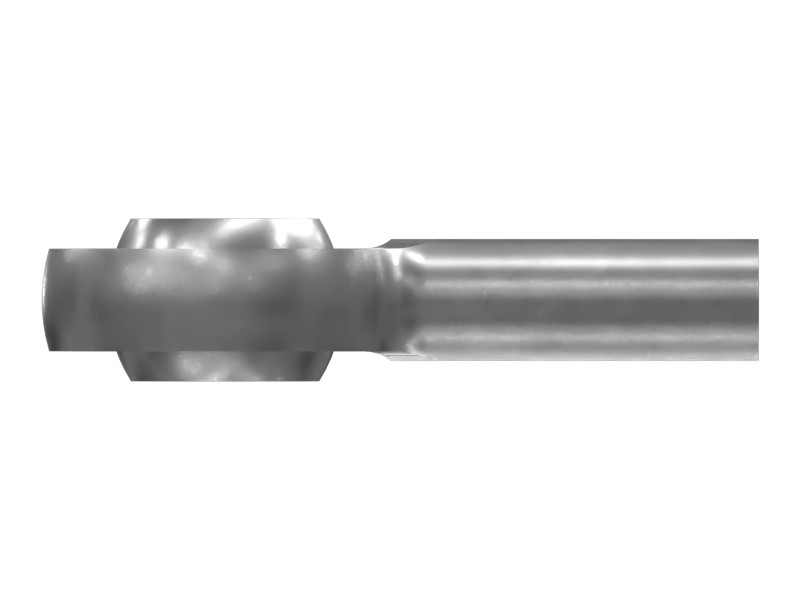

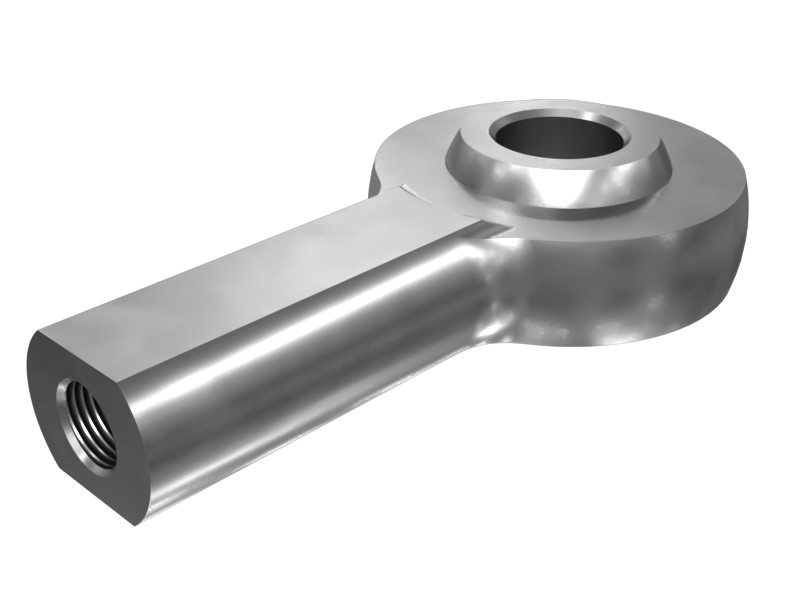

Cat® spherical rod ends offer long service life, low maintenance and high operating reliability. Spherical rod ends provide a mechanical articulating joint that allows oscillation during slow rotation. These joints also accommodate misalignment between the rod end and the connecting shaft. A spherical rod end consists of an eye-shaped head and an integral shank, with the head forming the spherical bearing housing. The bearing reduces friction and provides protection between mating parts. They are intended for low- to medium-speed, high-load applications with low to moderate side thrust.
Features
- Size 6
- Length: 41.7 mm (1.641 in)
- Thread Size: 1/4-28
- Thread Length: 20 mm (0.787 in)
- Material: Steel
- Pivot Angle: 16°
- High load capacity
- Easy installation and removal
- Suitable for heavy-duty static or alternating loads and shock loads
Applications
Cat spherical rod ends are commonly used in rod and linkage groups, as well as control assemblies where strength and flexibility are critical. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Material Description | Steel |
| Length to Pin Hole – A | 41.7 mm (1.641 in) |
| Rod End Diameter – B | 28.7 mm (1.129 in) |
| Thread Size | 1/4-28 in |
Compatible Equipment
- Dozers: D9L, D7H, D8L, D9R, D9N, D8N, D8R, D11N, D10N
- Excavators: 637E
