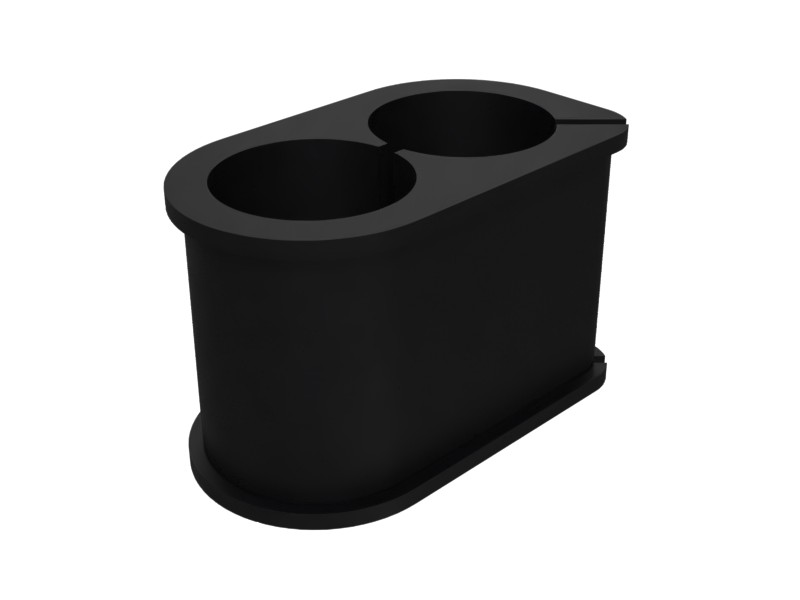

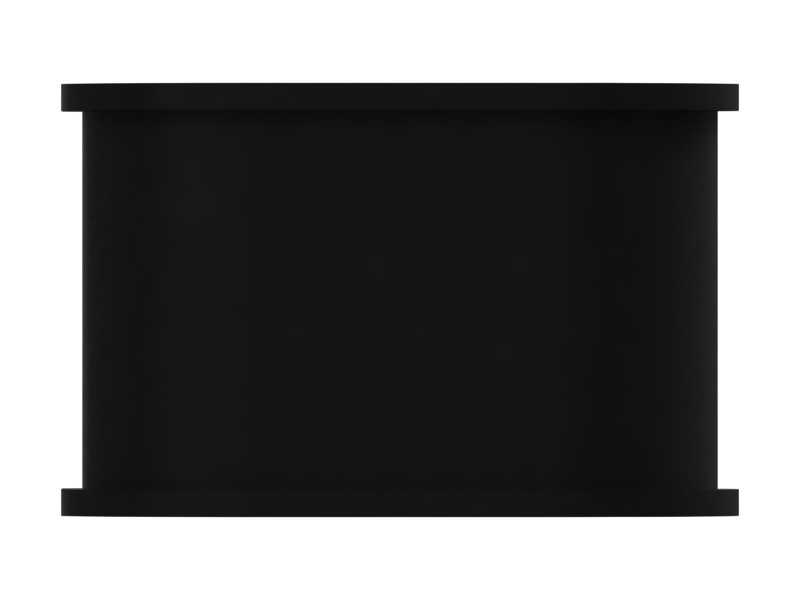

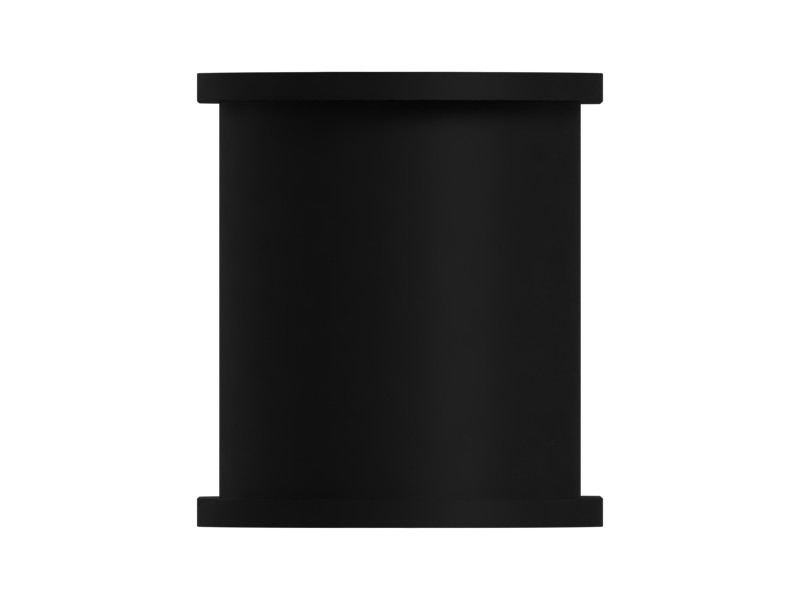

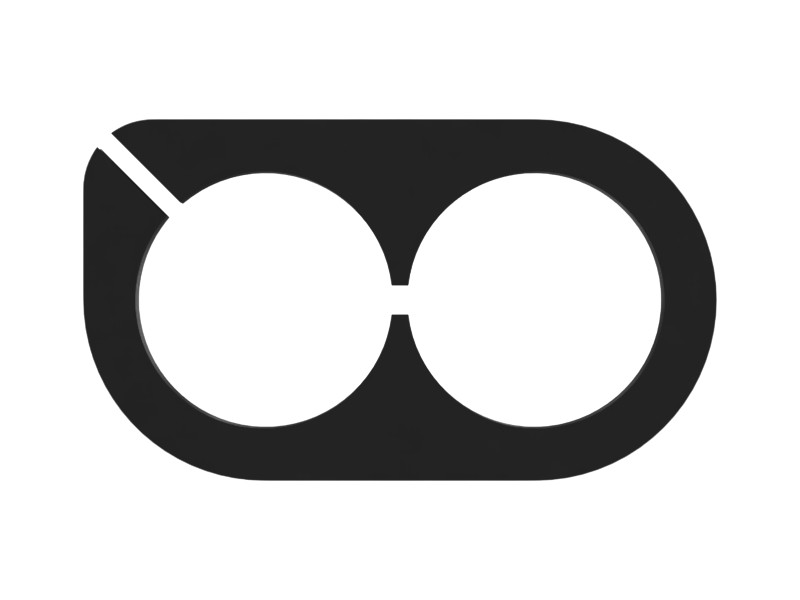

6V-1324 Hydraulic Hose Harness Rubber Grommet
Cat® Hydraulic Dual Hose Harness Split Rubber Grommet
Description
The rubber grommet is specially designed to fit a cylindrical opening and provide a tight seal. The grommet is shaped like a cylinder with a hole in the center for a hose to pass through. The grommet is installed by inserting it into the hole, and because of its tight fit, it stays firmly in place.
Features
- Made of high-quality, durable rubber material that resists water and other corrosive substances.
- Has rubber sheets evenly placed on both sides of the material to hold the rubber in place
Applications
The rubber grommet is used to bundle hydraulic hoses.
Specifications
| Material | Chloroprene (CR) Rubber |
|---|---|
| Material Description | Rubber |
| Groove Width – A | 71.5 mm (2.81 in) |
| Width | 71.5 (Groove) mm (2.81 (Groove) in) |
| Inside Diameter | 52 mm (2.05 in) |
| Overall Height | 72 mm (2.83 in) |
| Overall Length | 81.5 mm (3.21 in) |
| Overall Width | 127 mm (5 in) |
| Type | Slot |
Compatible Equipment
- Track Loaders: 990K
- Dozers: D11T, D11N, D11R, D7H, D8N, D8R
- Excavators: 657G, 349D L, 345D L, 345D, 349D2, 349D, 349D2 L
- Wheel Loaders: 990H
- Off-Highway Trucks: 793F, 793D, 777
- Asphalt Pavers: AD30, AD45, AD63
