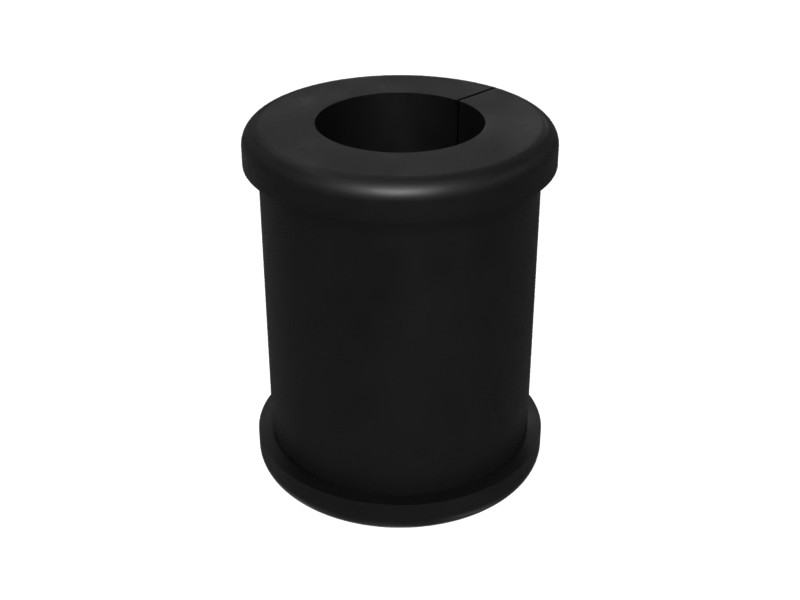

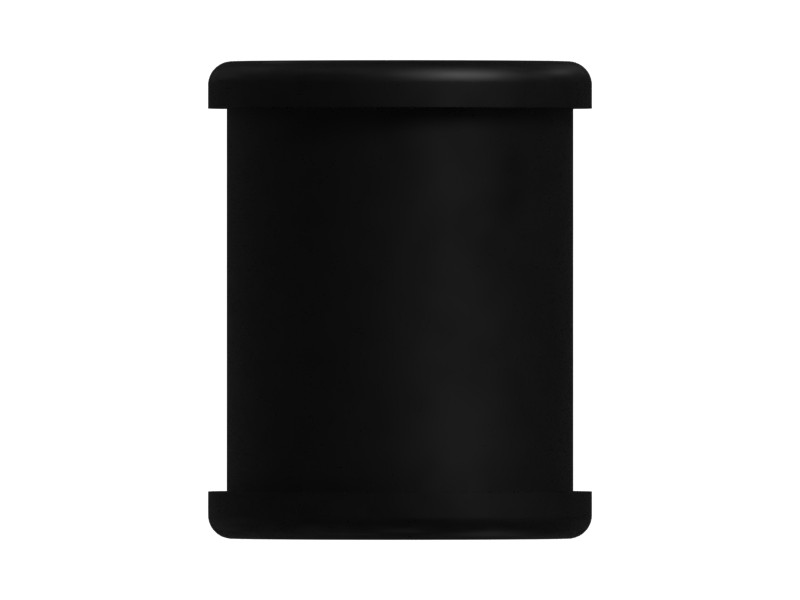

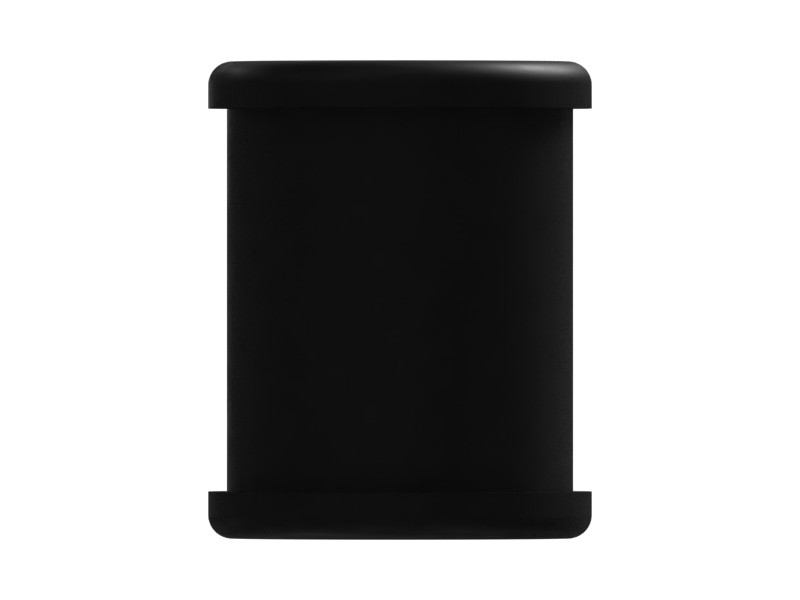

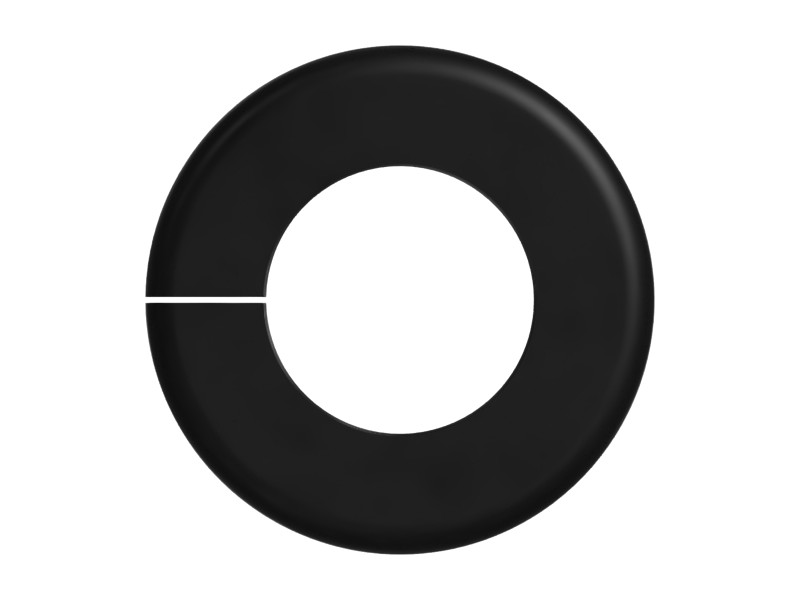

Description
Cat® grommets are made of high-quality rubber suited to the equipment's environment. They keep wires and cables from contacting metal, protect these components from damage (vibration), and prevent rubbing against surrounding structures (vibration, shock, noise).
The grommet has a rubber flange placed evenly on both sides of the material to hold the rubber in place.
Features
The grommet has a rubber tab placed evenly on both sides of the material to hold the rubber in place.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Diameter | 37 mm (1.45 in) |
|---|---|
| Material | Chloroprene (CR) Rubber |
| Inside Diameter | 22 mm (0.87 in) |
| Length | 51 mm (2 in) |
| Groove Width – A | 41 mm (1.6 in) |
| Material Description | Rubber |
| Outside Diameter | 41 mm (1.6 in) |
Compatible Equipment
- Generator Sets: 3512E, 3512B, 3516C, G3516
- Track Loaders: 994K, 834H, 963K, 995, 953, 826K, 990K, 816F, 953K, 963, 992, 982, 972, 993, 826H
- Cold Planers: PL83, PL87, PL72, PM622, PM620
- Compactors: 825K, 834K, 824K, 814, 816, 815
- Engines: C27, C15, C32, C18, C175-16
- Excavators: 390D L, 320D2, 320D, 390F L, 330, 374D L, 326D2, 336D, 329D2 L, 306E2, 326D2 L, 303, 336D2, 308D, 329D2, 303.5E2 CR, 329D, 306E, 305, 374, 349F L, 313, 330D L, 305E2 CR, 313 GC, 395, 6015B, 120 GC, 6060, 637G, 637K, 657G, 637E, 385C L, 416E, 621G, 365C, 3516B, 385B, 385C, 6020B, 326, 352, 355, 3508B, 320, 390D, 416F2, 365B, 385C FS, 336E L, 349, 621H, 365B L, 621K, 3516E, M325D L MH, 313D2, 323, 336, 6015, 312D L, 6040, 312D2, 3101, 6030, 3512C, 336E LH, 340D2 L, 434F2, 365C L, 390F, 428F, 312D, 318D L, 336F L, 320D2 L, 323D2 L, 330D2 L, 324D L, 336D L, 336D2 GC, 318D2 L, 312D2 GC, 330D, 320D2 GC, 324D, 320D L, 336F LN, 313D, 336D2 L, 330D2, 352F, 432, 340, 313D2-GC, 326D L, 312D2 L, 320D GC, 329E L, 313D2 GC, 315C, 336 GC, 315D L, 311D LRR, 329D L, 336F, 329E, 349E L VG, 336F L XE, 318D2, 303.5CR, 303CR, 323D L, 323D2, 325C L, 325C, 320D3, 330 L, 349E L, 325B L
- Asphalt Pavers: AD45
- Skid Steer Loaders: 24, 313D2 LGP
- Motor Graders: 16M, 140 GC, 16, 18, 14, 16M3, 120, 140K, 16H, 12K, 160K, 14M, 3606
- Wheel Excavators: MD6310, MD6200
- Dozers: D9R, D10, D10T2, D11T, D11, D3K2 LGP, D10T, D6M, D5H, D6N, D6R III, D9T, D6T, D6R II, D9N, D6K2, D5K LGP, D8R, D7H, D5K2 XL, D6R, D6T LGP, D8T, D8, D7, D10R, D7R, D7R II, D7E, D6R LGP, D5M, D1, D4, D9, D5N, D8N, D5K XL, D6R XL, D8L
- Mini Excavators: 305.5, 308, 305.5E2, 305.5 GC, 303.5E, 307D, 305E2, 306, 305.5E, 307B, 307C
- Wheel Loaders: R2900 XE, 990H, 924HZ, 988H, 988G, 986H, R3000H, R2900G, 988K, 962L, 950L, 938K, 928G, 924GZ, 938M, 926M, 836, 924K, R1700 XE, 980, 966, 928HZ, 950 GC, 950, 834, R1700G
- Off-Highway Trucks: 796 AC, 740 GC, 745, 777, 797F, 794 AC, 740, 793, 793D, 793F, 725C2, 770G, 773E, 772G, 771D, 777D, 798 AC, 785, 789D, 745C, 773F, 775G, 730, 773D, 740B, 785D, 735, 725, 773, 789, 7495, 777E
