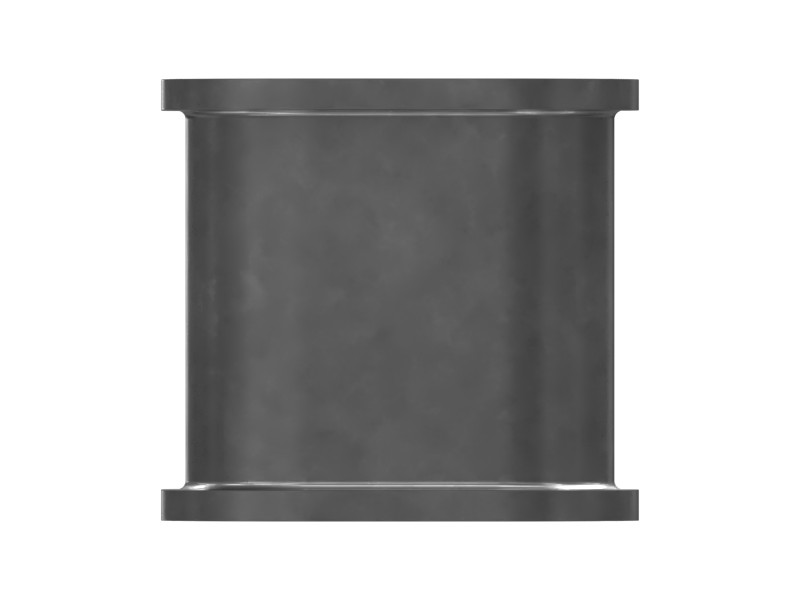

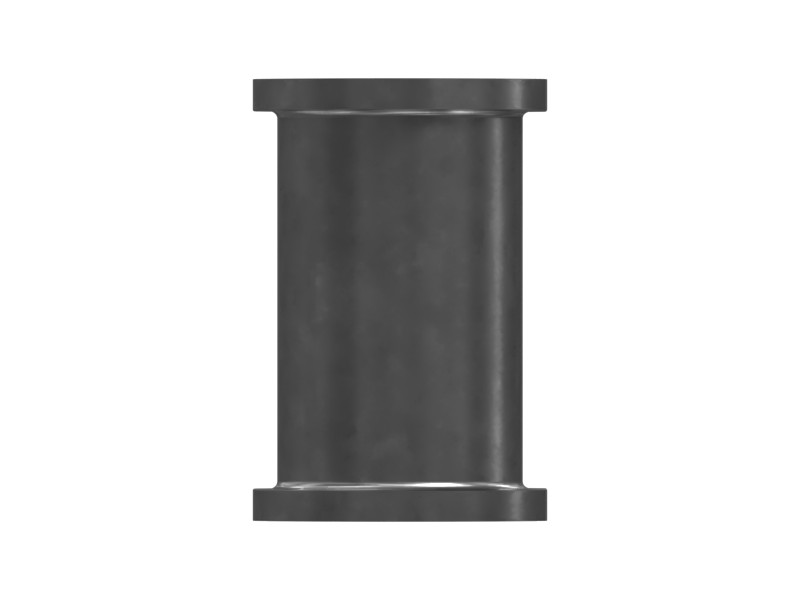

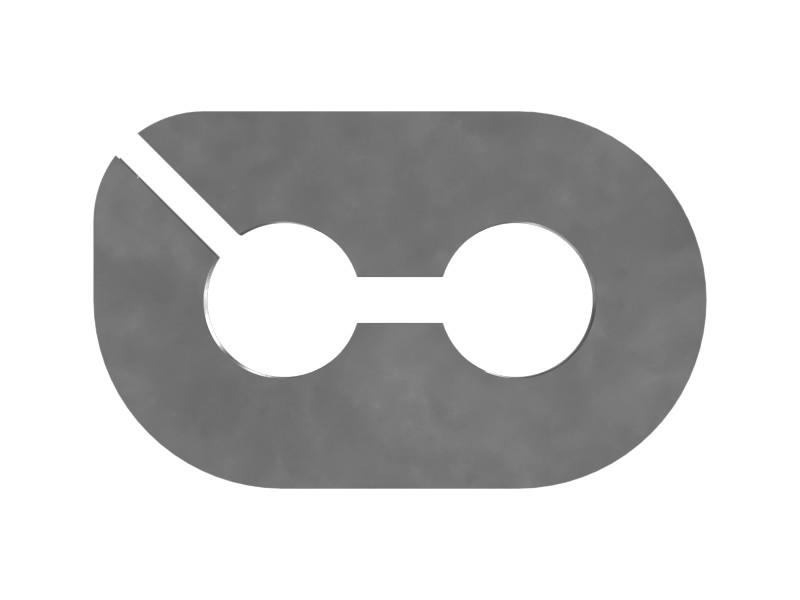

6V-0974 Hydraulic Hose Harness Rubber Grommet

Description

The rubber grommet is specially designed to fit a cylindrical opening and provide a tight seal. The grommet is shaped like a cylinder with a hole in the center for a hose to pass through. The grommet is installed by inserting it into the hole, and because of its tight fit, it stays firmly in place.

Features

Made of high-quality, durable rubber material that resists water and other corrosive substances.
Has rubber sheets evenly placed on both sides of the material to hold the rubber in place

Applications

The rubber grommet is used to bundle hydraulic hoses.

Specifications

Material	Chloroprene (CR) Rubber
Material Description	Rubber
Groove Width – A	62 mm (2.44 in)
Width	62.0 (Groove) mm (2.44 (Groove) in)
Inside Diameter	20 (2X) mm (0.79 (2X) in)
Overall Height	48 mm (1.89 in)
Overall Length	72 mm (2.83 in)
Overall Width	78 mm (3.07 in)
Type	Slot

Compatible Equipment

Motor Graders: 18, 16M, 16, 16M3, 14
Track Loaders: 834H, 993, 992, 972
Dozers: D10, D11R, D10N, D11N, D10R, D8R, D6T, D6R, D8N, D9R, D8T, D7E, D8L, D9N, D9T, D6T LGP, D9L, D8, D7, D9
Mini Excavators: 308
Excavators: 330D L, 374, 330D, 349D L, 621G, 6020B, 345C, 345C L, 345D L, 352, 349, 336D L, 330C, 336D2 GC, 323D L, 328D LCR, 320D RR, 336D2 L, 637G, 340D2 L, 340D L, 345D, 637E, 320D L, 330C L, 395, 6030, 320D, 349D2, 336D, 336D2, 349D2 L, 349D
Wheel Loaders: 982M, 980M, 972M, 992K, 966M
Off-Highway Trucks: 793D, 730, 797F, 7495, 793

Machine Model	14, 16, 16M, 16M3, 18, 308, 320D, 320D L, 320D RR, 323D L, 328D LCR, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 352, 374, 395, 6020B, 6030, 621G, 637E, 637G, 730, 7495, 793, 793D, 797F, 834H, 966M, 972, 972M, 980M, 982M, 992, 992K, 993, D10, D10N, D10R, D11N, D11R, D6R, D6T, D6T LGP, D7, D7E, D8, D8L, D8N, D8R, D8T, D9, D9L, D9N, D9R, D9T
Equipment Type	Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks
Part Source	Genuine OEM

Machine Model

14, 16, 16M, 16M3, 18, 308, 320D, 320D L, 320D RR, 323D L, 328D LCR, 330C, 330C L, 330D, 330D L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 352, 374, 395, 6020B, 6030, 621G, 637E, 637G, 730, 7495, 793, 793D, 797F, 834H, 966M, 972, 972M, 980M, 982M, 992, 992K, 993, D10, D10N, D10R, D11N, D11R, D6R, D6T, D6T LGP, D7, D7E, D8, D8L, D8N, D8R, D8T, D9, D9L, D9N, D9R, D9T

Equipment Type

Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks

Part Source

Genuine OEM
