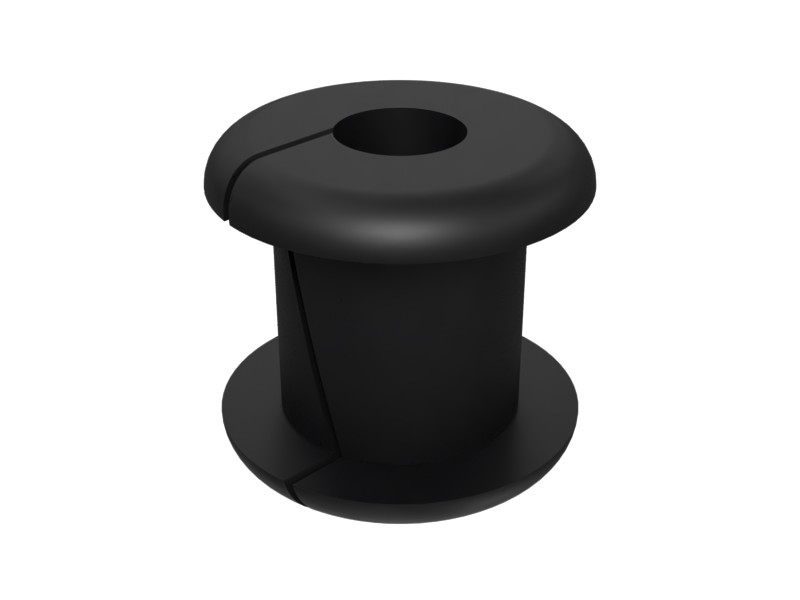

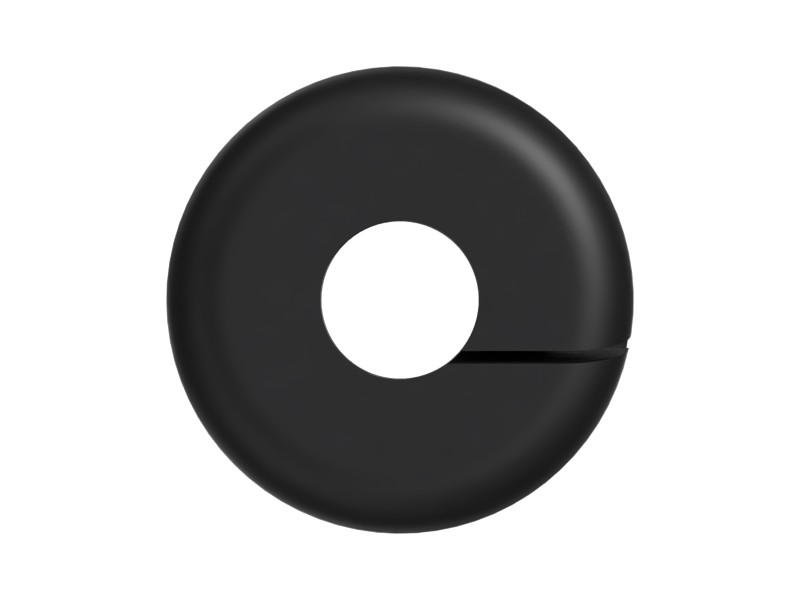

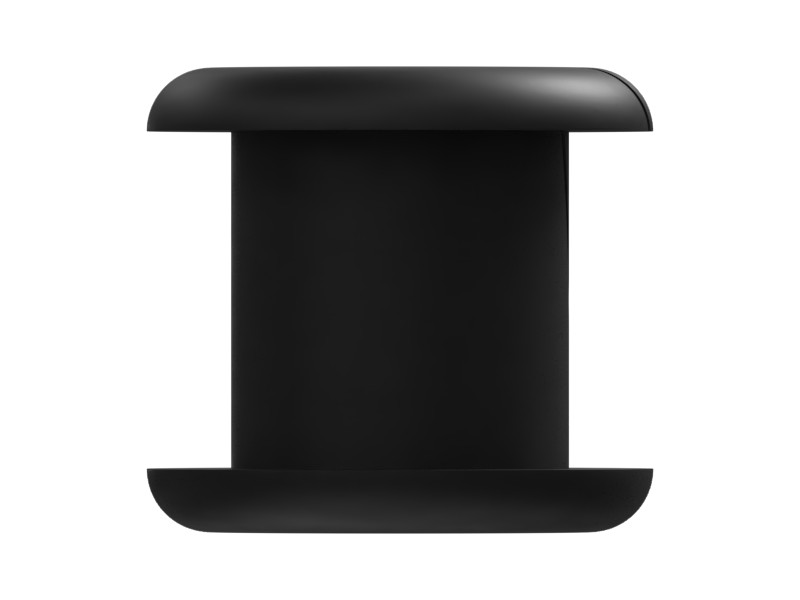

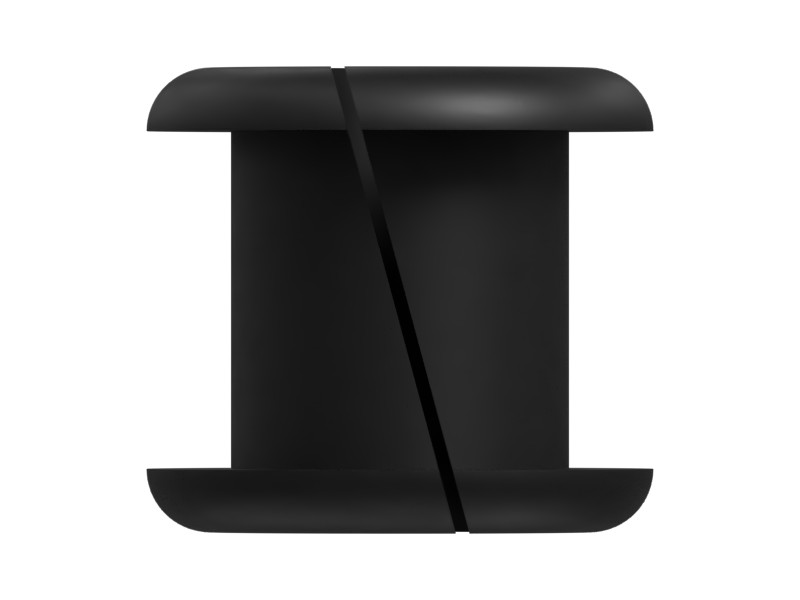

6V-0826 Hydraulic Hose Harness Rubber Grommet
Cat® 38.1 mm OD Hydraulic Hose Harness Split Rubber Grommet
Description
The hydraulic line uses a slit rubber grommet that fits tightly into the hole in the water line and holds the wiring securely in place. This helps prevent water from entering the electrical system and causing short circuits or other electrical problems. In addition to protecting the electrical system, the rubber grommet also provides a tight seal around the wiring, helping prevent water line leaks.
Features
- Made of high-quality, durable rubber material that resists water and other corrosive substances.
- Has rubber sheets evenly placed on both sides of the material to hold the rubber in place
Applications
The grommet is used to bundle the hydraulic hose of the fuel collection line.
Specifications
| Diameter | 25.4 (Groove) mm (1.00 (Groove) in) |
|---|---|
| Material | Ethylene propylene diene terpolymer (EPDM) Rubber |
| Groove Diameter – B (+/- 0.001 in) | 1 in |
| Material Description | Rubber |
| Groove Diameter – B (+/- 0.0254 mm) | 25.4 mm |
| Groove Width – A | 25.4 mm (1 in) |
| Inside Diameter | 13 mm (0.51 in) |
| Width | 25.4 (Groove) mm (1.00 (Groove) in) |
| Length | 34.92 mm (1.38 in) |
| Outside Diameter | 38.1 mm (1.5 in) |
| Type | 15 Degree Slotted |
Compatible Equipment
- Generator Sets: 3512B, G3516
- Track Loaders: 990K, 972, 982, 834H, 994K, 993, 995
- Cold Planers: PM622, PM620, PL83, PL87
- Compactors: 834K
- Engines: C15, C11, C13, C18, C175-16
- Skid Steer Loaders: 242D3, 226D3, 232D3, 239D3, 272D3 XE, 299D3 XE, 272D3, 249D3, 236D3, 259D3, 246D, 236D, 262D, 289D3, 262D3, 236B3, 246D3, 232D
- Motor Graders: 3606, 120, 14
- Dozers: D8, D11, D7, D8T, D11T, D6N, D6K2, D8R, D10, D10T2, D10T, D7E, D1, D6T, D9
- Compact Track Loaders: 299D3, 279D3
- Mini Excavators: 306, 308, 308.5, 310
- Excavators: 637E, 637G, 637K, 621K, 6020B, 6060, 416F2, 621G, 416E, 3516E, 6030, 305 CR, 3512C, 6040, 6015
- Wheel Loaders: 962L, 972L, 938M, 966, 980, 950L, 966L, 834, 988K, 938K, 988H, 992D, 990H, 836, 926M
- Off-Highway Trucks: 796 AC, 798 AC, 797F, 745C, 777E, 773E, 740B, 793F, 785D, 789D, 785, 794 AC, 793D, 777, 793, 789, 773, 725C2, 775G, 7495, 740, 740 GC, 745
Additional information
| Machine Model | 120, 14, 226D3, 232D, 232D3, 236B3, 236D, 236D3, 239D3, 242D3, 246D, 246D3, 249D3, 259D3, 262D, 262D3, 272D3, 272D3 XE, 279D3, 289D3, 299D3, 299D3 XE, 305 CR, 306, 308, 308.5, 310, 3512B, 3512C, 3516E, 3606, 416E, 416F2, 6015, 6020B, 6030, 6040, 6060, 621G, 621K, 637E, 637G, 637K, 725C2, 740, 740 GC, 740B, 745, 745C, 7495, 773, 773E, 775G, 777, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 834, 834H, 834K, 836, 926M, 938K, 938M, 950L, 962L, 966, 966L, 972, 972L, 980, 982, 988H, 988K, 990H, 990K, 992D, 993, 994K, 995, C11, C13, C15, C175-16, C18, D1, D10, D10T, D10T2, D11, D11T, D6K2, D6N, D6T, D7, D7E, D8, D8R, D8T, D9, G3516, PL83, PL87, PM620, PM622 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
