Description

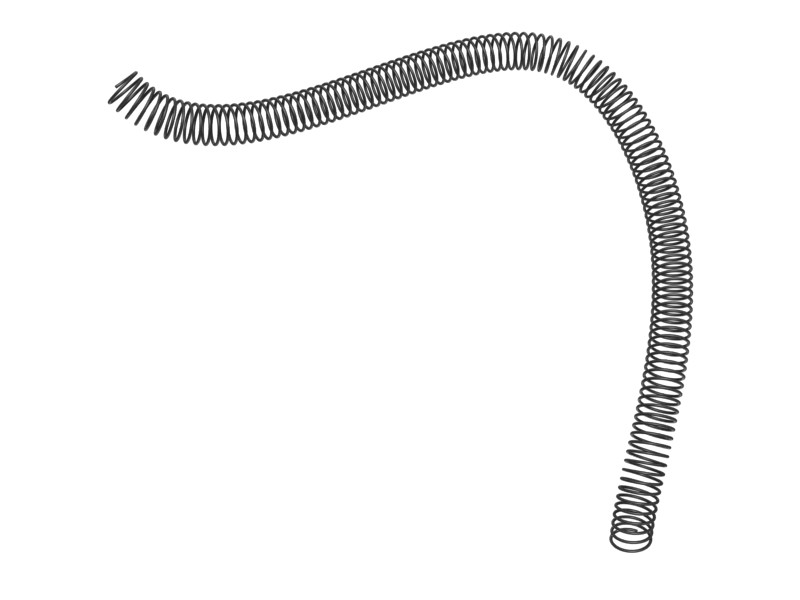

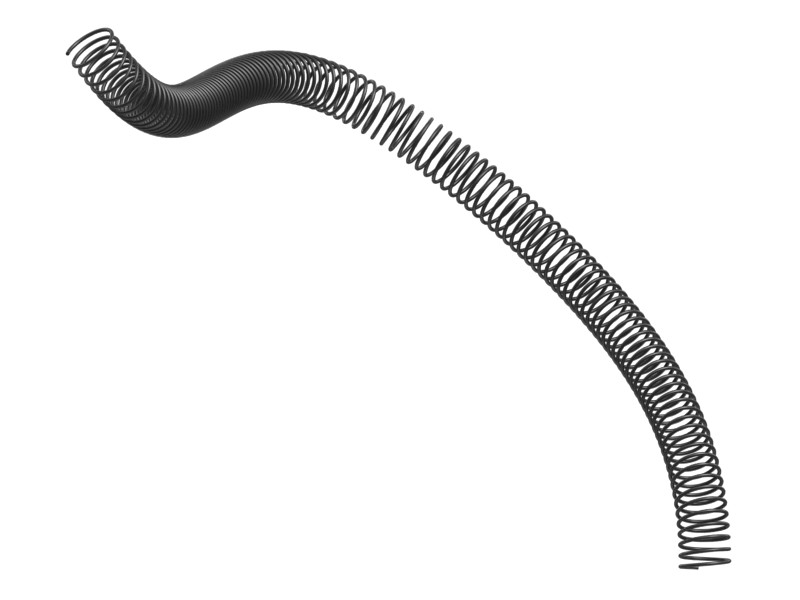

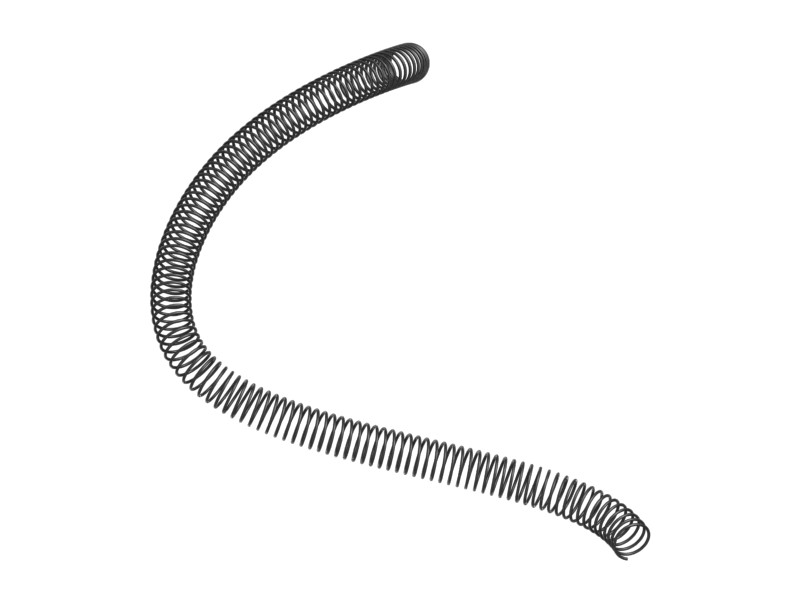

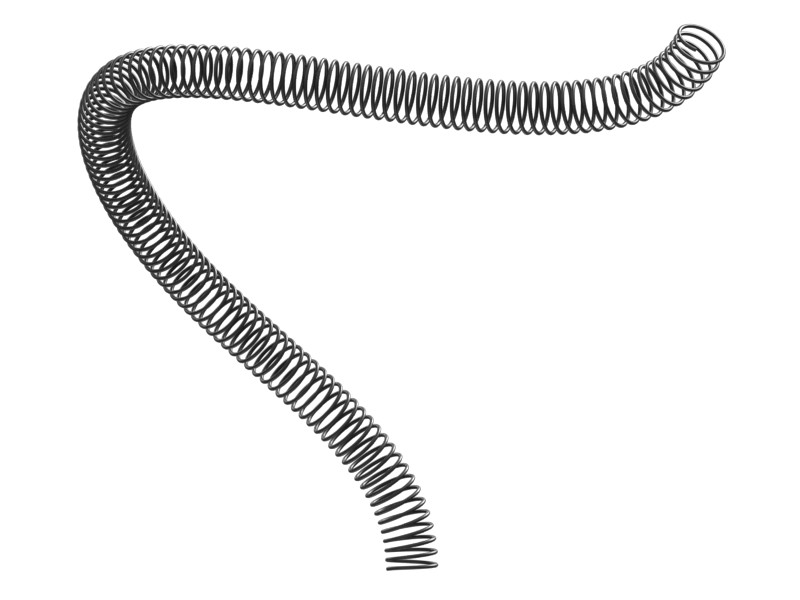

Metal armor guards protect hoses from abrasion, impact, crushing and other hazards.
Features
Cat® metal-armored guards are made of cold-drawn carbon steel wire and are designed to provide superior protection against abrasion, impact, crushing and other hazards. Cat armored guards also use a special plating process to resist rust.
Recommended Applications:
Cat metal-armored guards are intended for low-stress use under static or low-cycle repeated loading, where the operating temperature does not exceed 200°F (or 250°F when greater load loss can be tolerated).
Specifications
| Material | High Pressure Hose |
|---|---|
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Length | 10.008 mm (0.4 in) |
| Height | 30.988 mm (1.2 in) |
| Width | 30.988 mm |
| Bulk Unit of Measure | CM |
Compatible Equipment
- Track Loaders: 953, 963
- Dozers: D5K2 XL, D4, D3K2 LGP, D6R II, D6M, D5H, D6R, D5M, D6N, D6K2, D5N, D6R III, D1
- Mini Excavators: 307E2
- Excavators: 330B
- Off-Highway Trucks: 785
