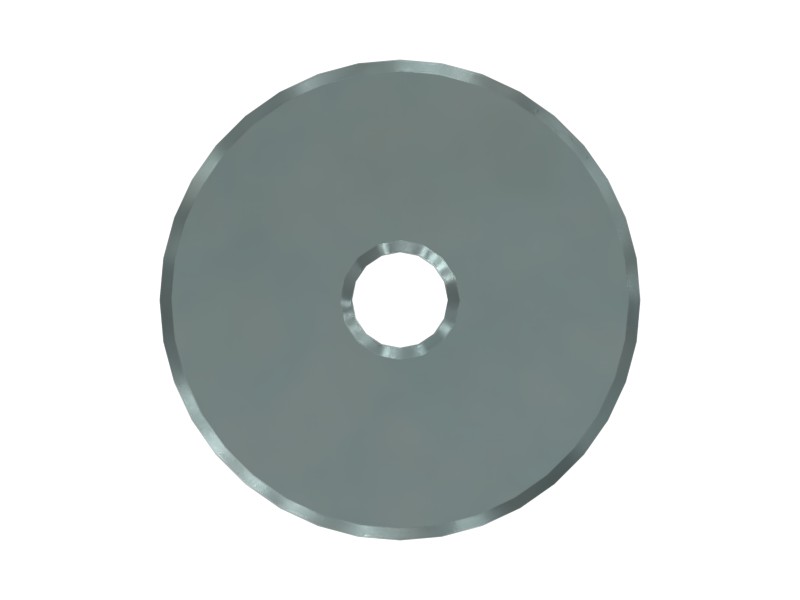

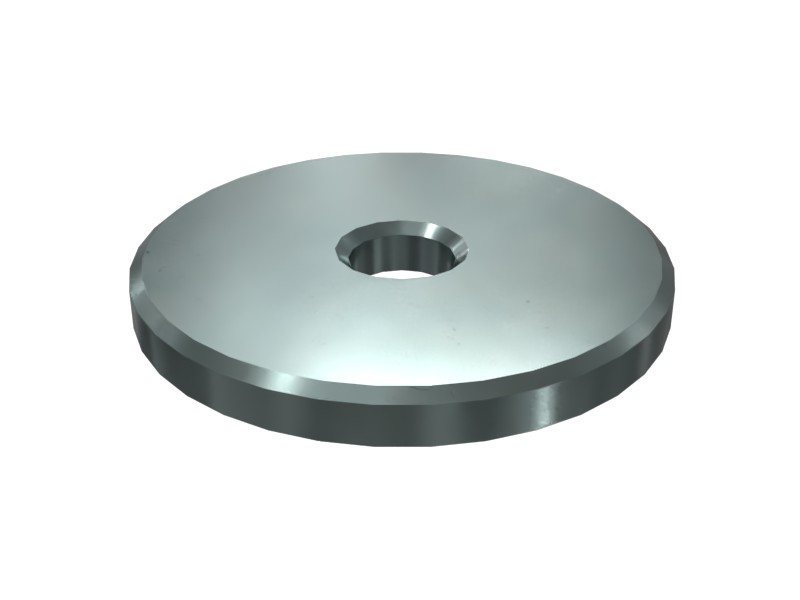

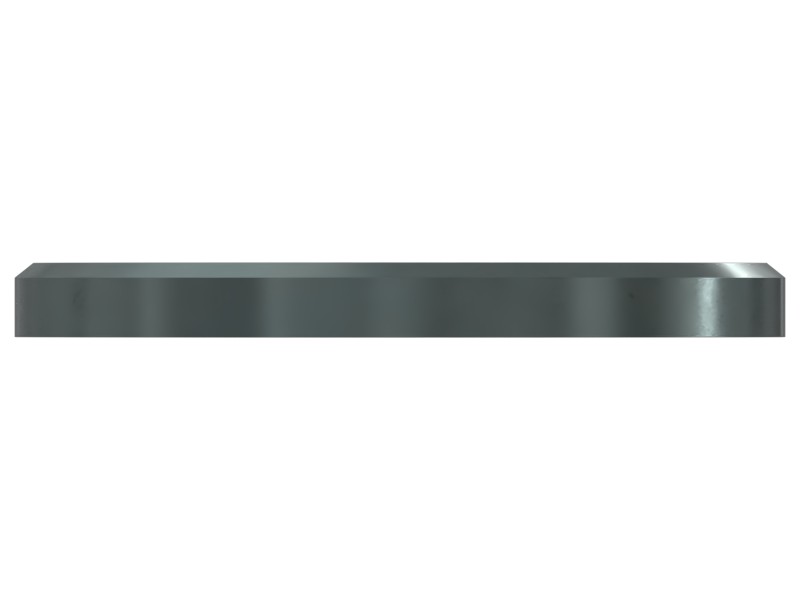

6T-8714 12 mm Thick Hard Washer
Cat® platform mounting hard washers add stability, provide support and reduce vibration
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Gasket Type | Hard |
|---|---|
| Fits Bolt Size | M27 mm (1 in) |
| Inside Diameter | 28 mm (1.102 in) |
| Outside Diameter | 125 mm (4.921 in) |
| Material | HARDENED STEEL |
| Thickness | 12 mm (0.472 in) |
| Coating | Mechanical Zinc Plated |
Compatible Equipment
- Cold Planers: PL83, PL87, PL72
- Dozers: D11, D9T, D11T, D8T, D6R II, D6R III, D6T LGP, D6T, D7R II, D6R, D7R, D9R, D10T2, D11R, D10T, D6R XL, D9, D10, D8
- Excavators: 3508B
