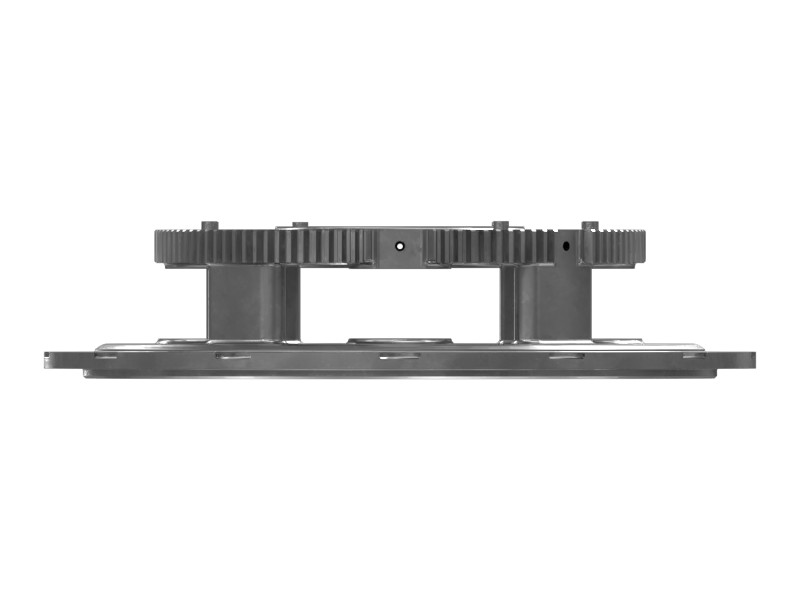

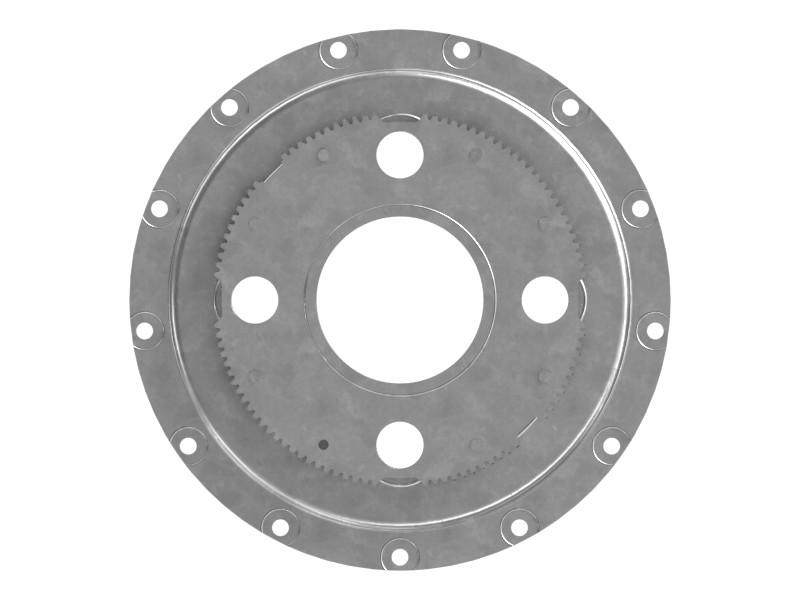

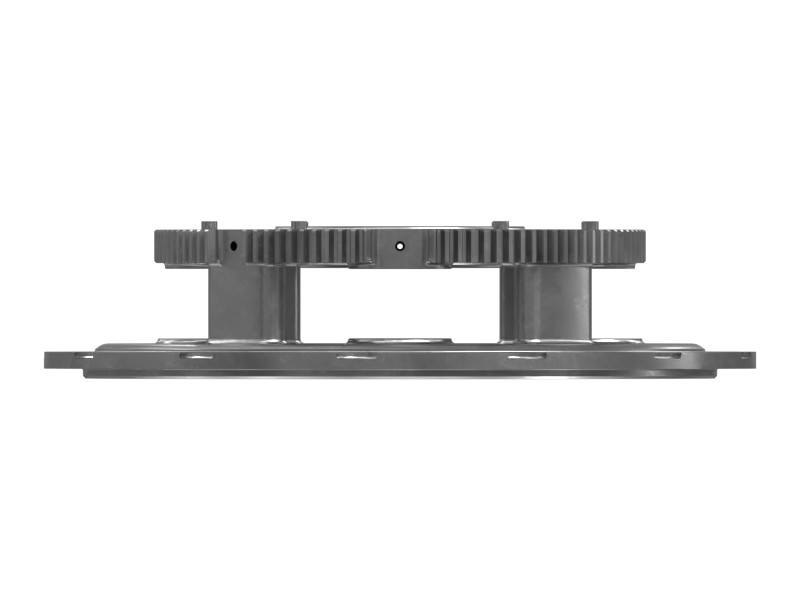

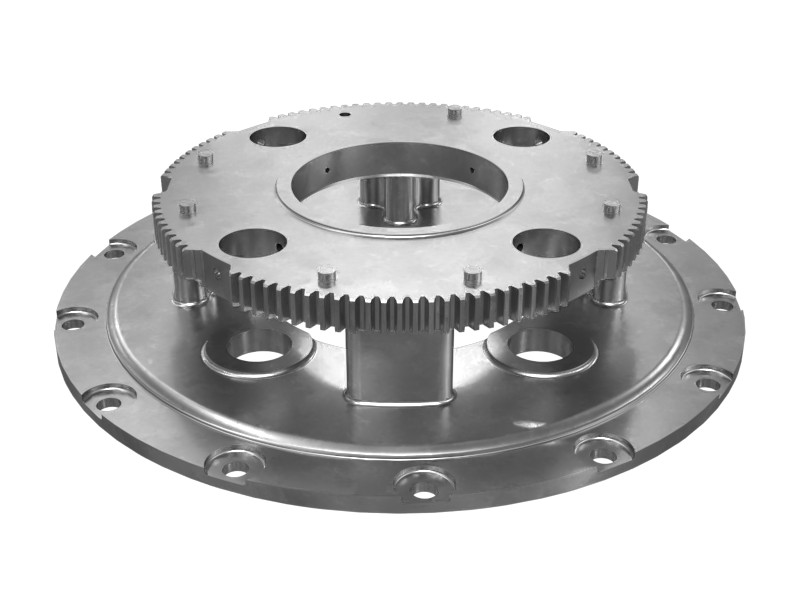

6T-7881 Planetary Gear Carrier
Cat® Planetary Transmission Planetary Gear Carrier that enables gear speed reduction or speed increase within the transmission system
Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent directional shifts. Cat designs and builds transmission and final drive components with these demands in mind, ultimately improving the durability and performance of the powertrain over the life of the machine. The Cat planetary gear carrier is an important powertrain component that connects the planetary gears with the sun gear in a planetary gear system.
Features
- Cast iron planetary gear carrier
- Number of External Spline Teeth: 116
- Pitch Diameter: 294.640 mm (11.600 in)
Applications
Service parts for transmissions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Ductile (Spheroidal) Iron |
|---|---|
| Material Description | Cast Iron |
| Outside Diameter | 432 mm (17.007 in) |
| Inside Diameter | 133.4 mm (5.251 in) |
| Overall Length | 92 mm (3.622 in) |
Compatible Equipment
- Generator Sets: C4.4, 3512B
- Excavators: 3512C
- Off-Highway Trucks: 777D, 777E, 777
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
