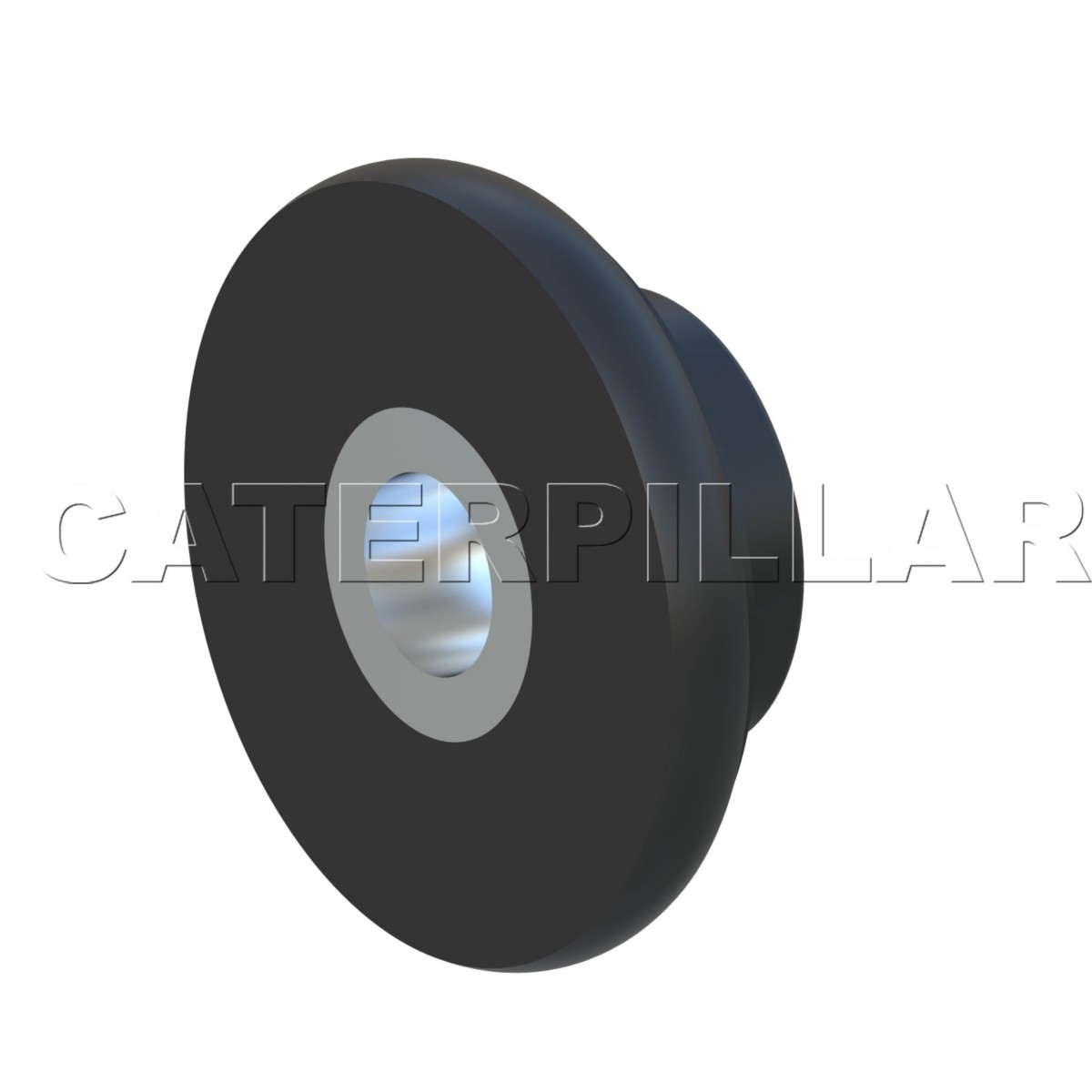

6T-6080 Two-Piece Symmetric Isolation Mount
Cat® Isolation Mount for Hydraulic Tank and Pump Drive
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Two-piece mounts are extremely versatile and include symmetric (two mounts) and asymmetric (mount plus pad) designs. They install in drilled holes in a support plate and are bolted through the center sleeve, either joined or loose.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Two-piece mounts can be fine-tuned through the rubber compound and design geometry to suit a specific application. The mounts are typically pre-compressed for long service life.
Applications
Two-piece mounts are used in a variety of Cat system installations, including engines, transmissions, aftertreatment systems, electronics, cab and HVAC systems, hydraulic components, and structures.
Specifications
| Pilot OD | 57.8 mm (2.27 in) |
|---|---|
| Head Thickness | 15.9 mm (0.62 in) |
| Inside Diameter | 25.4 mm (1 in) |
| Head Outside Diameter | 88.9 mm (3.5 in) |
| Base Height | 35.6 mm (1.4 in) |
| Bonded Sleeve | Yes |
| Mounting Type | Two-Piece – Symmetric |
| Material | Chloroprene (CR) Rubber |
Compatible Equipment
- Track Loaders: 994K, 995
- Dozers: D10, D11T, D11R, D11N, D10R, D10T2, D10N, D10T, D9L, D11
- Wheel Loaders: 950H, 990H, 972H, 966H, 966K, 950 GC
- Off-Highway Trucks: 770G, 785, 794 AC, 796 AC, 793, 798 AC, 772G, 793F, 797F, 793D, 789
- Skid Steer Loaders: 24
Additional information
| Machine Model | 24, 770G, 772G, 785, 789, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 950 GC, 950H, 966H, 966K, 972H, 990H, 994K, 995, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D9L |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks |
| Part Source | Genuine OEM |
