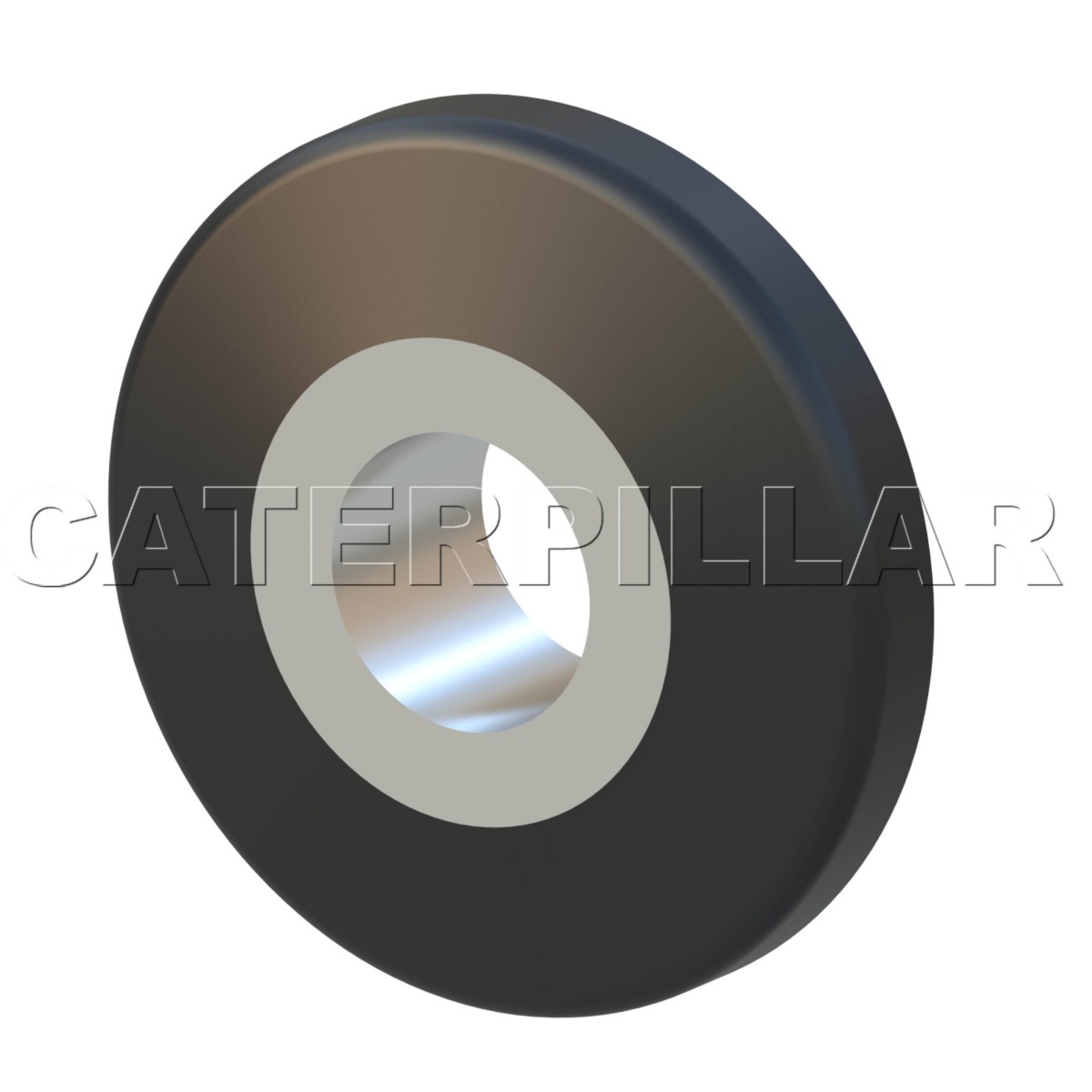

6T-1698 Two-Piece Symmetric Isolation Mount
Cat® Isolation Mount for Sweep Brush and Fuel Tank
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Two-piece mounts are extremely versatile and include symmetric (two mounts) and asymmetric (mount plus pad) designs. They install in drilled holes in a support plate and are bolted through the center sleeve, either joined or loose.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Two-piece mounts can be fine-tuned through the rubber compound and design geometry to suit a specific application. The mounts are typically pre-compressed for long service life.
Applications
Two-piece mounts are used in a variety of Cat system installations, including engines, transmissions, aftertreatment systems, electronics, cab and HVAC systems, hydraulic components, and structures.
Specifications
| Mounting Type | Two-Piece – Symmetric |
|---|---|
| Material | Carbon Steel |
| Inside Diameter | 25.4 mm (1 in) |
| Bonded Sleeve | Yes |
| Head Outside Diameter | 76.2 mm (3 in) |
| Base Height | 24.9 mm (0.98 in) |
| Pilot OD | 54 mm (2.13 in) |
| Head Thickness | 12.7 mm (0.5 in) |
Compatible Equipment
- Track Loaders: 993, 992, 990K
- Cold Planers: PL87, PL72, PL83
- Dozers: D8, D9R, D9, D7E, D7G2, D6R II, D7R II, D8T, D8R, D7R, D7H, D6R III, D6R, D6T, D6N, D6T LGP, D8L, D8N, D6R LGP, D7, D6R XL, D9T, D9N, D7G, D11R, D10N, D10R, D11N
- Excavators: 3508B
- Wheel Loaders: 992K
Additional information
| Machine Model | 3508B, 990K, 992, 992K, 993, D10N, D10R, D11N, D11R, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7G, D7G2, D7H, D7R, D7R II, D8, D8L, D8N, D8R, D8T, D9, D9N, D9R, D9T, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Cold Planers |
| Part Source | Genuine OEM |
