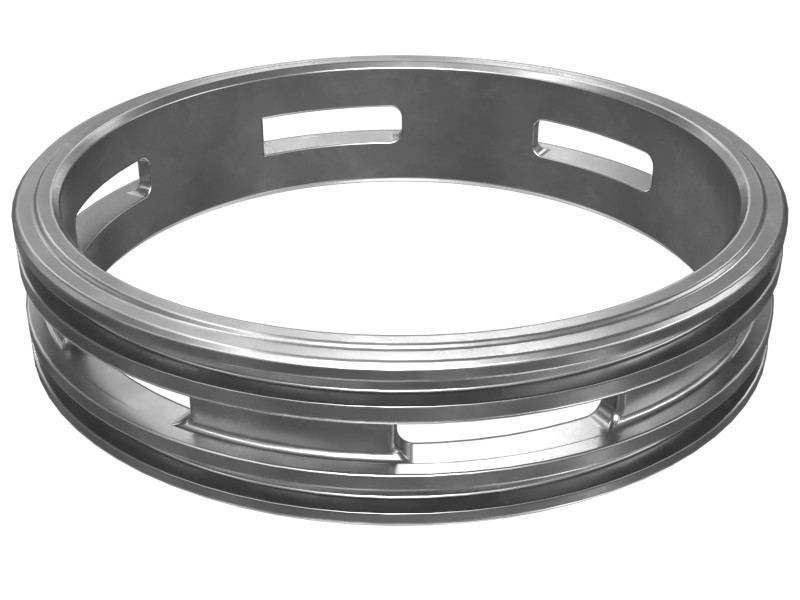

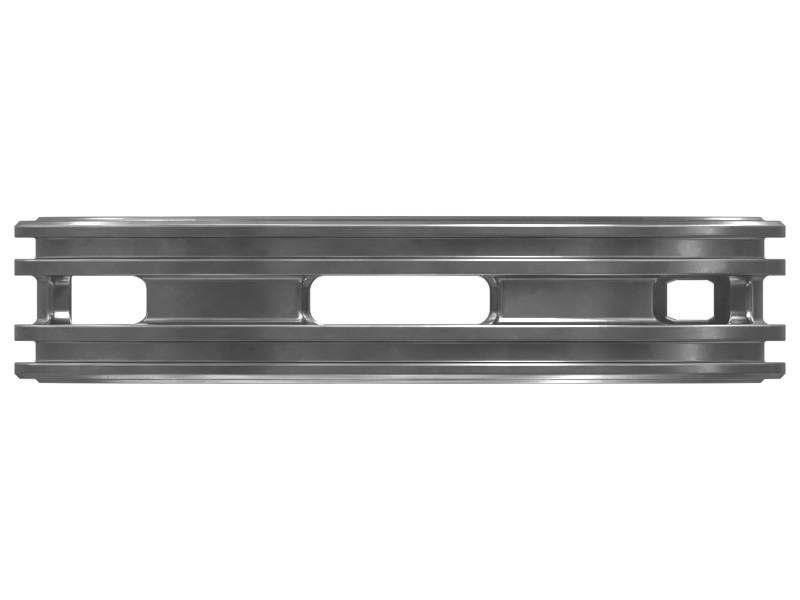

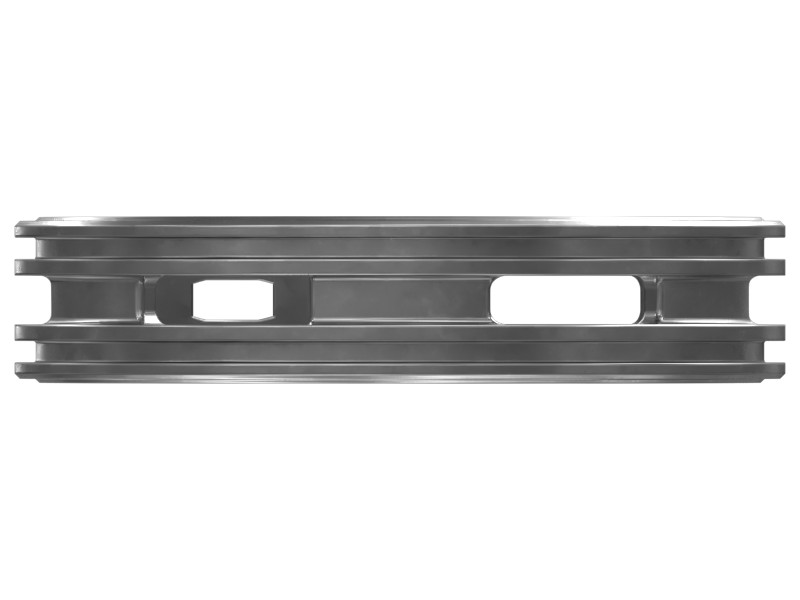

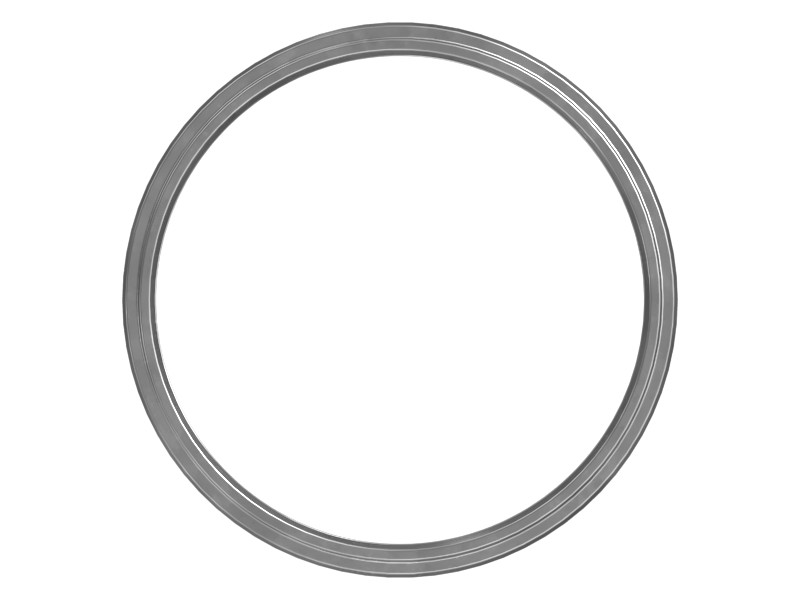

6P-7704 134 mm ID Ring Carrier for Planetary Transmissions
Cat® 134 mm ID Ring Carrier for Planetary Transmissions
Description
The carrier is used to retain the oil seal rings in Cat transmissions.
Features
- Material: Cast iron
- Ring Groove Diameter (2X): 143.38 mm (5.644 in)
- Ring Groove Width (2X): 4.29 mm (0.168 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Gray (Flake) Iron |
|---|---|
| Material Description | Cast Iron |
| Outside Diameter | 151.71 mm (5.972 in) |
| Inside Diameter | 133.922 mm (5.272 in) |
| Thickness | 32.55 mm (1.281 in) |
Compatible Equipment
- Track Loaders: 816F, 972
- Cold Planers: PL87, PL72, PL83
- Compactors: 816, 815, 814
- Dozers: D8T, D6R II, D6R, D4E, D6T, D8N, D7R II, D7R, D7H, D8R, D6R LGP, D6R III, D6T LGP, D6R XL, D8
- Excavators: 3516B, 3508B
- Wheel Loaders: 980M, 972M
Additional information
| Machine Model | 3508B, 3516B, 814, 815, 816, 816F, 972, 972M, 980M, D4E, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7H, D7R, D7R II, D8, D8N, D8R, D8T, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Compactors, Cold Planers |
| Part Source | Genuine OEM |
