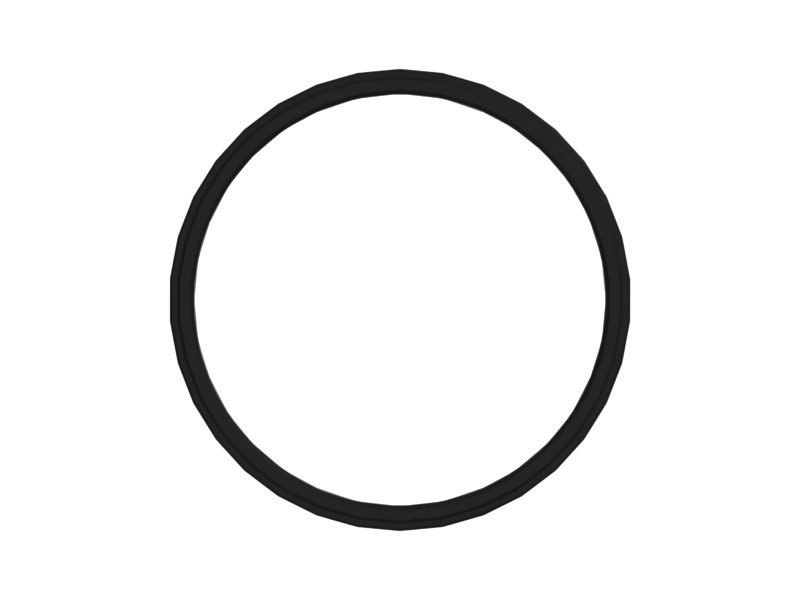

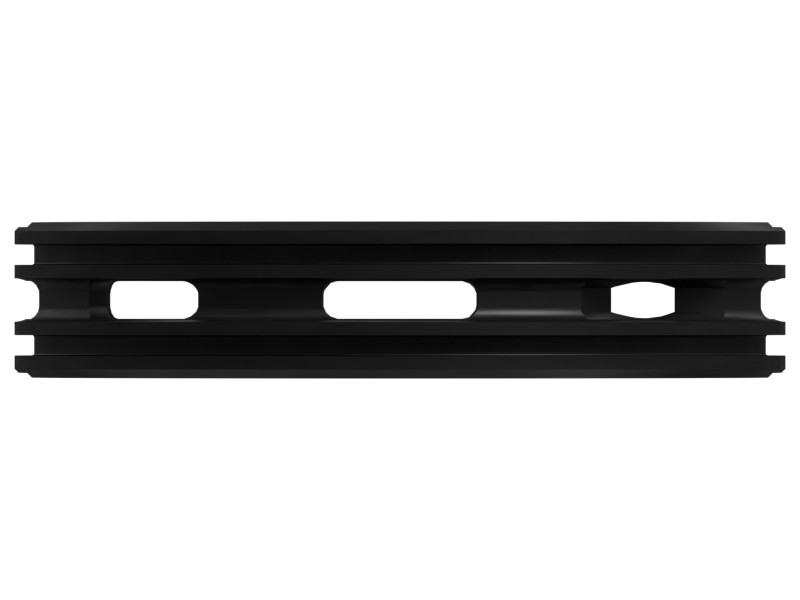

6P-7564 142 mm ID Ring Carrier
Cat® rotating housing ring carrier, ID x OD x length: 142 x 159 x 32 mm
Description
Part number 6P-7564 is secured to the rotating housing and grooved to carry the seal rings in the planetary transmission.
Features
- Cast iron ring carrier
- Inside Diameter: 142 mm (5.590 in)
- Outside Diameter: 159.12 mm (6.264 in)
- Width: 32 mm (1.259 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 142 mm (5.59 in) |
|---|---|
| Outside Diameter | 159 mm (6.26 in) |
| Width | 32 mm (1.25 in) |
Compatible Equipment
- Dozers: D10N, D10T2, D10T, D10R, D9R, D5H, D8L, D9T, D9L, D9N, D9, D10
- Off-Highway Trucks: 740, 735
