Description

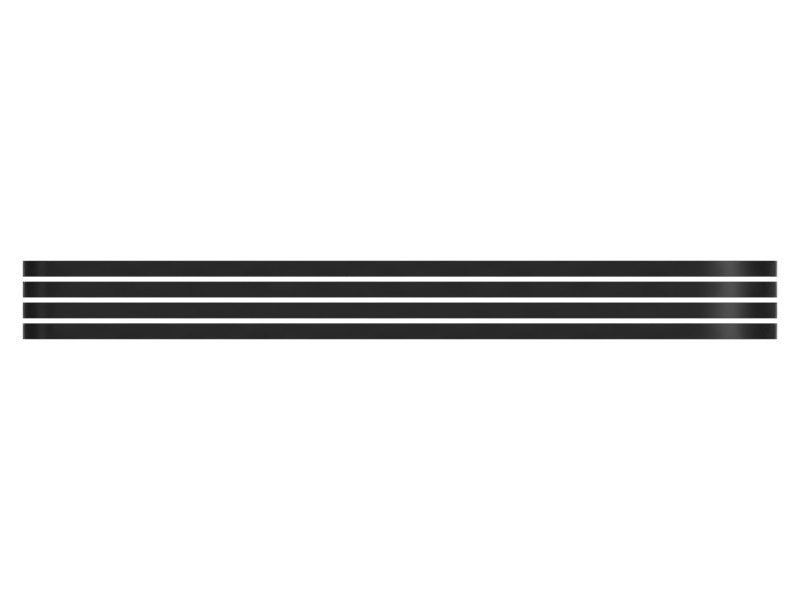

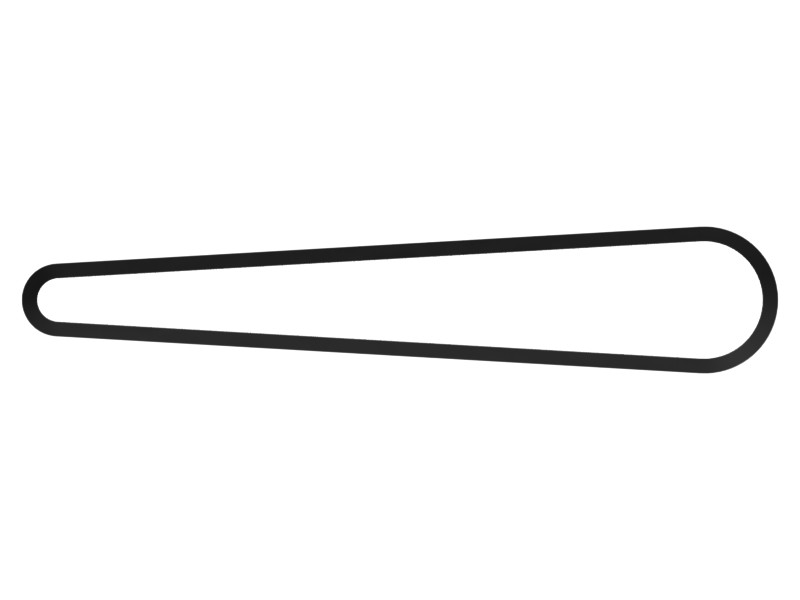

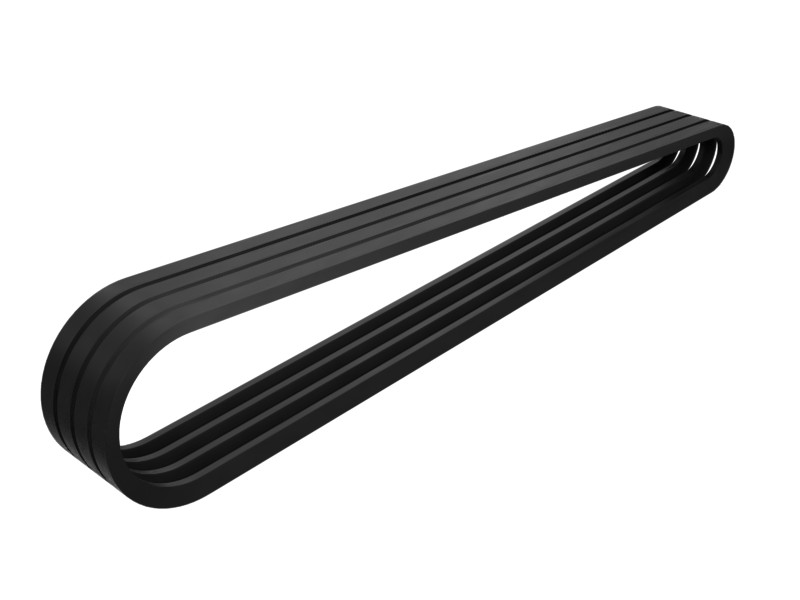

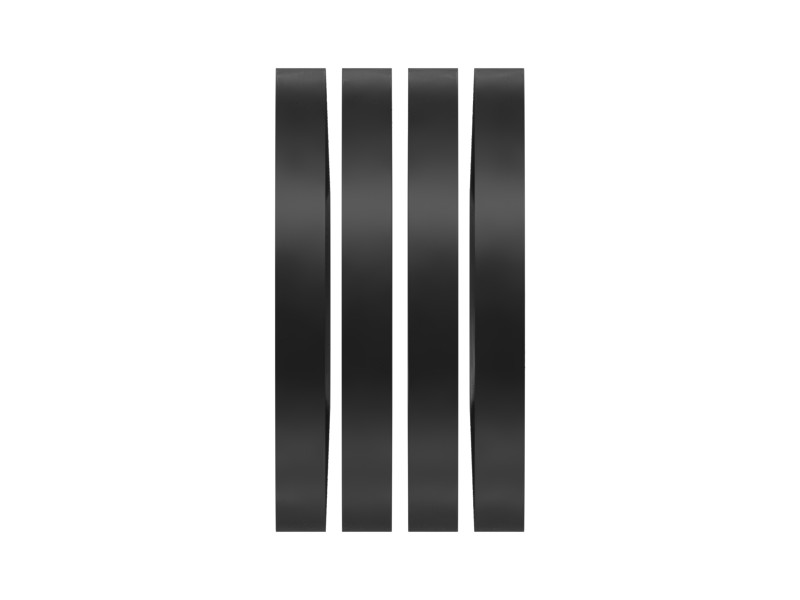

V-Belt Fan Drive Description:
A V-belt fan drive is a power transmission system that uses a wedge-shaped belt to transfer power from a motor to a fan. As the motor rotates, it moves the V-belt and transfers power to the fan, causing the fan to rotate as well.
Features
- Consists of a trapezoidal cross-section that fits into the corresponding groove in the pulley.
- High efficiency with little energy loss.
Applications
V-belt fan drives are commonly used to transfer power from a motor to a fan cost-effectively and reliably, widely used on Cat 1706D, 1706J, 2206F, 2406J, 2506, 2506D, 2506F, 2806, 2806D, 2806F, 3406, 3406B, 3406C, 3406C, 3406E, 3408, 3408B, 3408C, 3408C, 3408E, 3412, 3412, 3412C, 3412C, 3412C, 3412C, 3412E, 3456, C13-, C13B-, C15, C18, C9.3, C9.3B, G3408, G3408, 3408B and G3412 engines (piston); 3406, 3408, 3408B, 3408C, 3408C, 3412, 3412, 3412C, 3412C, C27, C32, G3408, G3412, G3412C, PM3412 and PMC32 generator sets; C13 engine common platform (C13); C15 engine common platform (C15); and C18 engine common platform (C18).
Specifications
| Belt Type | V-Belt |
|---|
Compatible Equipment
- Generator Sets: 3406C, 3406B
- Compactors: C13B
- Engines: C15, C13, C18
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
