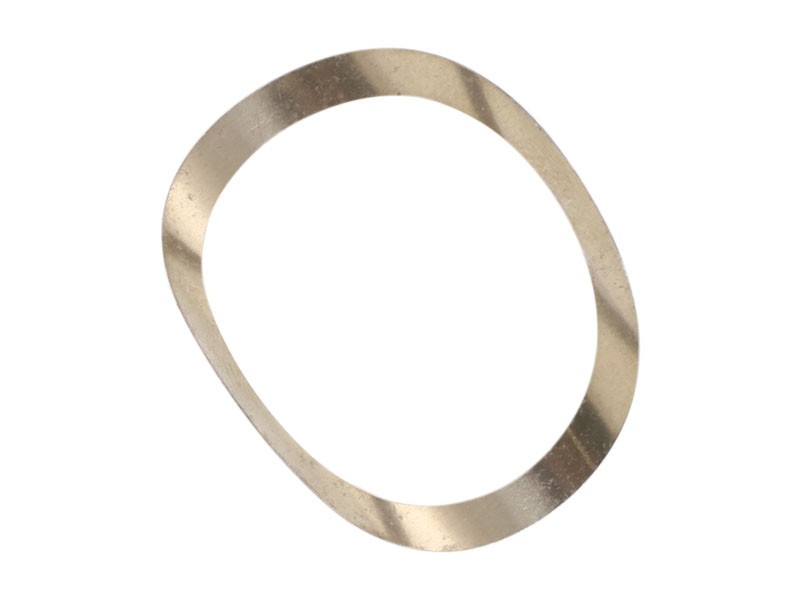

6N-2956 Fuel Injection Pump Spring Washer
Cat® Spring Washer for M24 or 1 Inch Fasteners, ID X OD X Thickness: 28.07 X 37.73 X 0.15 mm
Description
The curved spring washer (such as 6N-2956) has a shallower curvature for better retention of assembly tension.
Cat fastener parts are designed for specific applications based on size, strength, clamping force and past performance. This information is not available to other manufacturers. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one knows your equipment like we do.
Features
- Stainless steel conical spring washer
- Inside Diameter: 28.07 mm (1.11 in)
- Outside Diameter: 37.73 mm (1.49 in)
- Thickness: 0.15 mm (0.006 in)
- For use with M24 or 1 in fasteners
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Applications
Use as needed. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Coating | Not Specified |
|---|---|
| Fits Bolt Size | M24 mm (1 in) |
| Inside Diameter | 28.07 mm (1.11 in) |
| Outside Diameter | 37.73 mm (1.5 in) |
| Thickness | 0.15 mm (0.01 in) |
| Gasket Type | Conical Spring |
Compatible Equipment
- Motor Graders: 140G, 120
- Compactors: 816, 815, 814
- Dozers: D4E, D7G
- Wheel Loaders: 950
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
