Description

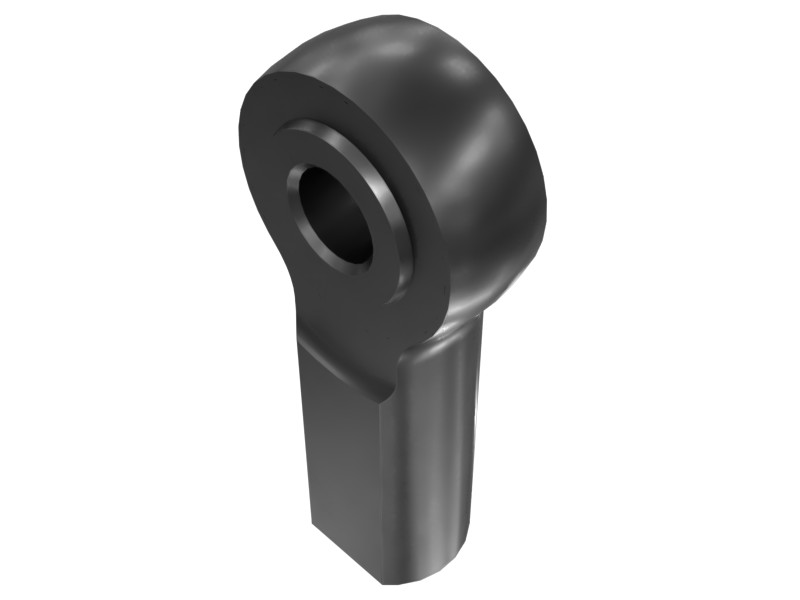

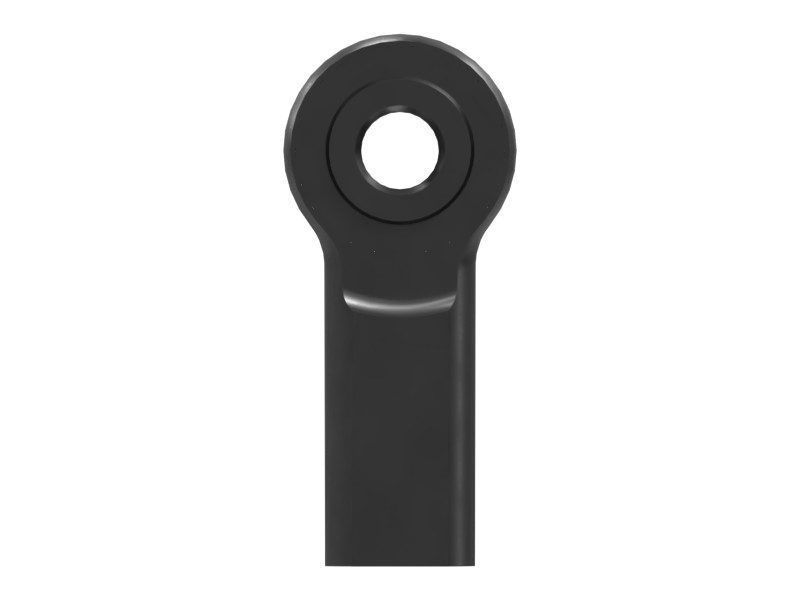

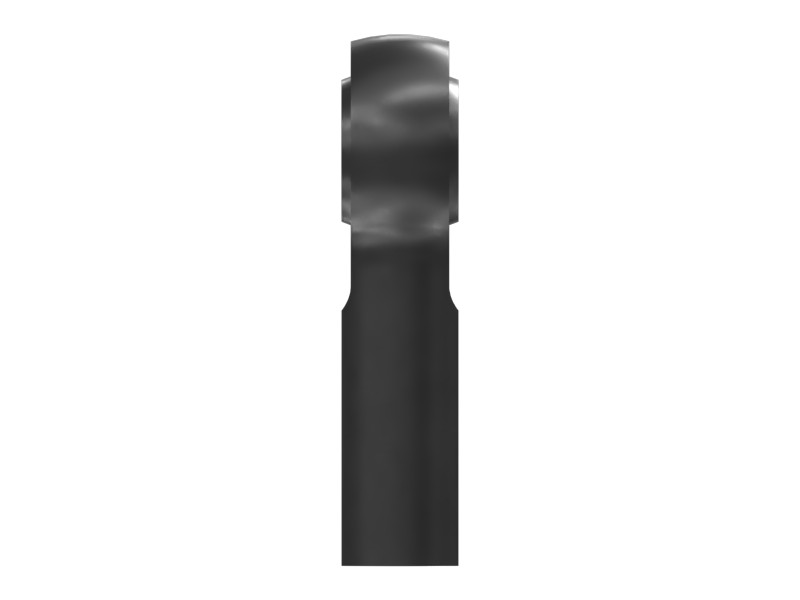

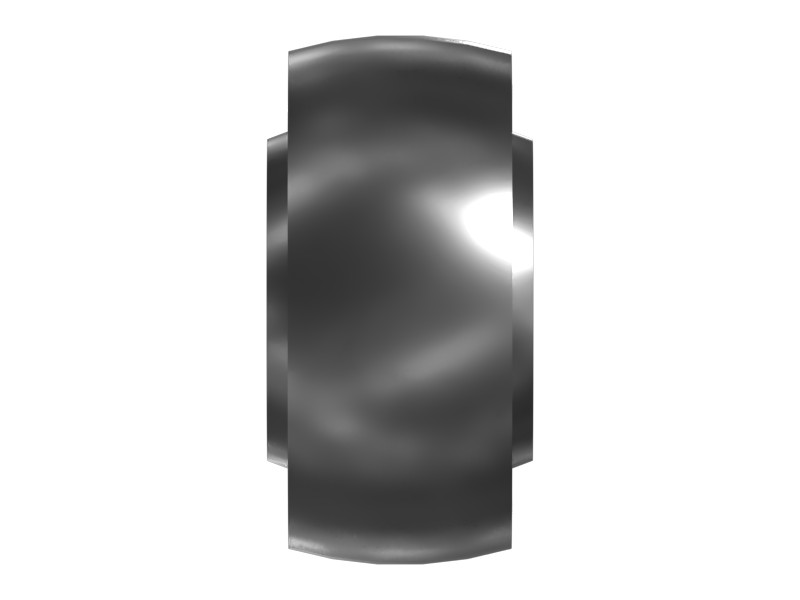

Cat® spherical rod ends offer long service life, low maintenance and high operating reliability. Spherical rod ends provide a mechanical articulating joint that allows oscillation during slow rotation. These joints also accommodate misalignment between the rod end and the connecting shaft. A spherical rod end consists of an eye-shaped head and an integral shank, with the head forming the spherical bearing housing. The bearing reduces friction and provides protection between mating parts. They are intended for low- to medium-speed, high-load applications with low to moderate side thrust.
Features
- High load capacity.
- Easy installation and removal.
- Suitable for heavy-duty static or alternating loads and shock loads.
Applications
Cat spherical rod ends are commonly used in rod and linkage groups and in control assemblies where strength and flexibility are critical.
Specifications
| Remarks | Eye Diameter: 6.35, Pivot Angle: 16, Thread Type: Internal Thread, Thread Direction: Right |
|---|---|
| Height – C | 0.37 in |
| Rod End Diameter – B | 0.89 in |
| Length to Pin Hole – A | 1.33 in |
| Rod End Type | Spherical |
| Rod Diameter | 1/4 in |
| Material Description | Steel Spherical Rod End |
| Thread Length | 16 in |
| Width | 9.52 mm |
| Thread Size | .250 mm |
| Length | 33.8 mm |
| Hole Thread Pitch | 28 |
Compatible Equipment
- Motor Graders: 140H, 140G, 12H, 120H, 16H
- Track Loaders: 963, 953, 816F, 824C
- Cold Planers: PM620, PM622
- Wheel Excavators: IT14G
- Compactors: CB-334D, CB-335D
- Dozers: D10N, D10R, D8L, D9N, D9R, D7G, D9L
- Excavators: 637E, 637G
- Wheel Loaders: 966F, 980G, 992C, 992D, R1300G
- Off-Highway Trucks: 777
Additional information
| Machine Model | 120H, 12H, 140G, 140H, 16H, 637E, 637G, 777, 816F, 824C, 953, 963, 966F, 980G, 992C, 992D, CB-334D, CB-335D, D10N, D10R, D7G, D8L, D9L, D9N, D9R, IT14G, PM620, PM622, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
