6L-5281 Carburetor Air Valve Spring
Cat® Carburetor Air Valve Spring
Fitment data not listed — send us your machine model or serial number to confirm.
Description

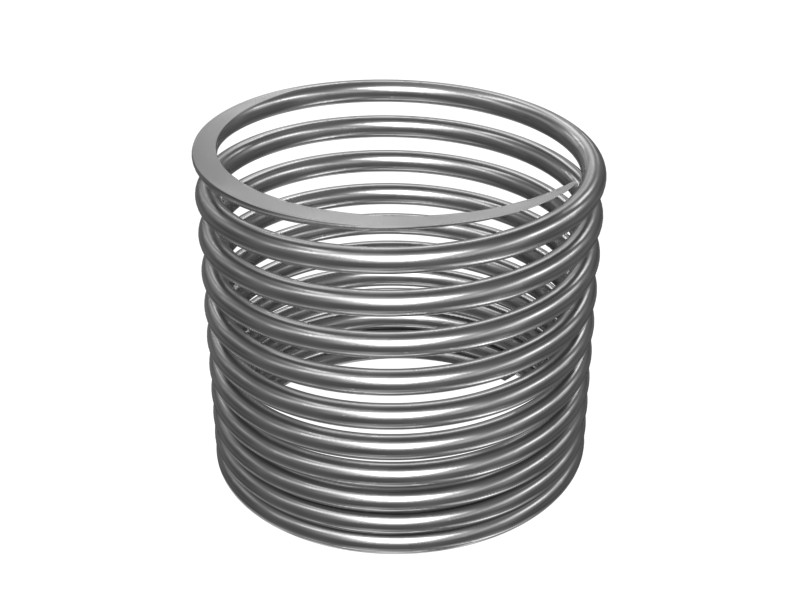

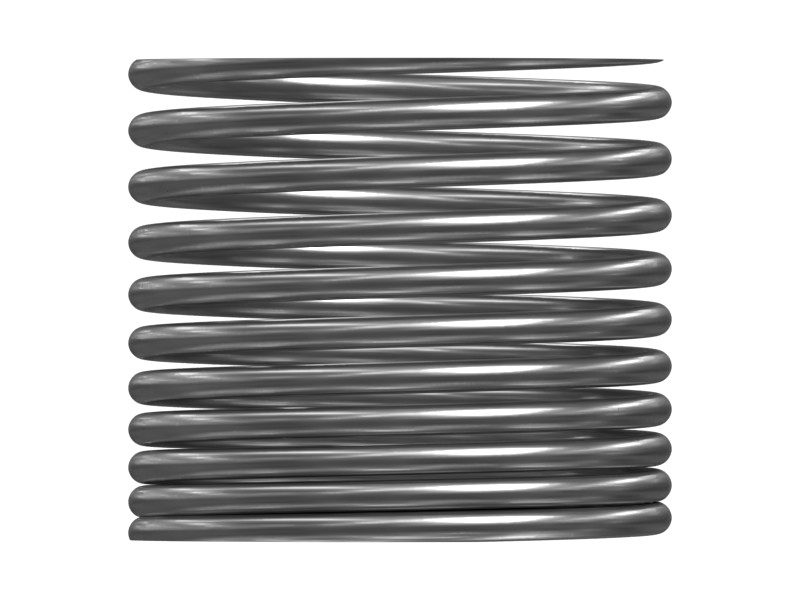

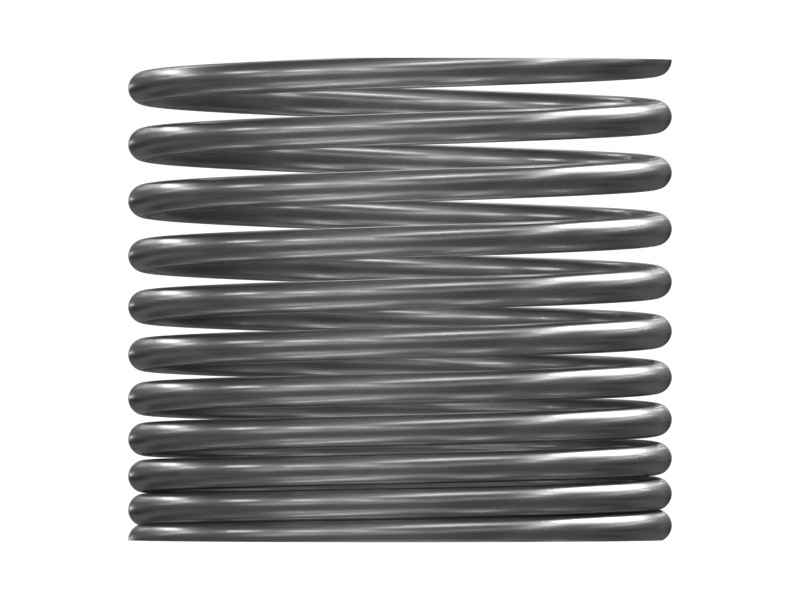

The carburetor air valve spring is used to control the amount of air that enters the carburetor and mixes with fuel before combustion occurs in the engine. It is a coil spring made of premium wire, designed to provide a specific amount of resistance to the opening and closing of the air valve. The spring is typically mounted on the carburetor body and connected to the air valve shaft.
Features
- Air valve spring wire diameter is 1.14 mm.
- Spring provides 9.5 to 10.5 coils.
Applications
The carburetor air valve spring is used to control the opening and closing of the air valve in the carburetor unit.
Specifications
| Material | Alloy Mixed: Metal |
|---|---|
| Height | 12.06 mm (0.48 in) |
| Inside Diameter | 15.75 mm (0.62 in) |
| Length | 52.4 mm (2.06 in) |
| Weight | 0.02 kg (0.05 lb) |
Additional information
| Part Source | Genuine OEM |
|---|
