Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are commonly used in engines and driveline. 12-point head bolts have high fatigue performance and fit designs that do not have enough clearance for hex head bolts.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Coating | Zinc Phosphate + Oil |
| Class or Grade | Cat/ASTM F2882 (170 ksi) |
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
| Thread Size | 0.3125 mm (0.012 in) |
| Bolt Length | 31.75 mm (1 1/4 in) |

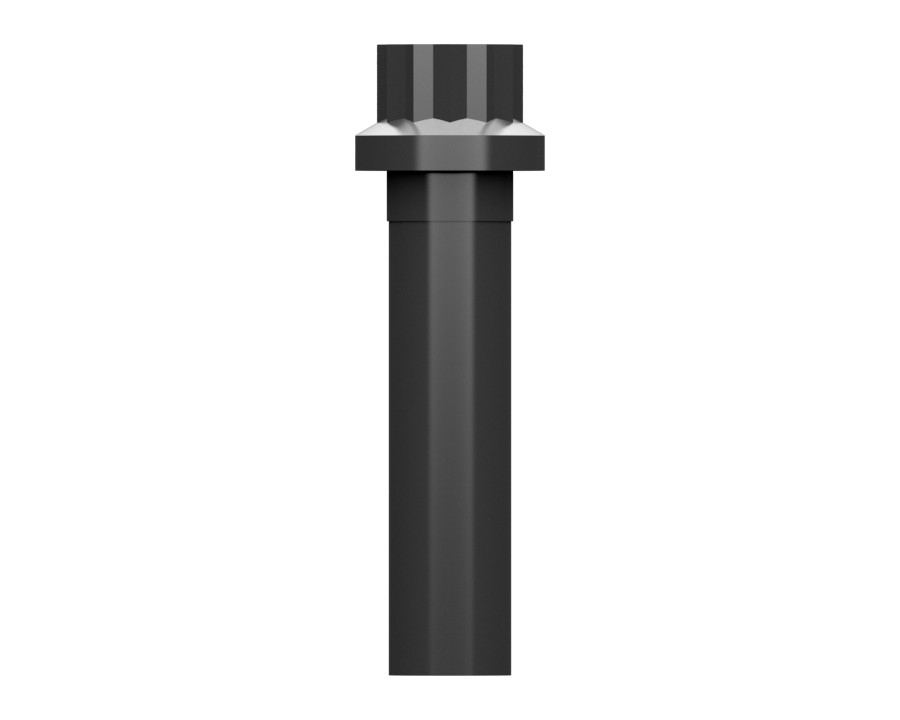

| Bolt Type | 12-Point Head Bolt |
| Handle Length | 3.175 mm (0.13 in) |
| Flange Diameter | 0.47 in |
Compatible Equipment
- Generator Sets: C4.4, 3512B
- Motor Graders: 140G, 16H
- Cold Planers: PL87, TH55-E70, PL72, PL83
- Dozers: D6R, D9R, D6R III, D7H, D6T, D8L, D8T, D9T, D7R II, D7G, D6T LGP, D8N, D7R, D6R II, D9N, D10R, D10N, D9, D8R, D6R XL
- Excavators: 637K, 637E, 637G, 3512C
- Wheel Loaders: 910, R1300G
- Off-Highway Trucks: 772G, 740, 740B, 785, 770G, 771D, 793F, 735, 777
- Asphalt Pavers: AD45
Additional information
| Machine Model | 140G, 16H, 3512B, 3512C, 637E, 637G, 637K, 735, 740, 740B, 770G, 771D, 772G, 777, 785, 793F, 910, AD45, C4.4, D10N, D10R, D6R, D6R II, D6R III, D6R XL, D6T, D6T LGP, D7G, D7H, D7R, D7R II, D8L, D8N, D8R, D8T, D9, D9N, D9R, D9T, PL72, PL83, PL87, R1300G, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
