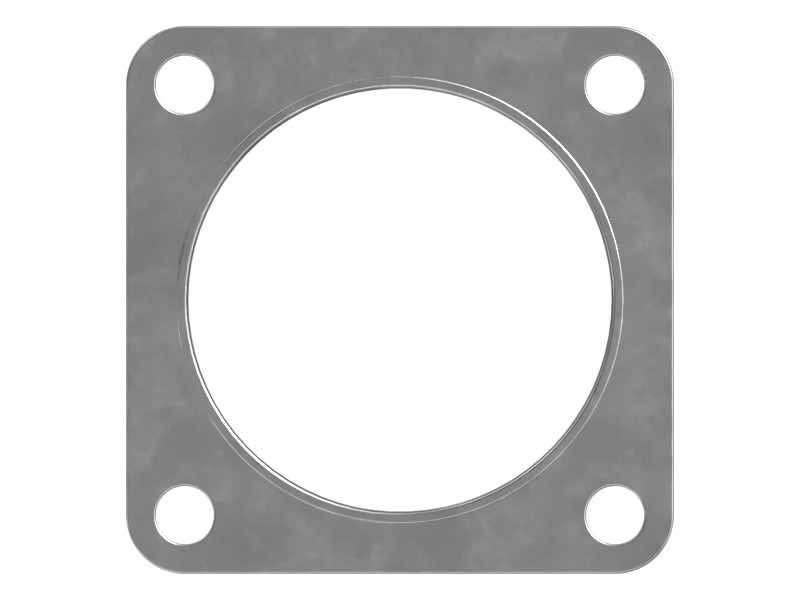

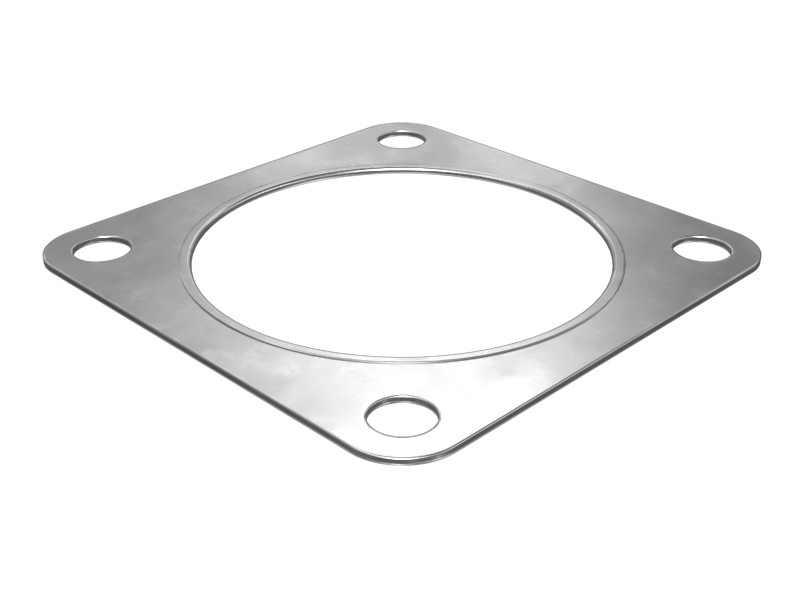

6L-4716 1.59 mm Thick Exhaust Flange Gasket
Cat® 1.59 mm Thick Exhaust Flange Gasket
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Gaskets use compression between the mating parts to achieve a tight, leak-free seal. Cat gaskets are designed with the right combination of material and form to deliver the desired performance for your application.
Specifications
| Type | Square-Rectangular |
|---|---|
| Style | Jacket |
| Material | Steel/Graphite |
| Inside Diameter | 103.1 mm (4.06 in) |
| Length | 133.2 mm (5.24 in) |
| Width | 133.2 mm (5.24 in) |
| Thickness | 2.0 mm (0.08 in) |
| Hole Size | 14.3 (4X) mm (0.56 (4X) in) |
Additional information
| Part Source | Genuine OEM |
|---|
