Description

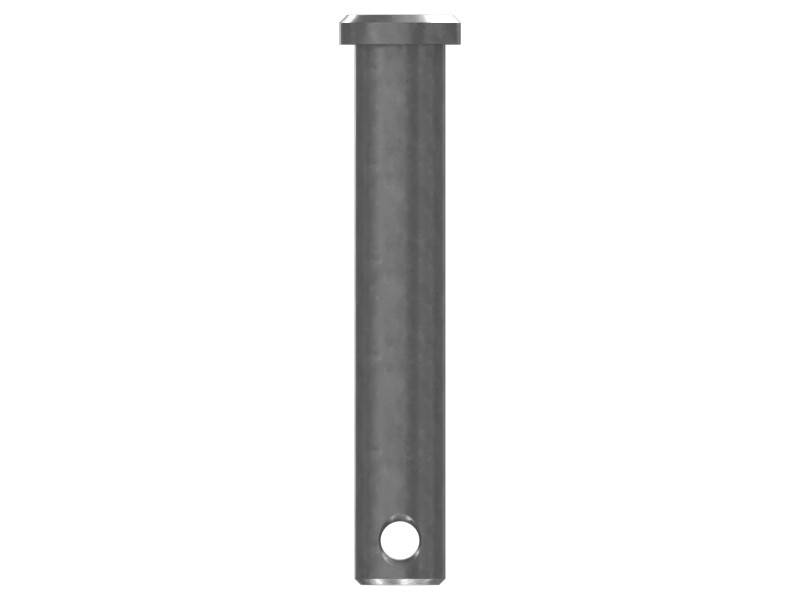

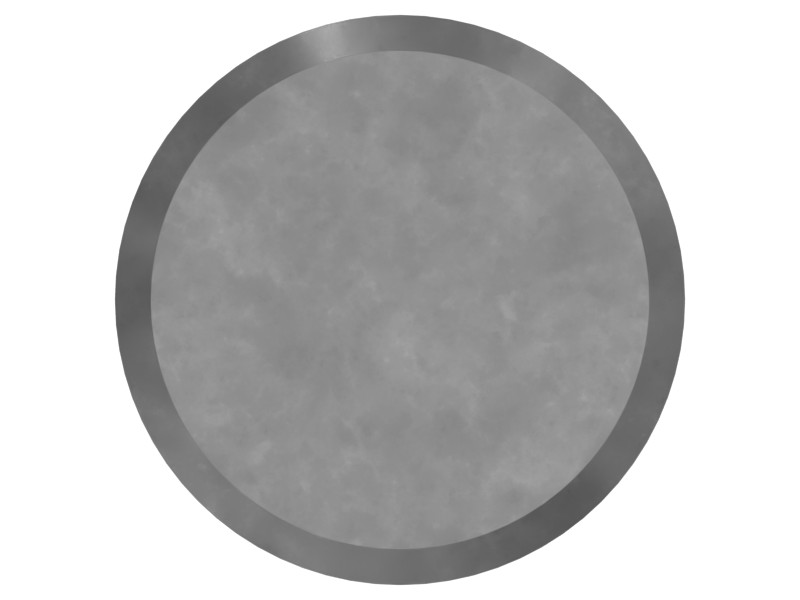

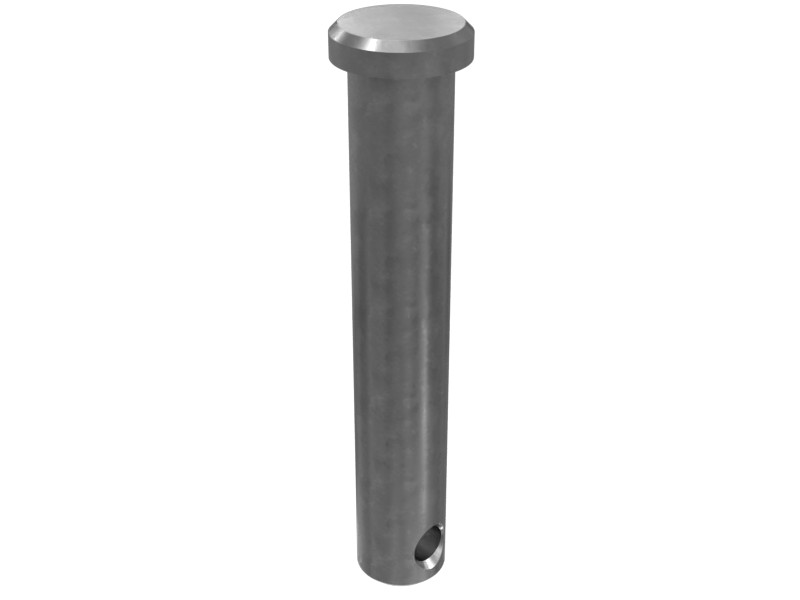

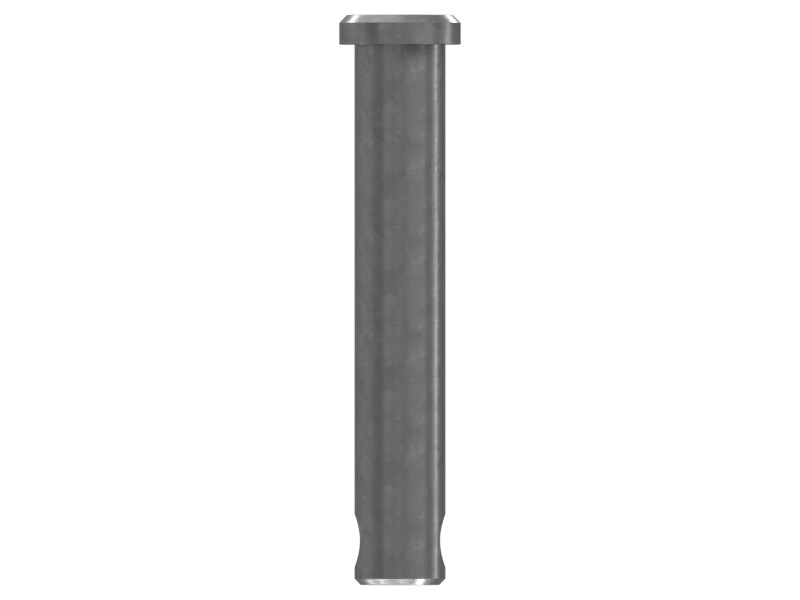

A clevis pin is a solid cylindrical pin with a flat cylindrical head on one end and a chamfer on the opposite end. Cross-hole clevis pins are secured with cotter pins, and grooved pins are secured with retaining rings.
Features
- Pin Type: Cross Hole
- Hardened steel pin
- Pin Diameter: 9.52 mm (0.3748 in)
- Pin Length: 57 mm (2.244 in)
- Head Diameter: 12.7 mm (0.5 in)
- Head Height: 3 mm (0.118 in)
Applications
Cat hardened linkage pins are designed for situations that require superior load-carrying capacity, strength and wear resistance, extending pin joint life. Cat linkage pins are the first choice for maximizing performance in demanding applications. They are designed to work with mating sleeve bearings.
Specifications
| Material | Alloy Zinc |
|---|---|
| Pin Length | 57 mm (2.244 in) |
| Pin Type | Cross Hole |
| Material Description | Steel |
| Pin Diameter | 9.52 mm (0.375 in) |
| Length | 57 mm (2.244 in) |
Compatible Equipment
- Motor Graders: 120H, 140H, 12H
- Generator Sets: C9, 3406B
- Wheel Excavators: MD6250, MD6310
- Engines: C32, C7, C18
- Compactors: C-9
- Compact Track Loaders: 279D3, 299D3
- Excavators: 3126
- Skid Steer Loaders: 236D3, 242D3, 262D3, 262D, 246D3, 216B3, 289D3, 236B3, 239D3, 272D3 XE, 299D3 XE, 272D3, 249D3, 236D, 246D, 259D3, 279C, 246C, 3126B, 262C
Additional information
| Machine Model | 120H, 12H, 140H, 216B3, 236B3, 236D, 236D3, 239D3, 242D3, 246C, 246D, 246D3, 249D3, 259D3, 262C, 262D, 262D3, 272D3, 272D3 XE, 279C, 279D3, 289D3, 299D3, 299D3 XE, 3126, 3126B, 3406B, C-9, C18, C32, C7, C9, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Compact Track Loaders, Skid Steer Loaders, Motor Graders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
