Description

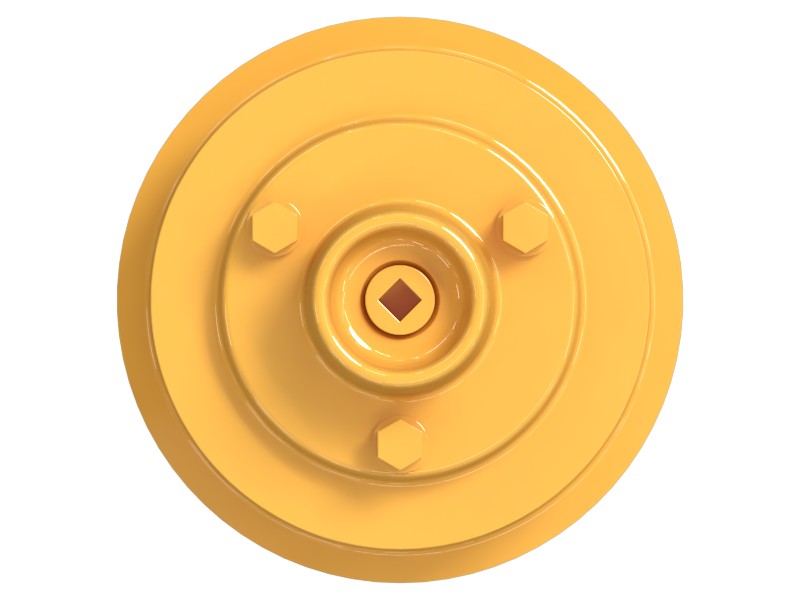

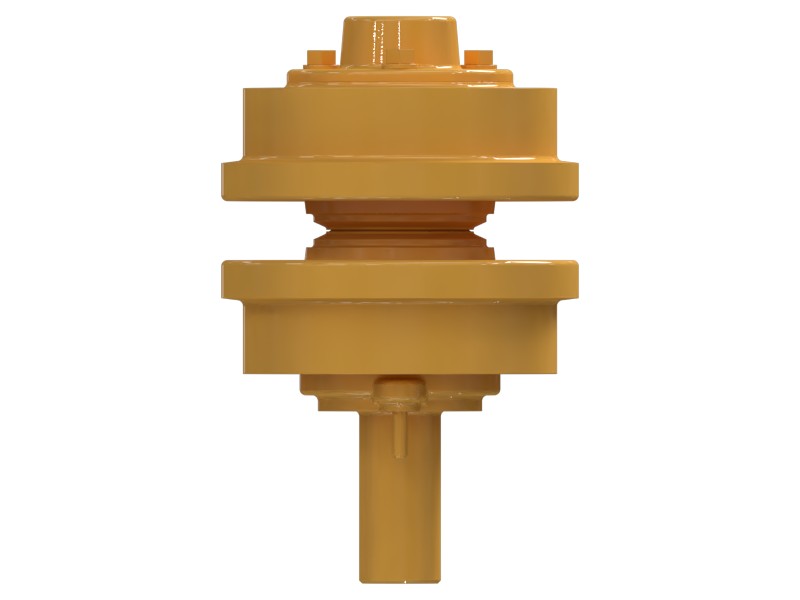

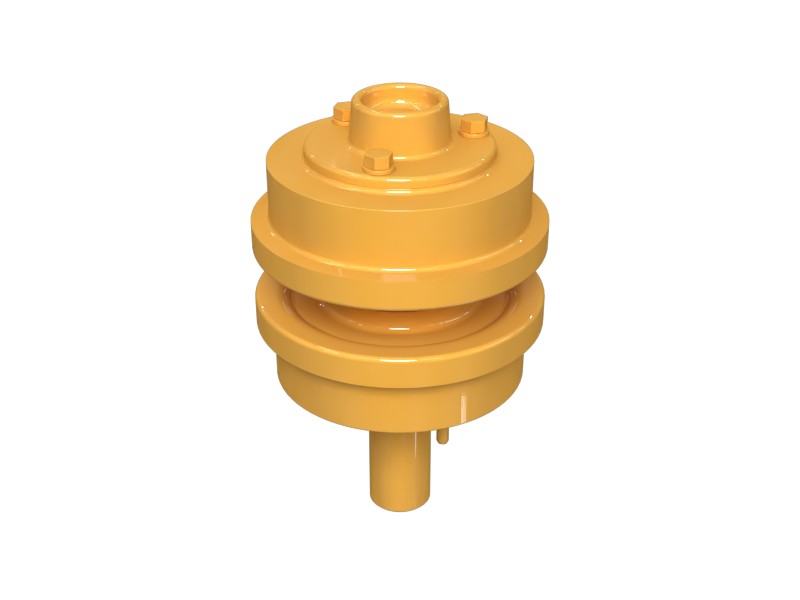

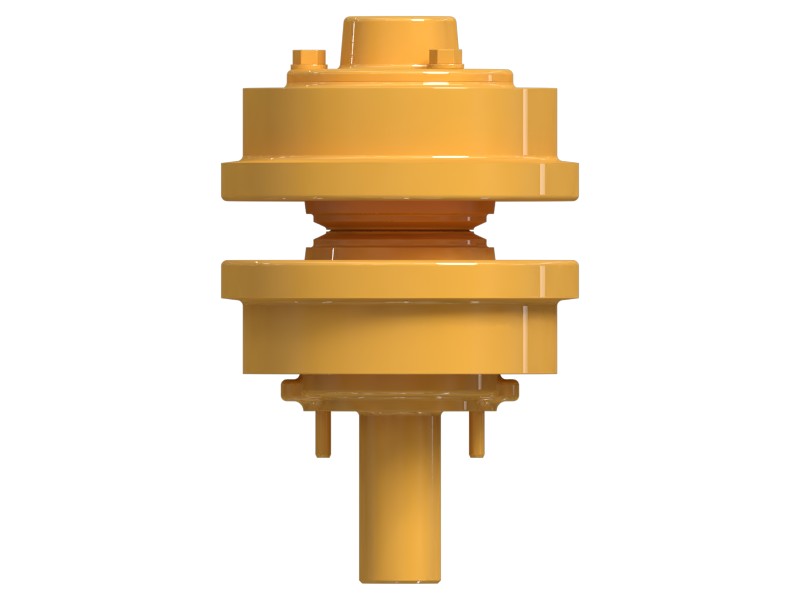

Carrier rollers support and guide the machine on the track and provide track tension support.
Specifications
| Chassis Width | 41.3 mm |
|---|---|
| Length | 41.3 mm (1.626 in) |
| Height | 41.3 mm (1.6 in) |
| Tread Diameter | 159 mm (6.26 in) |
| Shaft Diameter | 41.3 mm (2 in) |
| Flange Outside Diameter | 181 mm (7.126 in) |
| Inside Spacing | 30 mm (1.181 in) |
| Shaft Mounting Length | 63.59 mm (2.504 in) |
| Shaft Outside Diameter | 52.32 mm (2.06 in) |
| Tread Outside Diameter | 159 mm (6.26 in) |
| Outside Spacing | 144.5 mm (5.689 in) |
| Material | Oil Fluid |
| Flange Diameter | 181 mm (7.13 in) |
| Diameter | 1.6 in |
| Undercarriage System | HD |
| Mounting Type | Cantilever |
| Application | Standard Application |
| UC System – Designed For | Heavy Duty |
Compatible Equipment
- Track Loaders: 953
- Dozers: D4E, D5N, D5G, D5M, D5K2 XL, D5K LGP, D5K XL
