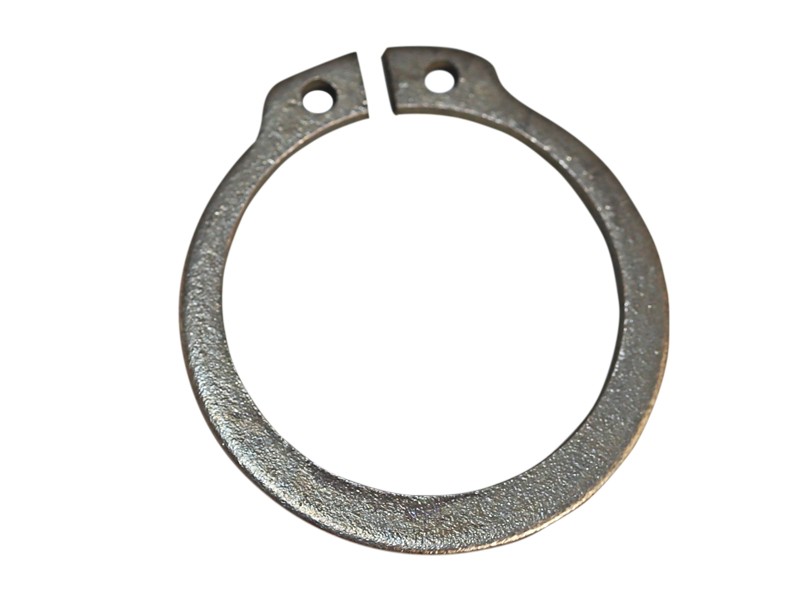

6K-7909 32 mm Free Diameter External Retaining Ring
Cat® External Retaining Ring for Planetary Transmissions and Work Tool Positioners
Description
Cat® retaining rings install in a machined groove in a housing/bore (internal) or on a shaft (external), providing high strength and long service life in a wide range of applications. Cat retaining rings are manufactured to precise specifications to be durable, reliable and efficient. You can count on this "Built For It" product to help you get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
- ROHS compliant
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Material | Alloy Mixed: Metal |
|---|---|
| Remarks | Free Diameter: 32.21, Radial Wall: 5.26, Lug Height: 5.8, Groove Width: 2.69, Groove Diameter: 32.79, Shaft Diameter: 34.9 |
| Thickness | 2.36 mm |
| Material Description | Steel Retaining Ring |
| Cross Hole | Yes |
Compatible Equipment
- Cold Planers: TH55-E70, PL72, PL87
- Compact Track Loaders: 299D3
- Dozers: D11, D8L, D9
- Excavators: 3516E
- Off-Highway Trucks: 777, 785, 777D, 785D, 793D, 777E, 789D, 793F, 793, 789
- Skid Steer Loaders: 299D3 XE
Additional information
| Machine Model | 299D3, 299D3 XE, 3516E, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, D11, D8L, D9, PL72, PL87, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Compact Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Cold Planers |
| Part Source | Genuine OEM |
