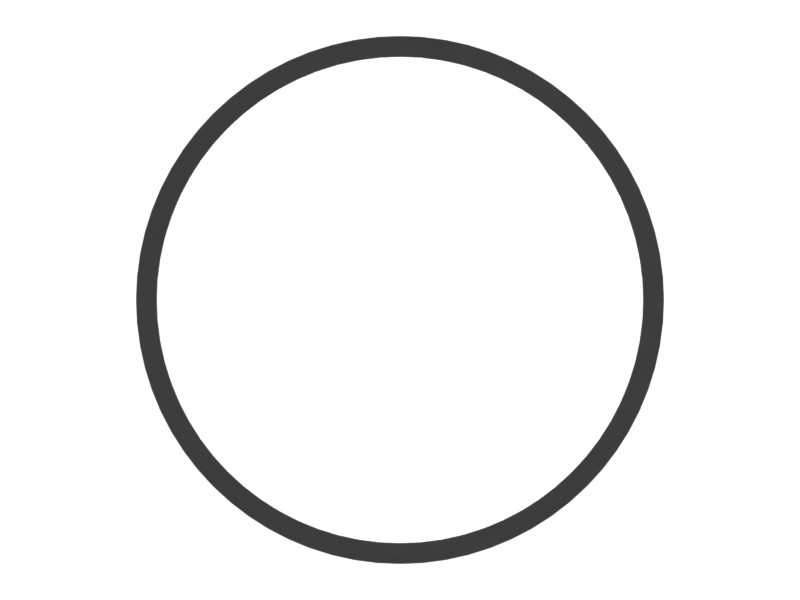

6J-5731 69.61 mm ID Rubber Support Ring
Cat® 1.09 mm cross-section height rubber backup ring covers O-rings and withstands pressure in the hydraulic system.
Description
Backup rings can prevent seal extrusion in high-pressure applications and can also be used to protect the life of the overall sealing system under sudden pressure changes.
Features
Cat® backup rings are designed together with the elastomeric seal and mating components and contribute greatly to the life and performance of sealing systems in high-pressure applications.
Backup ring dimensions strictly follow tight tolerances, ensuring they properly bridge the seal groove and the mating surfaces. Materials are selected based on their pressure resistance and wear resistance.
Backup rings are available in two types: closed rings and split rings. Split rings are used to ensure ease of installation.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
Backup rings are used in high-pressure static and dynamic sealing applications, for example, hydraulic pumps, valves, and engine systems.
Specifications
| Material | Urethane Rubber |
|---|---|
| Dash Size | 232 in |
| Inside Diameter | 69.6 mm (2.74 in) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Material Description | Polyurethane rubber has excellent abrasion and cut resistance and can be used with petroleum-based lubricants and hydraulic oil at moderate temperatures. Never use with water-soluble fluids. |
| Cross-Section Width | 1.1 mm (0.04 in) |
| Cross-Section Height | 2.9 mm (0.11 in) |
Compatible Equipment
- Motor Graders: 120, 18, 16, 14, 12H, 120H, 140G, 14M, 160K, 140H, 16M, 140K, 16M3, 12K
- Wheel Excavators: MD6250, MD6200, MD6310
- Compactors: CS-583D, CS-533C
- Dozers: D5K XL, D3K2 LGP, D3G, D5K2 XL, D4G, D5G, D5K LGP, D1
- Excavators: 637K, 637E, 637G, 657G, 416F2, 416E
- Wheel Loaders: 950, 910
- Off-Highway Trucks: 740, 772G, 770G, 771D, 730, 740B, 735, 725
Additional information
| Machine Model | 120, 120H, 12H, 12K, 14, 140G, 140H, 140K, 14M, 16, 160K, 16M, 16M3, 18, 416E, 416F2, 637E, 637G, 637K, 657G, 725, 730, 735, 740, 740B, 770G, 771D, 772G, 910, 950, CS-533C, CS-583D, D1, D3G, D3K2 LGP, D4G, D5G, D5K LGP, D5K XL, D5K2 XL, MD6200, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors |
| Part Source | Genuine OEM |
