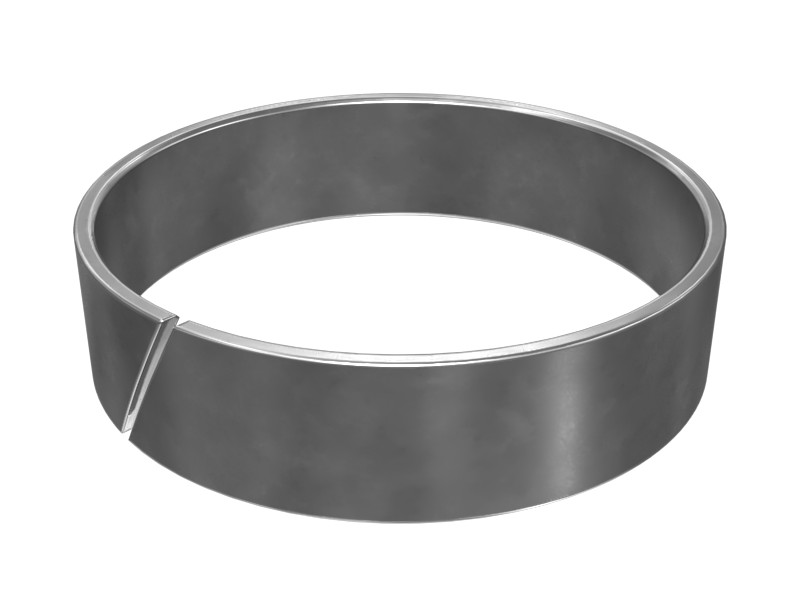

6J-2797 101.6 mm OD Piston Guide Ring

Description

Cat wear rings guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seals.

Features

Material: Type 6 Nylon

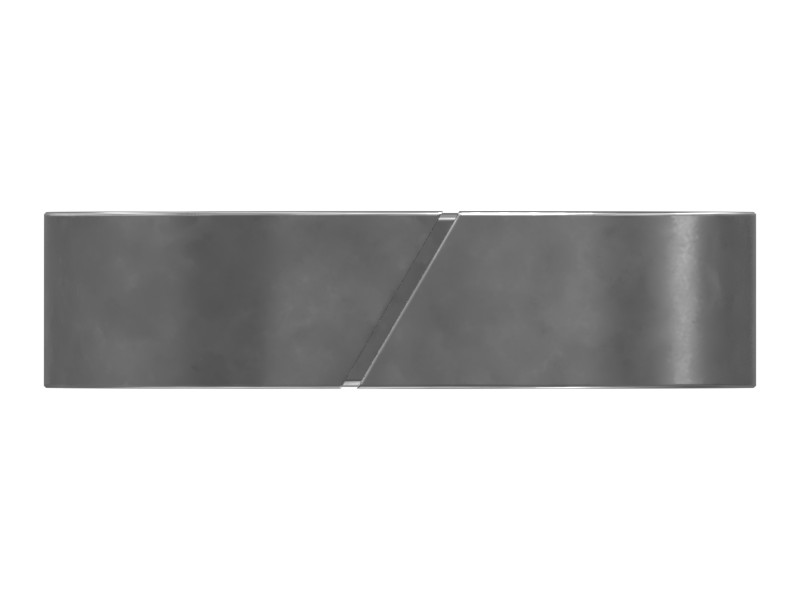

30° cut angle

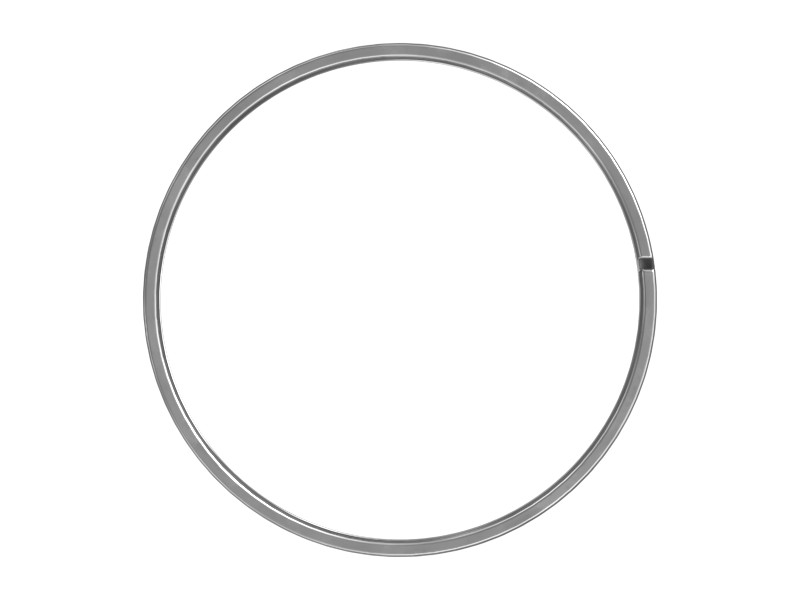

Outside Diameter: 101.6 mm
Thickness: 3.2 mm

Applications

Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Material	Mixed Plastic Plastic
Inside Diameter – B (+/- 0.08 in)	95.02 mm (3.74 in)
Width – A (+/- 0.762 mm)	25.30 mm
Width – A (+/- 0.03 in)	1.00 in
Overall Length	25.4 mm (1 in)
Thickness	3.2 mm (0.13 in)
Material Description	Nylon Type 6
Outside Diameter	101.6 mm (4 in)

Compatible Equipment

Motor Graders: 14M, 16M, 14, 140G, 12H, 16, 140K, 140H, 16H, 160K, 16M3, 12K, 18
Track Loaders: 953, 953K, 816F, 953D
Cold Planers: PL72, PL83, PL87
Compactors: 815, 816, 814
Dozers: D4, D9R, D8T, D5M, D5H, D6M, D6T LGP, D6T, D6K2, D6N, D9, D7E, D10, D8, D6R III, D9N, D8R, D5N, D9T, D8N, D7R II, D11T, D11R, D10T2, D11, D10T, D11N, D10N, D10R
Excavators: 330D L, 345C, 385C L, 365C L, 330C, 330C L, 325B L, 345C L, 3508B, 385B, 365B, 336D
Wheel Loaders: 950H, 910, 966F, 980G, 950, 980H, 938M, 924K, 926M, 938K, 988H, R1600H, R1700G, R1700K, 988G, R1300G
Asphalt Pavers: AD30

Machine Model	12H, 12K, 14, 140G, 140H, 140K, 14M, 16, 160K, 16H, 16M, 16M3, 18, 325B L, 330C, 330C L, 330D L, 336D, 345C, 345C L, 3508B, 365B, 365C L, 385B, 385C L, 814, 815, 816, 816F, 910, 924K, 926M, 938K, 938M, 950, 950H, 953, 953D, 953K, 966F, 980G, 980H, 988G, 988H, AD30, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D4, D5H, D5M, D5N, D6K2, D6M, D6N, D6R III, D6T, D6T LGP, D7E, D7R II, D8, D8N, D8R, D8T, D9, D9N, D9R, D9T, PL72, PL83, PL87, R1300G, R1600H, R1700G, R1700K
Equipment Type	Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers
Part Source	Genuine OEM

Machine Model

12H, 12K, 14, 140G, 140H, 140K, 14M, 16, 160K, 16H, 16M, 16M3, 18, 325B L, 330C, 330C L, 330D L, 336D, 345C, 345C L, 3508B, 365B, 365C L, 385B, 385C L, 814, 815, 816, 816F, 910, 924K, 926M, 938K, 938M, 950, 950H, 953, 953D, 953K, 966F, 980G, 980H, 988G, 988H, AD30, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D4, D5H, D5M, D5N, D6K2, D6M, D6N, D6R III, D6T, D6T LGP, D7E, D7R II, D8, D8N, D8R, D8T, D9, D9N, D9R, D9T, PL72, PL83, PL87, R1300G, R1600H, R1700G, R1700K

Equipment Type

Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers

Part Source

Genuine OEM

6J-2797 101.6 mm OD Piston Guide Ring
