Description

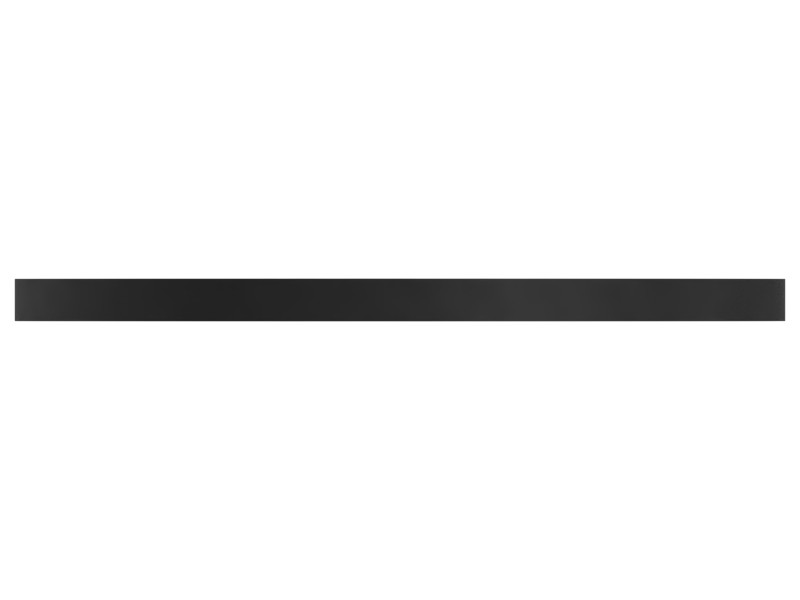

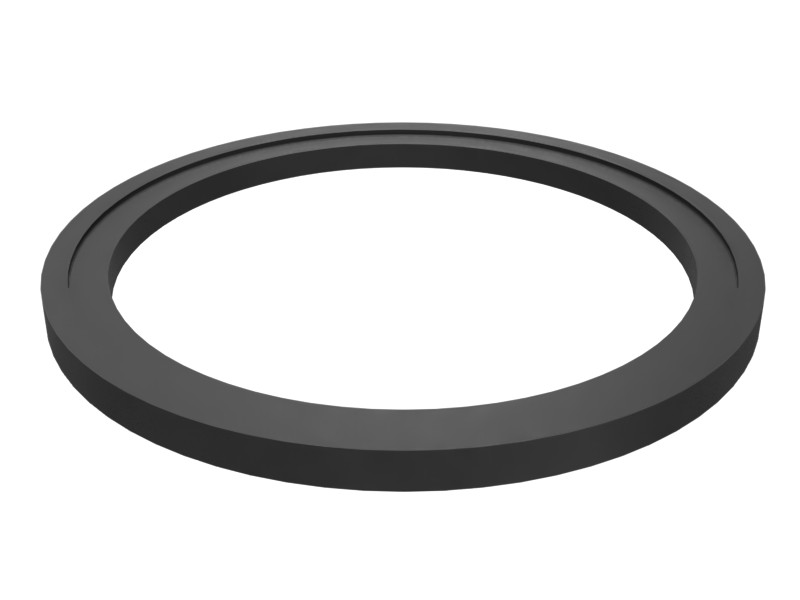

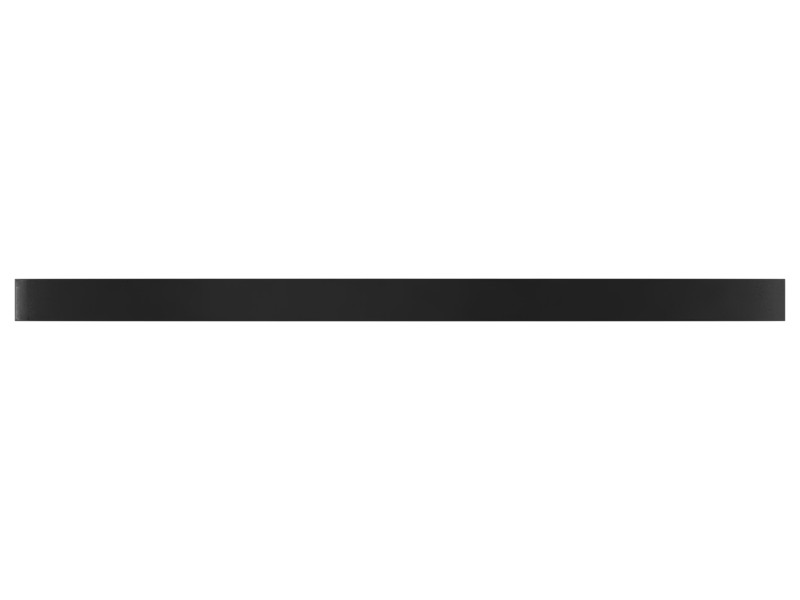

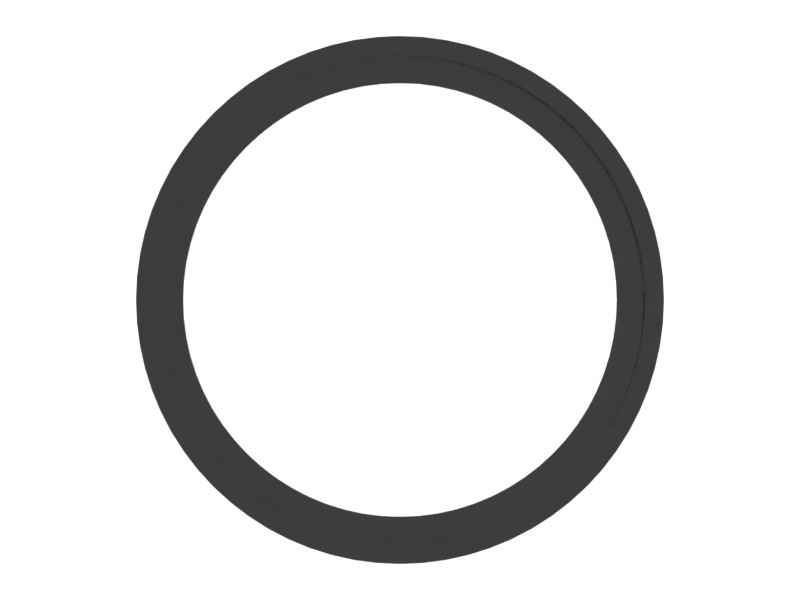

A two-piece seal consisting of a piston ring and an expander, used to prevent oil from flowing between the rod end and the cover end of the cylinder. The piston seal ring is usually made of Teflon, and nylon material can be selected when the pressure is greater than 3000 psi (20670 kPa). Expanders of various shapes are made of nitrile rubber.
Specifications
| Groove Width – A (+/- 0.002 in) | 0.19 in |
|---|---|
| Seal Shape | Type 1 |
| Groove Diameter – B (+/- 0.003 in) | 2.71 in |
| Groove Diameter – B (+/- 0.0762 mm) | 68.83 mm |
| Groove Width – A (+/- 0.0508 mm) | 4.88 mm |
| Hole Diameter | 82.55 mm (3.25 in) |
Compatible Equipment
- Motor Graders: 140H, 140G, 160K, 12H
- Track Loaders: 963, 953
- Excavators: 416E
- Wheel Loaders: 910
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
