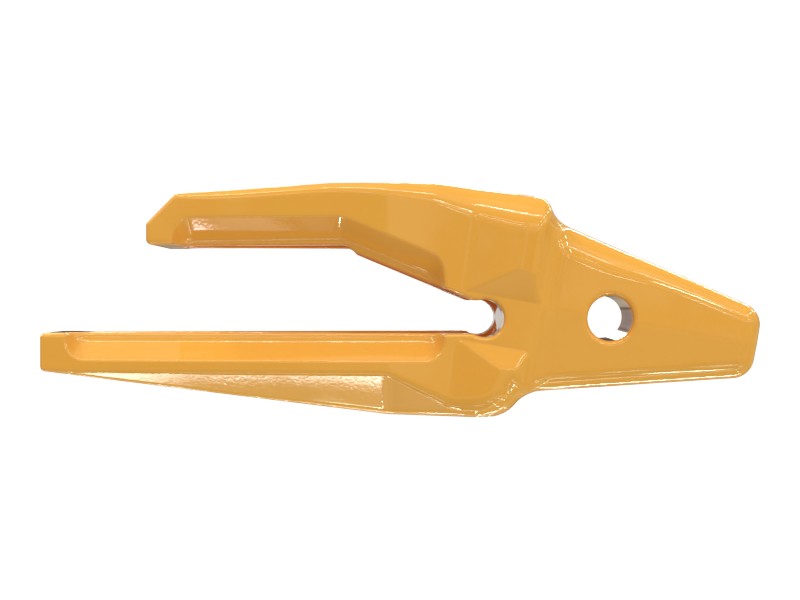

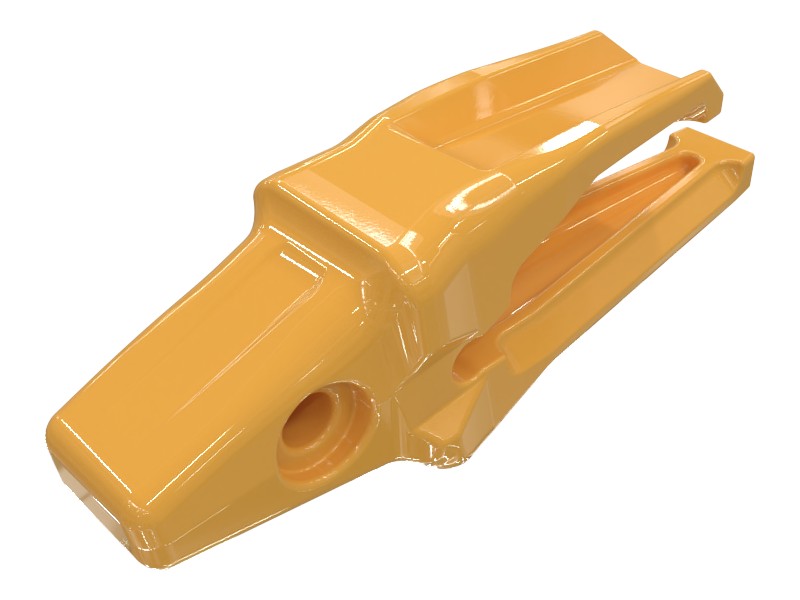

Description
Cat® J Series adapters offer unmatched manufacturing precision to protect the machine's bucket from damage. Our ground engaging tools (G.E.T.) are designed specifically around the inherent characteristics of Cat equipment to deliver consistent, superior protection.
Cat® Corner Shroud Adapters provide excellent corner protection along with all the added penetration benefits of bucket teeth.
Our adapters are tough and long lasting, cast from steel, retaining hardness and providing long wear life so your machine delivers the performance you need. To protect your investment, always choose Genuine Cat GET.
Features
- J400 left bolt-on corner adapter fits a 45 mm cutting edge with a 22.5 degree bevel angle
Applications
- Excavator Buckets
Specifications
| Overall Length | 390 mm (15.354 in) |
|---|---|
| Corner Stop Angle | 4 |
| Base Edge Thickness Grade | 45 |
| Attachment Method | Weld-On |
| Number of Holes | 0 |
| Width | 102 mm (4.016 in) |
| Bevel Angle | 22.5 |
| Hole Spacing | 0 mm |
| Bottom Bar Length | 252 mm (9.921 in) |
| Machine Model | Excavator |
| Attachments | Weld-On |
| Wear Material | Standard Optional |
| Adapter Size | J400 |
| Material | Low Alloy Steel |
| Wear or Durability | Standard |
| Series | J Series |
| Size | J400 |
| Type | Two Strap |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 330D L, 330C L, 325B L, 324D L, 320B, 320C, 330C, 325D L, 336D2 GC, 336E L, 336D L, 320 GC, 320, 325C L, 325B, 329E L, 323D2 L, 324D, 320D L, 325C, 320D2 GC, 336E, 330 L, 330D, 330B, 325D, 336 GC, 320D2 L, 336F L, 329D L, 330D2 L, 336D2 L, 336F L XE, 320D GC, 336F, 323D L, 330D2, 326D L, 330 GC, 326GC, 326, 326 GC, 333 GC, 323, 336E LN, 329E, 336E H, 336E LH, 320D2, 320D, 326D2 L, 326D2, 329D2, 329D, 336D2, 329D2 L, 330, 336D
Additional information
| Machine Model | 320, 320 GC, 320B, 320C, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 323, 323D L, 323D2 L, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326, 326 GC, 326D L, 326D2, 326D2 L, 326GC, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330 L, 330B, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 333 GC, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
