Description
Metric
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Features
- Thread Size: M10
- Material: Steel
- Galvanized
Specifications
| Locking Feature | None |
|---|---|
| Hex Size | 13 mm (0.51 in) |
| Material | Alloy Zinc |
| Class or Grade | ISO 898-1 Class 8.8 |
| Thread Size (Diameter × Pitch) | M10x1.5 mm |
| Thread Size | M10 mm (0 in) |
| Thread Direction | RH |
| Bolt Length | 30 mm (1.18 in) |

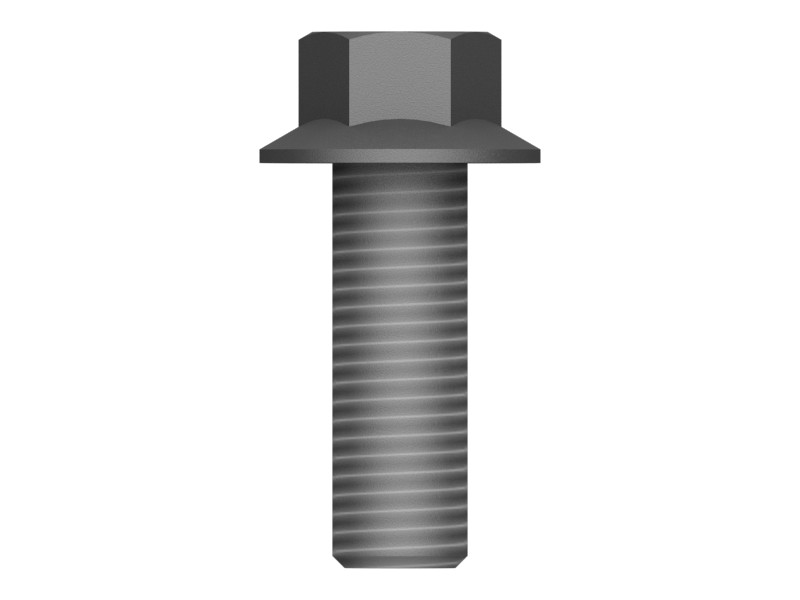

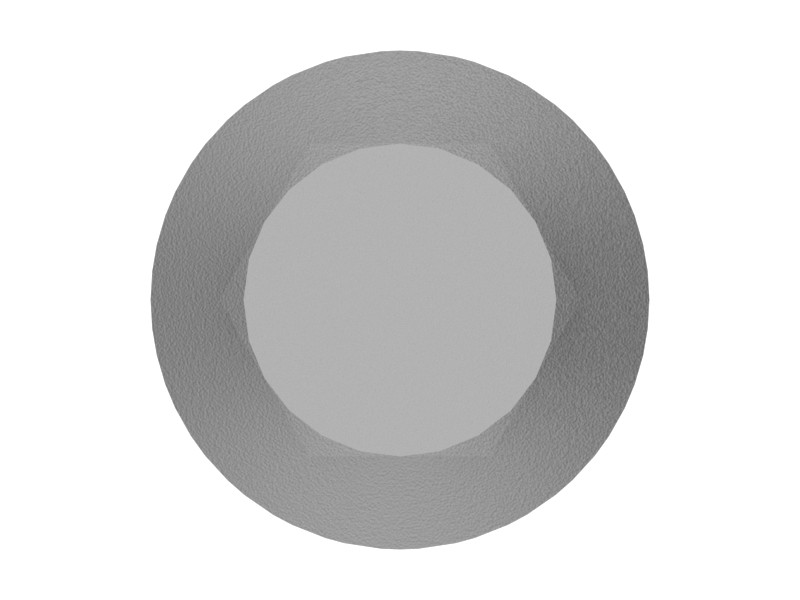

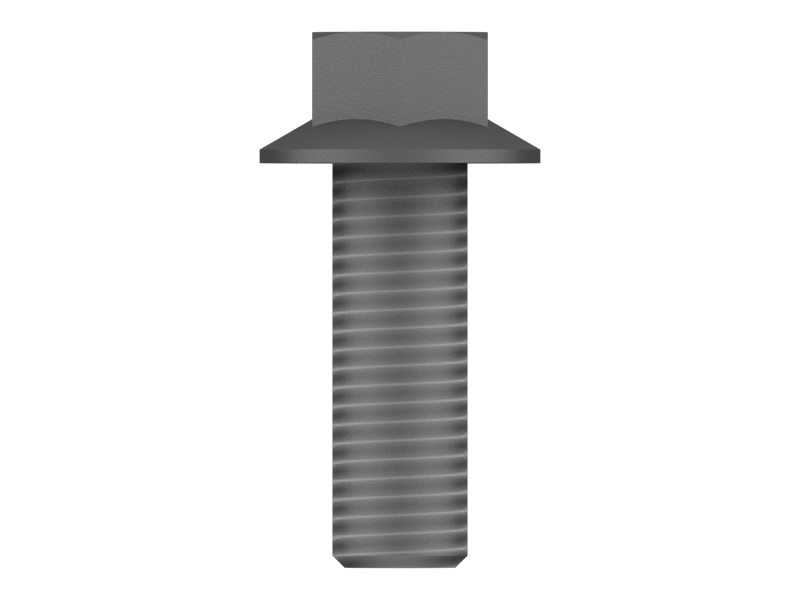

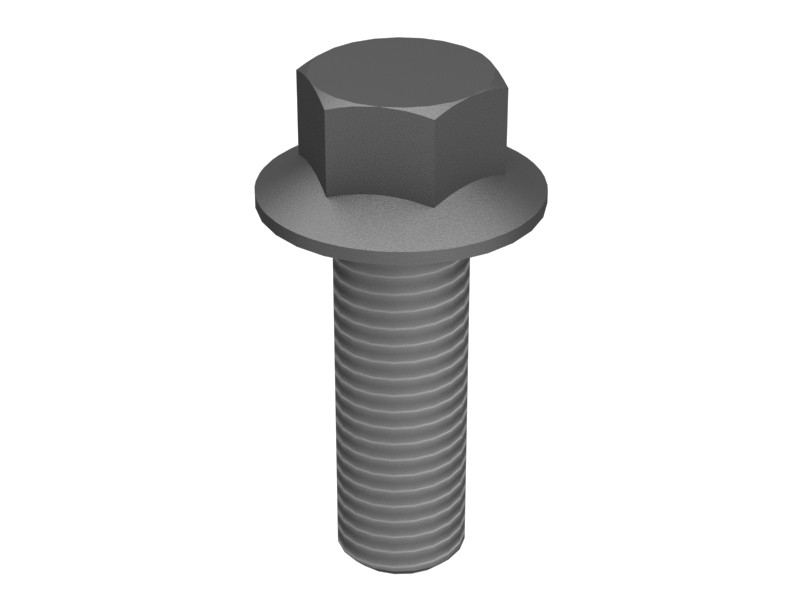

| Bolt Type | Hex Flange Head Bolt |
| Coating | Zinc |
| Handle Length | 3.75 mm (0.148 in) |
Compatible Equipment
- Generator Sets: C4.4, C7.1, C7.1DE200E, C3.3DE33E0, C3.3DE50E0, C9, C2.2DE18E3, C4.4DE88E0, 3512B
- Track Loaders: 963, 953, 953K, 963K, 953D, 963D
- Cold Planers: TH360B, PL61
- Compactors: CB1.7, CB1.8, CS12 GC, CB2.7 GC, CB2.5 GC, CB16, CS12, CS7, CS-54, CS78B, CW-34, CB-534D, CB-24B, CS-56, CS56B, CS68B, CB-334D, CS54B, CS74B, CW-16, CP56B, CC-34B, CB-14, CC2.7 GC, CP12 GC, CS11, CS79B, CB-66B, CP54B, CS-563E, CB-34B, CB-36B, CB-564D, CB-64B, CB-44B, CB-335D, CP11 GC, CB2.9, CB2.5, CB2.7, 815, 816, 814, CB15, CB13, CB10, CS-54B, CS-533E, CS64B
- Engines: C6.6, C15, C18
- Excavators: 320D2, 329D2 L, 330, 329D2, 326D2, 326D2 L, 320D, 305, 313, 316 GC, 313 GC, 329E L, 318D2 L, 336 GC, 320D L, 313D2 GC, 312D2, 313F L, 330D2, 313D2, 320D GC, 330D2 L, 323D2 L, 312D2 L, 320D2 L, 323, 312F, 329E, 320 GC, 330 GC, 320D2 GC, 312D2 GC, 330GC, 312E, 323D2, 320E, 312C L, 312E L, 326, 312C, 320 GX, 305 CR, 315, 315 GC, 120 GC, 333, 312 GX, 316 GX, 302.7CR, 432, 416F2, 434F2, 428F, 323 GX, 313 GX, 312 GC, 336, XQP200, 303CR, 301.8, 320, 335, 301.6, 323D L, 303.5CR, 315F LCR, 335F LCR
- Asphalt Pavers: AP655F, AP-600D
- Skid Steer Loaders: 226B3, 249D3, 232D3, 216B3, 226D3, 226B, 313D2 LGP, 239D3, 232D, 236D3
- Motor Graders: 120, 140 GC, 316F
- Wheel Excavators: M315D, M322D, M315, M313D, M317D2, M315GC, IT14G, M315D2
- Dozers: D3K2 LGP, D6N, D6K2, D5K2 XL, D4, D5K XL, D5K LGP, D1
- Mini Excavators: 301.7CR, 307, 301.5, 302CR, 310, 305.5 GC, 308
- Wheel Loaders: 950 GC, 950, 910, M314, R1300G, 926M, 938K, 924K, 924HZ, 962L, 924GZ, 928HZ, 928G, 938M, 950L, 966F
