Description
Metric

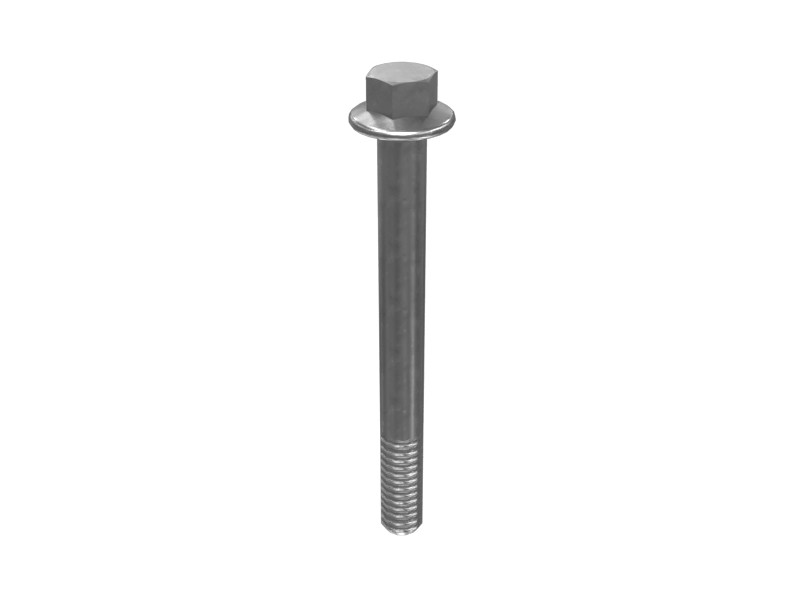

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Features
- Thread Size: M8
- Material: Steel
- Galvanized
Specifications
| Locking Feature | None |
|---|---|
| Thread Direction | RH |
| Hex Size | 10 mm (0.39 in) |
| Thread Size | M8 mm (0 in) |
| Class or Grade | ISO 898-1 Class 8.8 |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Bolt Length | 80 mm (3.14 in) |
| Bolt Type | Hex Flange Head Bolt |
| Coating | Zinc |
| Handle Length | 58 mm (2.28 in) |
Compatible Equipment
- Generator Sets: C4.4DE88E0, C4.4, C7.1, 3512B
- Track Loaders: 953, 953K, 963K, 963
- Cold Planers: PL61
- Compactors: CW-34, CP56B, 815, 816, 814, CP12 GC, CS68B, CS12 GC, CS56B, CS78B, CS74B, CB-66B, CB-44B, CB16, CS79B, CB-64B, CP11 GC, CS7, CS11, CS12, CB10, CB15, CB13, CS-54B
- Engines: C6.6
- Excavators: 320D, 330, 326D2, 326D2 L, 329D2 L, 329D2, 313, 120 GC, 320 GC, 326 GC, 325, 323 GX, 320D GC, 323D L, 315 GC, 320, 336 GC, 326, 333 GC, 336, 333, 320 GX, 323D2 L, 330D2, 323, 330D2 L, 312E L, 312E, 315, 312C, 312C L, 326GC, 434F2, 312F, 416F2, 428F, 432, 323 GC, 330 GC, 320D L, 313F L, 315C, 323GC, 315F LCR, 323D2
- Asphalt Pavers: AP655F L, AP655F
- Skid Steer Loaders: 236
- Motor Graders: 140 GC, 316F, 120
- Wheel Excavators: IT14G, M320, M315, M315GC
- Dozers: D5K2 XL, D6K2, D1, D4, D6N, D3K2 LGP
- Mini Excavators: 307
- Wheel Loaders: M314, 910, 938K, 962L, 950L, 924K, 950 GC, 950
Additional information
| Machine Model | 120, 120 GC, 140 GC, 236, 307, 312C, 312C L, 312E, 312E L, 312F, 313, 313F L, 315, 315 GC, 315C, 315F LCR, 316F, 320, 320 GC, 320 GX, 320D, 320D GC, 320D L, 323, 323 GC, 323 GX, 323D L, 323D2, 323D2 L, 323GC, 325, 326, 326 GC, 326D2, 326D2 L, 326GC, 329D2, 329D2 L, 330, 330 GC, 330D2, 330D2 L, 333, 333 GC, 336, 336 GC, 3512B, 416F2, 428F, 432, 434F2, 814, 815, 816, 910, 924K, 938K, 950, 950 GC, 950L, 953, 953K, 962L, 963, 963K, AP655F, AP655F L, C4.4, C4.4DE88E0, C6.6, C7.1, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP11 GC, CP12 GC, CP56B, CS-54B, CS11, CS12, CS12 GC, CS56B, CS68B, CS7, CS74B, CS78B, CS79B, CW-34, D1, D3K2 LGP, D4, D5K2 XL, D6K2, D6N, IT14G, M314, M315, M315GC, M320, PL61 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
