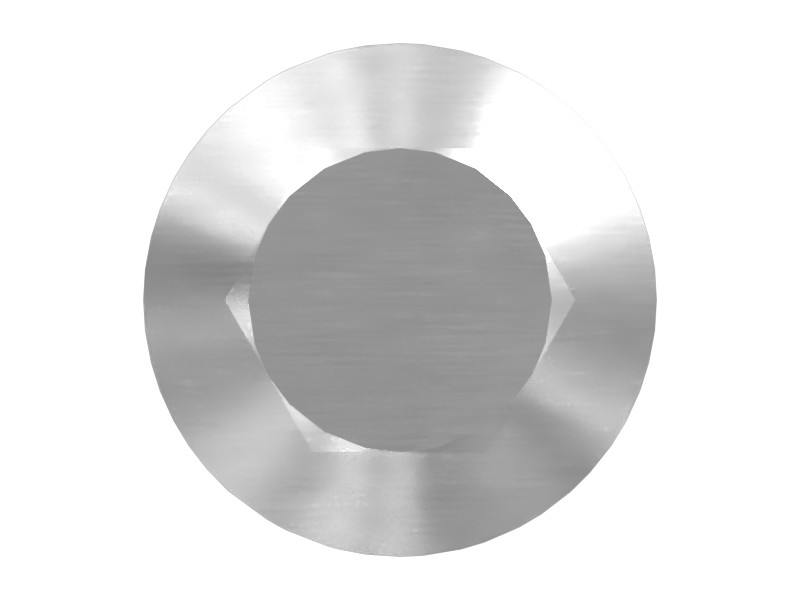

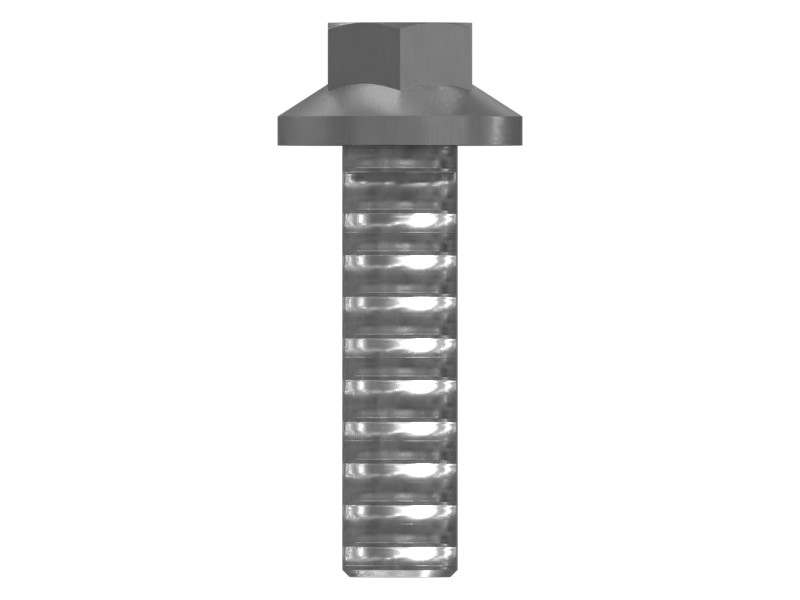

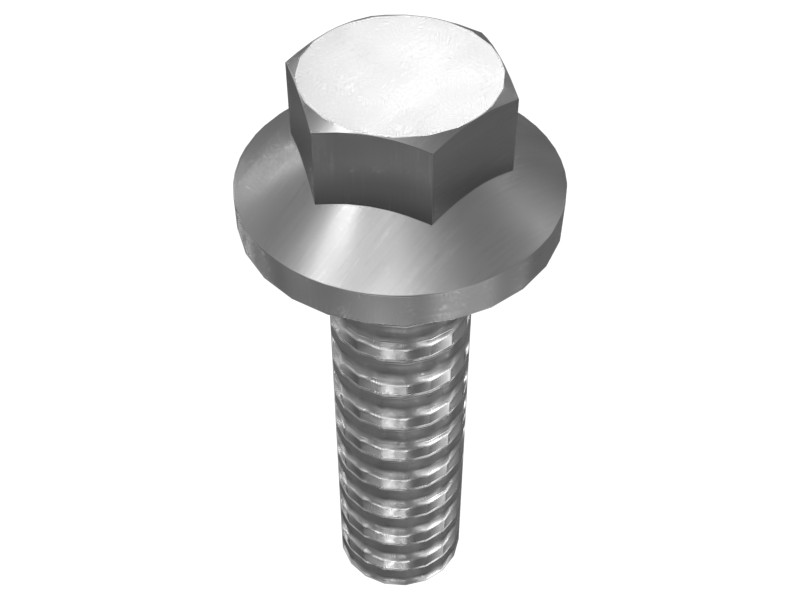

6I-0254 Flange Head Bolt
Washer Head Flange Head Bolt
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are used where a separate washer is not suitable.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size | M8 mm (0 in) |
| Remarks | Thread Length (mm) 3.125 |
| Class or Grade | ISO 898-1 Class 8.8 |
| Locking Feature | None |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Bolt Length | 30 mm (1.181 in) |
| Bolt Type | Hex Flange Head |
| Coating | Zinc |
| Handle Length | 3.12 mm (0.123 in) |
Compatible Equipment
- Generator Sets: C4.4, C7.1, C3.3DE50E0, C7.1DE200E, C4.4DE88E0, C3.3DE33E0, C2.2DE18E3, 3512B
- Track Loaders: 953, 963K, 963, 953K, 963D, 953D
- Cold Planers: TH360B, PL61
- Compactors: CS7, CW-34, CS-563E, CB-66B, CB16, CS-56, CB-564D, CB-24B, CS56B, CB-534D, CB-64B, CP12 GC, CP11 GC, CS78B, CB-34B, CS12, CP54B, CS11, CS54B, CB-434D, CB-36B, CC-34B, CS74B, 816, CS12 GC, CS68B, CB-44B, CW-16, CP56B, CS-54, 815, 814, CB2.5, CB2.7, CB2.9, CS79B, CB15, CB13, CB10, CS-533E, CS-54B, CS64B
- Engines: C6.6, C32
- Excavators: 330, 326D2 L, 320D2, 305, 329D2, 326D2, 329D2 L, 320D, 313 GC, 316 GC, 313, 312 GC, 320 GX, 330 GC, 323 GX, 315 GC, 315, 333, 320 GC, 120 GC, 313D2, 323D2 L, 313D2 GC, 323D L, 326, 323, 320D2 GC, 320E, 335F LCR, 312D2 GC, 336 GC, 315F LCR, 320, 312D2 L, 320D2 L, 323GC, 312E L, 416F2, 428F, 416E, 336, 320D L, 305 CR, 313F LGC, 313F L, 325, 312F, 318D2 L, 335, 320D GC, 313 GX, 312 GX, 316 GX, 432, 330D2, 312E, 329E L, 329E, 318D2, 312D2, 315C, 330D2 L, 434F2, 330GC, 326GC, 312C L, 323D2, 312C, 326 GC, 333 GC, XQP200, 323 GC, 313D2-GC
- Asphalt Pavers: AP655F, AP-600D, AP655F L
- Skid Steer Loaders: 226D3, 249D3, 239D3, 236, 313D2 LGP, 232D3, 236D3, 232D
- Motor Graders: 140 GC, 120, 316F
- Wheel Excavators: M315D2, M313D, M315, IT14G, M322D, M315GC, M320, M315D, M317D2, M320D2
- Dozers: D6K2, D3K2 LGP, D6N, D5K2 XL, D5K LGP, D1, D4, D5K XL
- Mini Excavators: 307, 308, 310
- Wheel Loaders: 938K, 924HZ, 926M, 928HZ, 924K, 924GZ, 928G, 950L, 950, 910, M314, 950 GC, 938M, 966F, 962L
