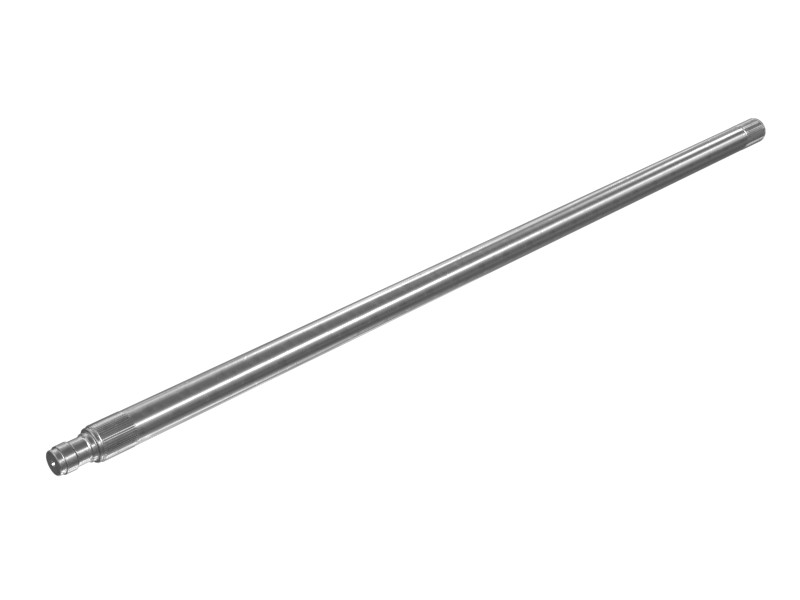

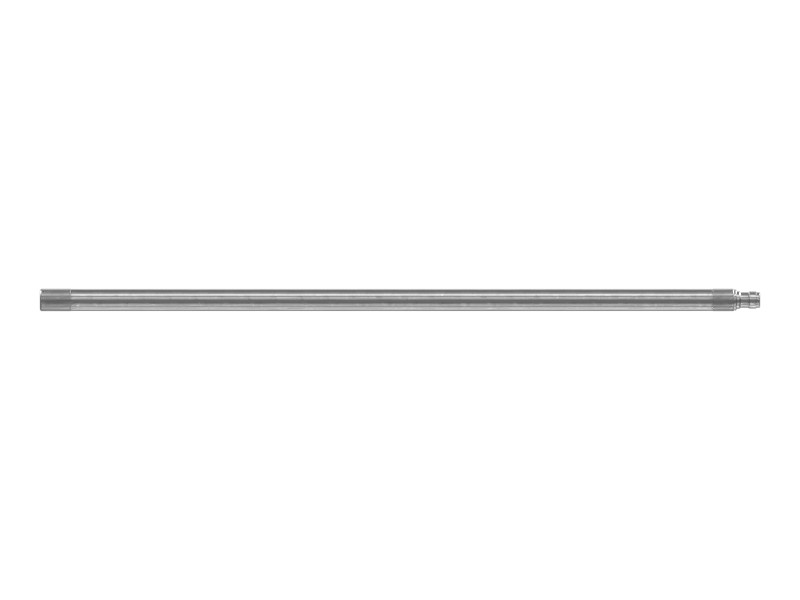

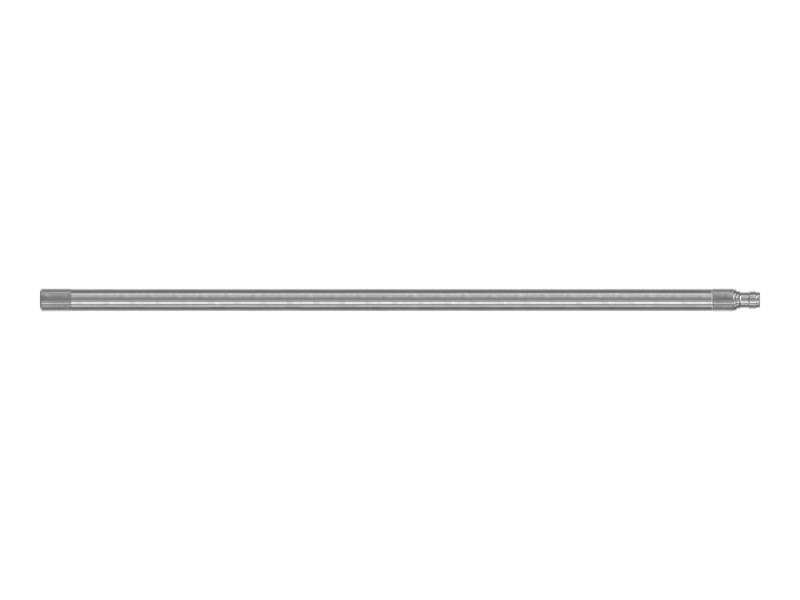

6G-6408 83.56 mm OD Axle Shaft
Cat® 52 External Tooth Left Axle Shaft is used to transfer power from the final drive to the wheel
Description
The axle shaft transmits power from the transmission of Cat heavy-duty equipment to the final drive.
Features
- Hardened steel shaft

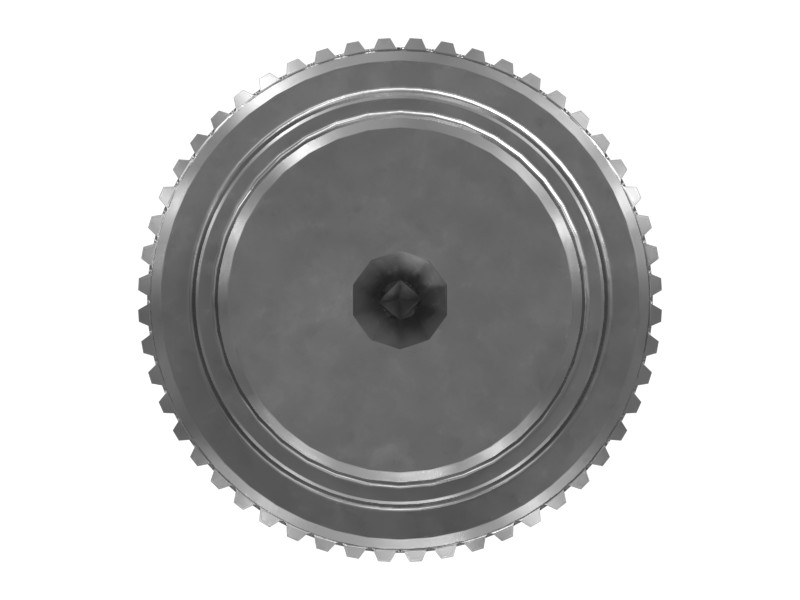

- Number of External Spline Teeth: 52 (2X)
- Length: 2740 mm (107.874 in)
- Thread Size: 2-1/2-12
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Length | 2740 mm (107.874 in) |
| Outside Diameter | 83.56 mm (3.289 in) |
| Thread Size | 2-1/2-12 in |
Compatible Equipment
- Off-Highway Trucks: 785D, 785
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
