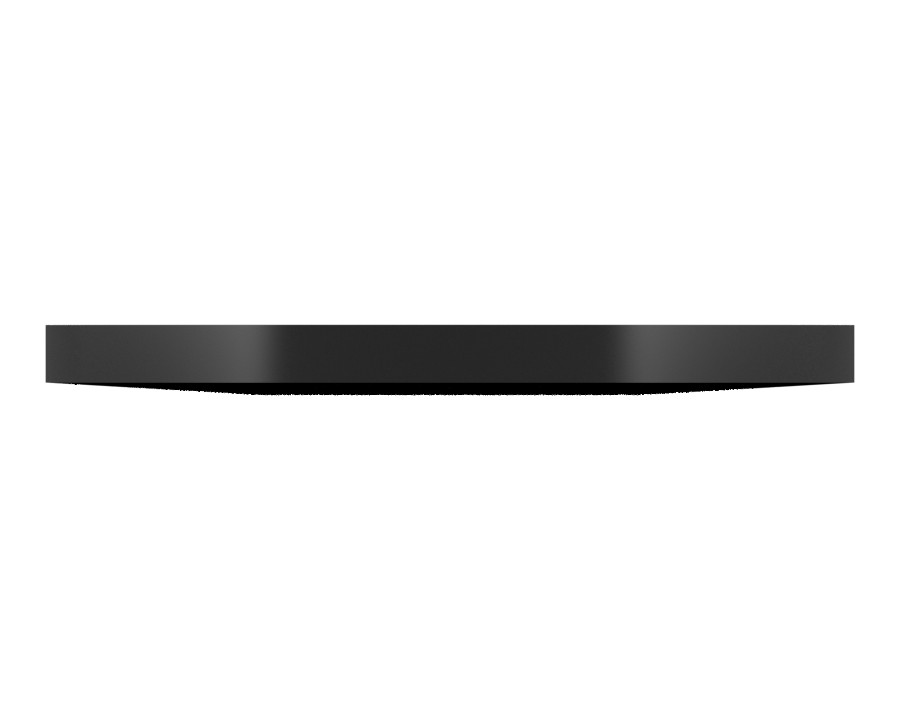

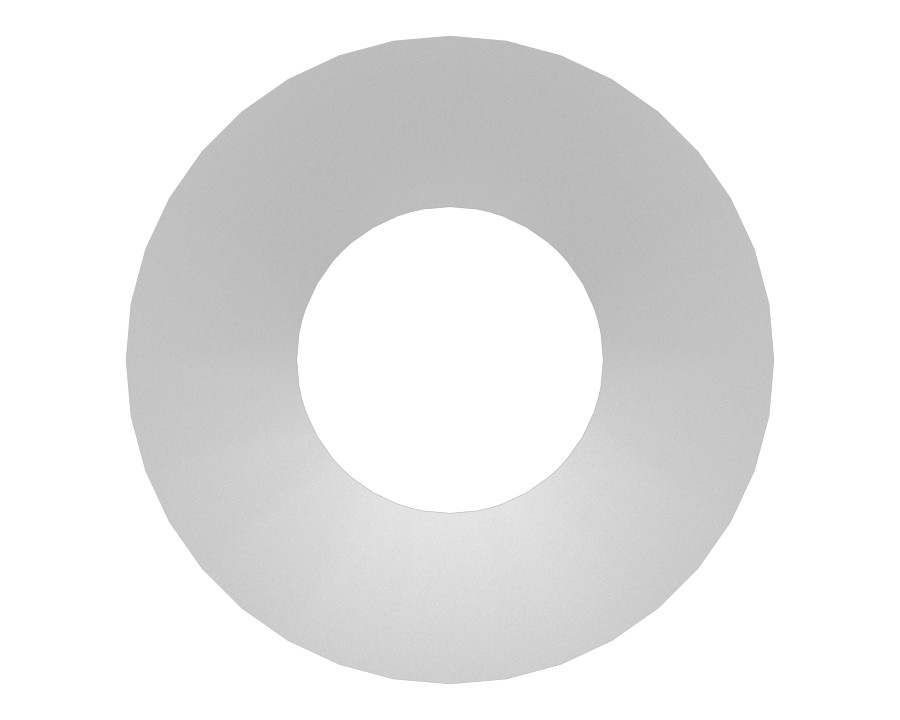

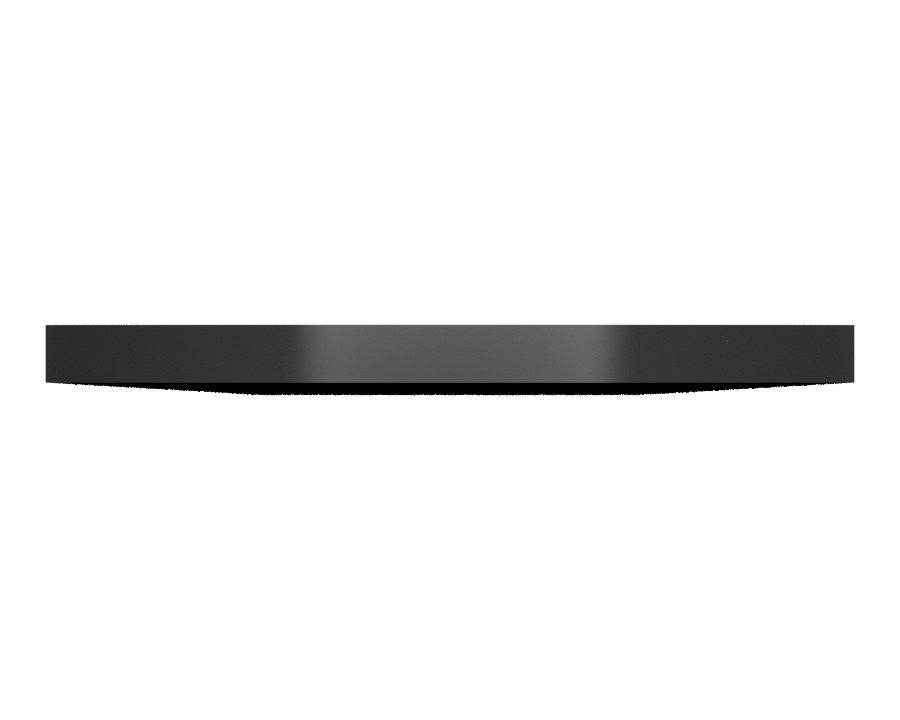

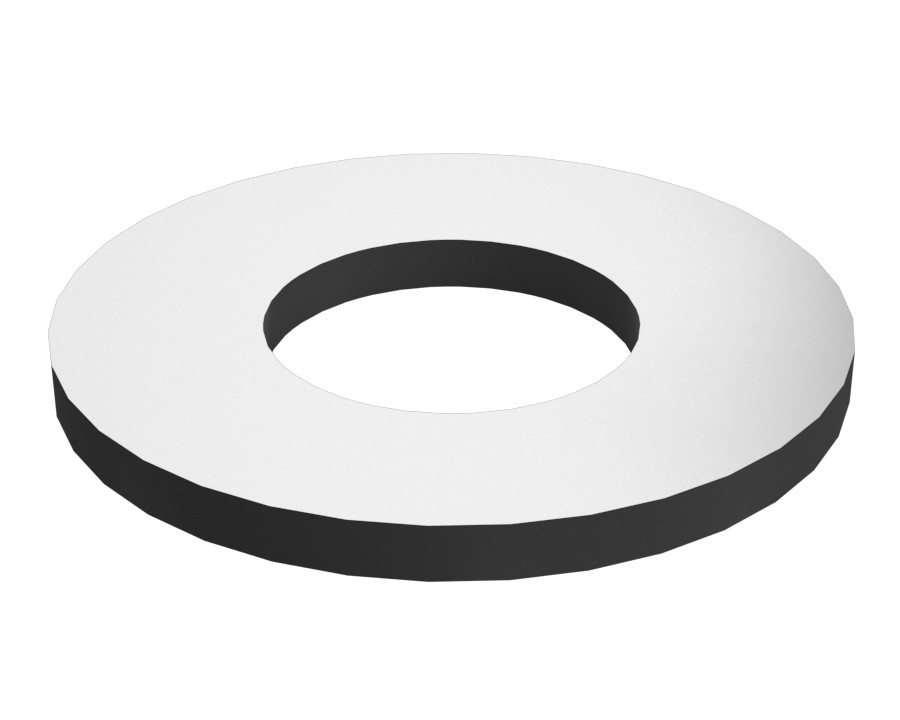

6G-6122 71.12 mm ID Belleville Spring
Cat® 71.12 mm ID Belleville Spring for Hydraulic Swing Drive Effectively Damps Vibration and Absorbs Shock
Description
Service part for the swing drive assembly.
Features
- Belleville spring
- Material: Steel
- Outside Diameter: 150.11 mm (5.91 in)
- Inside Diameter: 71.12 mm (2.8 in)
- Thickness: 8.89 mm (0.35 in)
- Free Height: 12.94 mm (0.51 in)
- Finish: Oiled
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 71.12 mm (0 in) |
|---|---|
| Outside Diameter | 150.11 mm (5.91 in) |
| Thickness | 8.89 mm (0.35 in) |
| Gasket Type | Spring-Conical |
Compatible Equipment
- Motor Graders: 120, 14, 16, 18, 16M, 120H, 140K, 140G, 160K, 12K, 140H, 12H, 14M, 16M3, 16H
- Skid Steer Loaders: 24
