Description

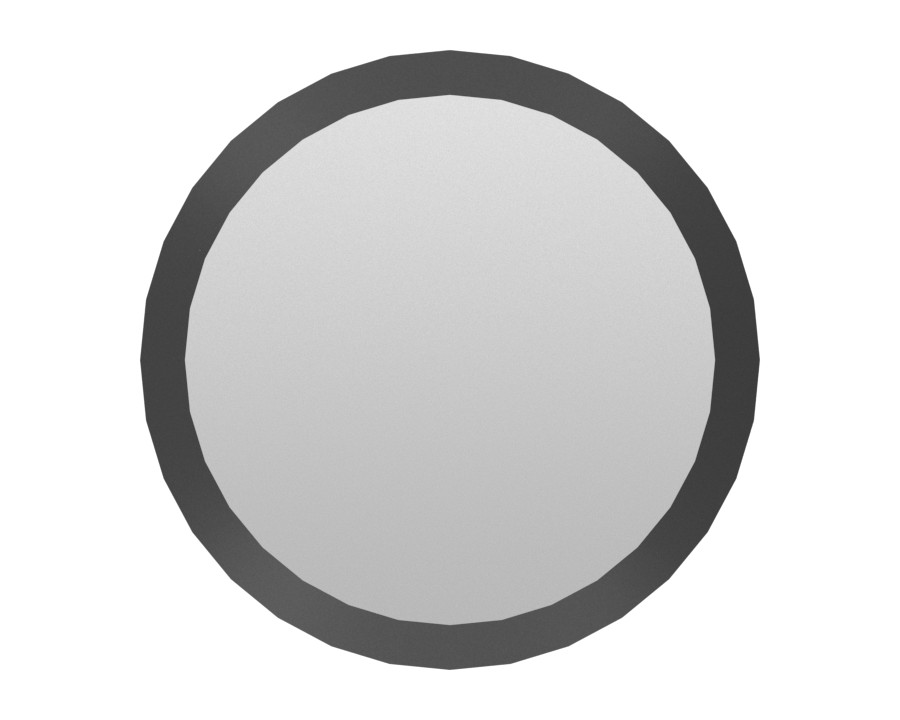

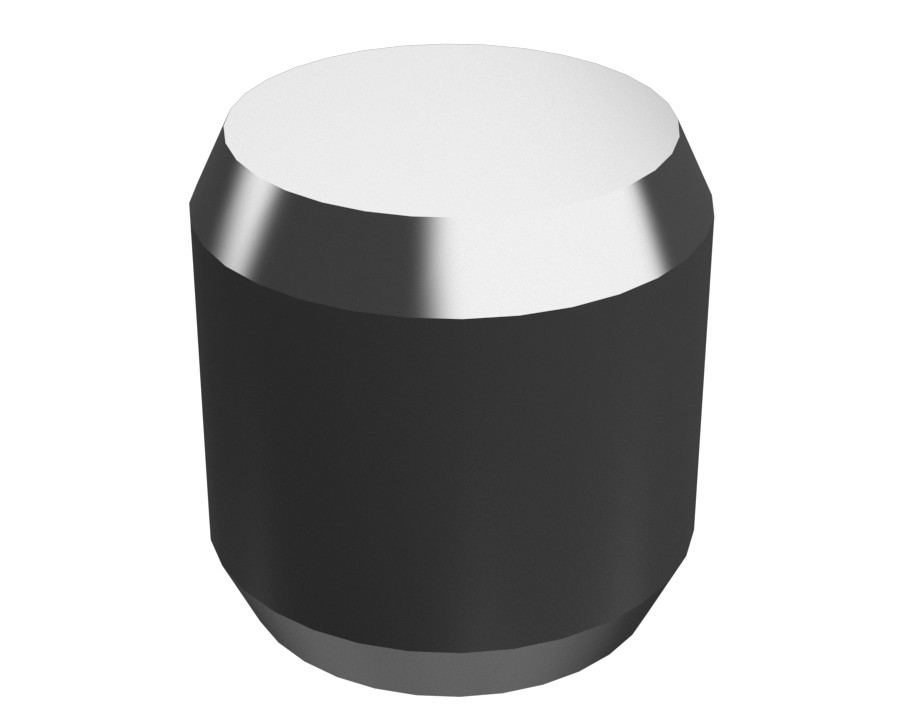

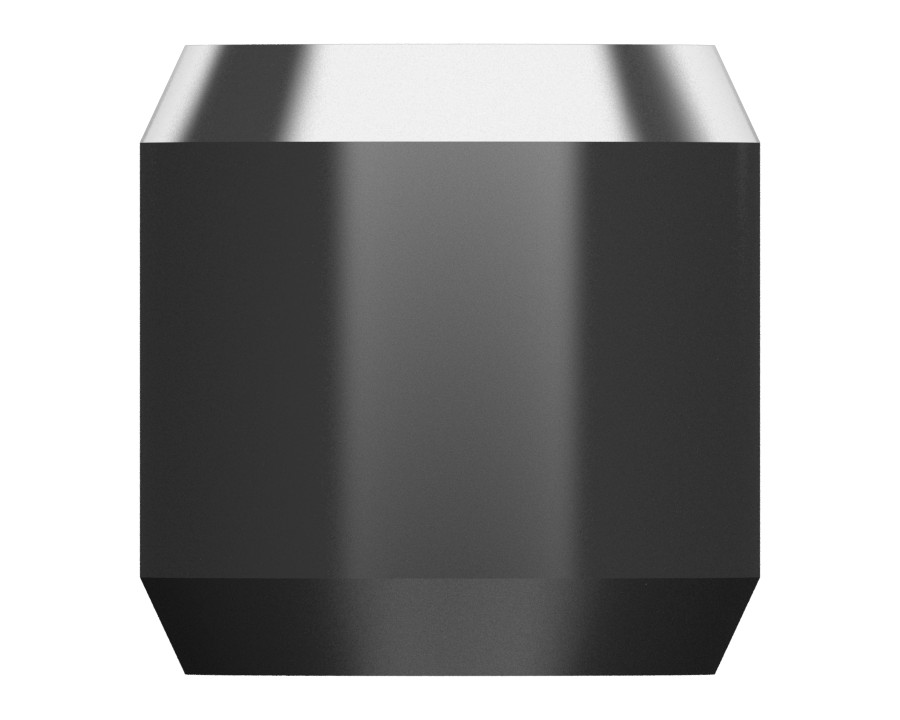

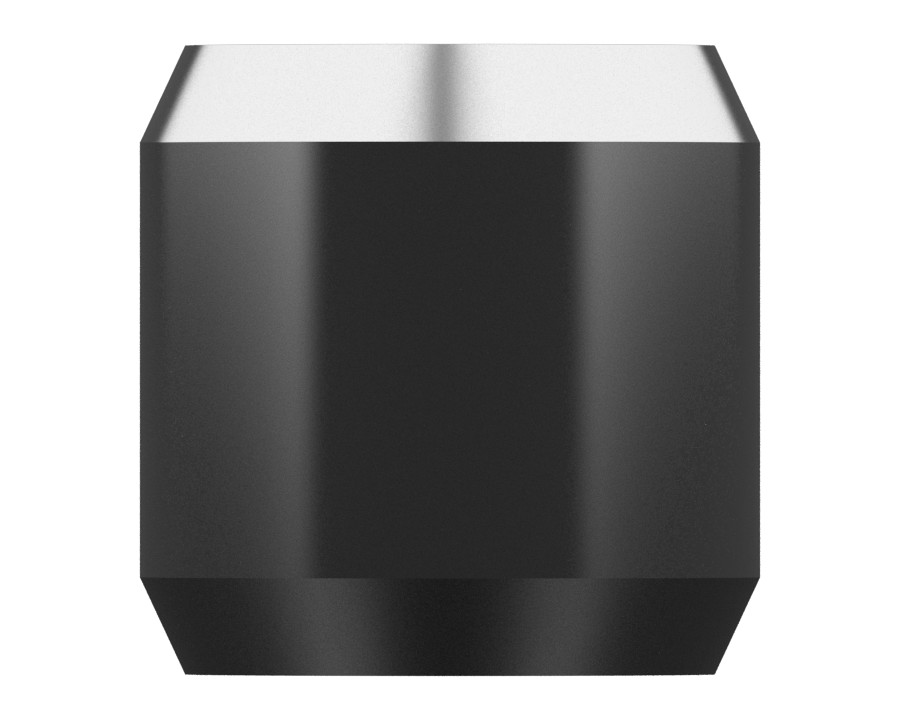

A dowel pin is a solid, headless straight pin with a tightly controlled diameter, installed by press fit in one or two parts to transmit loads or fix the position of adjacent parts.
Cat® hardware and fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality — Components meet or exceed ISO, ASTM, ASME and SAE requirements.
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
You can trust Cat fasteners to help you build, maintain, or repair in most machine and shop applications around the world.
Specifications
| Material | Steel(1E1042A) |
|---|---|
| Pin Length | 9.5 mm (0.374 in) |
| Pin Type | Solid |
| Pin Outside Diameter | 9.37 mm (0.369 in) |
| Remarks | Overall Length: 9.5, Pin Diameter: 9.368, End Type 1: Chamfer, End Type 2: Chamfer |
| Material Description | Steel – Pins and Dowels |
Compatible Equipment
- Generator Sets: G3516, 3512B
- Motor Graders: 140G, 120
- Track Loaders: 992, 963
- Compactors: 815, 816, 814
- Dozers: D4E, D7G, D5H, D11N, D11R
- Excavators: 3516B, 3508B
- Wheel Loaders: 966F, 950
- Off-Highway Trucks: 773, 785, 789, 793, 777D, 777
Additional information
| Machine Model | 120, 140G, 3508B, 3512B, 3516B, 773, 777, 777D, 785, 789, 793, 814, 815, 816, 950, 963, 966F, 992, D11N, D11R, D4E, D5H, D7G, G3516 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Generator Sets |
| Part Source | Genuine OEM |
