Description

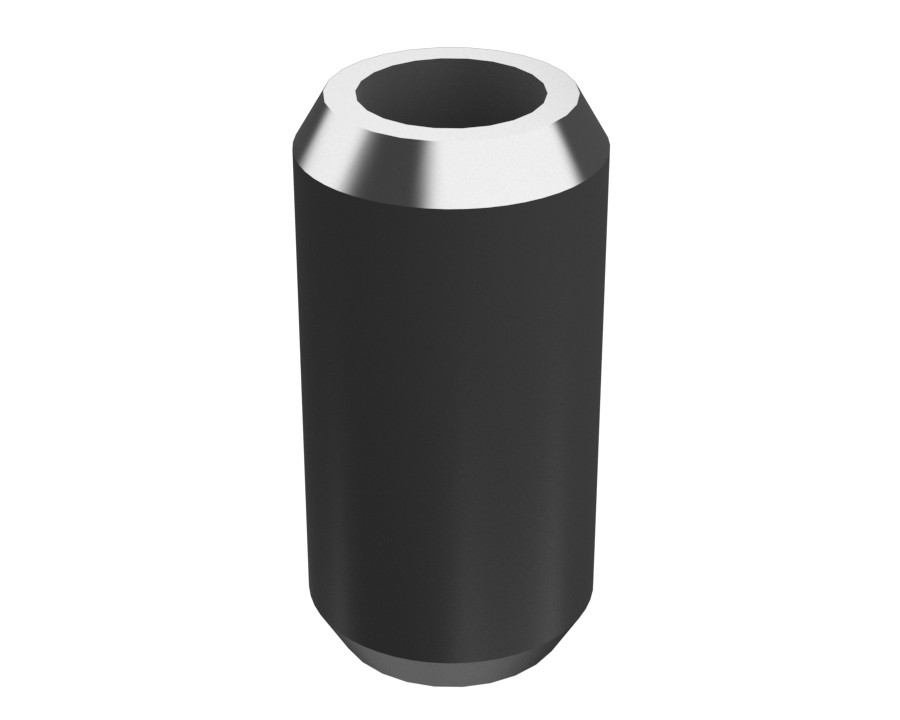

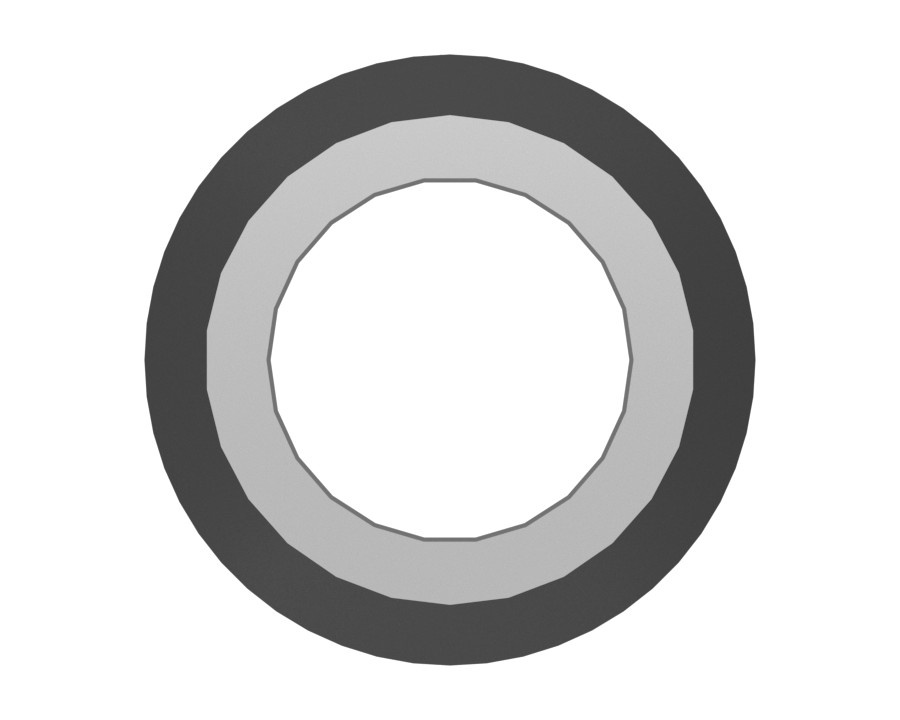

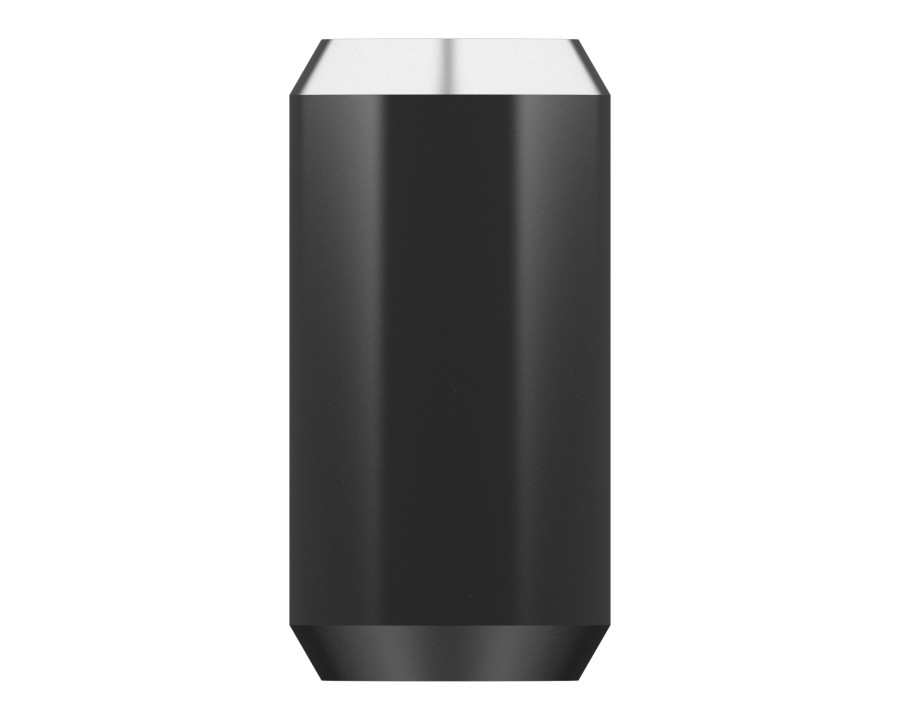

A coil spring pin is made by rolling thin material into a cylindrical shape. This pin is installed into a slightly smaller hole and is held by the spring action of the coiled tube. The coiled tube can move radially after installation and absorbs shock and vibration. This pin is ideal for installation in holes with large tolerances and mismatches.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Remarks | Pin Diameter: 3.175, Overall Length: 6.35, Roll Pin End Type 1: Chamfer, Roll Pin End Type 2: Chamfer |
|---|---|
| Material Description | Steel Spring Pin |
| Pin Type | Spring-Roll |
| Pin Outside Diameter | 3.18 mm (0.125 in) |
| Pin Length | 6.35 mm (0.25 in) |
| Material | — |
Compatible Equipment
- Generator Sets: 3406B
- Track Loaders: 973K, 982, 992, 824C
- Cold Planers: PL72
- Compactors: 814, 816, CS-583D, CS-533C, 815
- Engines: C13, C15, C7, C18
- Excavators: 3126, 349F L, 637E, 637K, 349E, 349E L, 352F, 349E L VG, 352, 349, 621H, 621K, 336F L, 336E, 325B L, 336E H, 336E L, 336F, 336E LN, 336F LN, 320B, 336E LH, 325B, 336F L XE
- Motor Graders: 16, 18, 14, 140G, 120, 120H, 16M3
- Wheel Excavators: M320
- Dozers: D10, D11R, D10N, D11N, D6T LGP, D5M, D9R, D8R, D6M, D7E, D8N, D8L, D7G, D6T, D9N, D9L, D9T, D4E, D9
- Wheel Loaders: 980, 928G, 966K, 962G, 950, 836, 992C, 992D, 988F, R1700K, 950G
- Off-Highway Trucks: 777, 773, 725C2, 730, 725, 735
Additional information
| Machine Model | 120, 120H, 14, 140G, 16, 16M3, 18, 3126, 320B, 325B, 325B L, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 3406B, 349, 349E, 349E L, 349E L VG, 349F L, 352, 352F, 621H, 621K, 637E, 637K, 725, 725C2, 730, 735, 773, 777, 814, 815, 816, 824C, 836, 928G, 950, 950G, 962G, 966K, 973K, 980, 982, 988F, 992, 992C, 992D, C13, C15, C18, C7, CS-533C, CS-583D, D10, D10N, D11N, D11R, D4E, D5M, D6M, D6T, D6T LGP, D7E, D7G, D8L, D8N, D8R, D9, D9L, D9N, D9R, D9T, M320, PL72, R1700K |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
