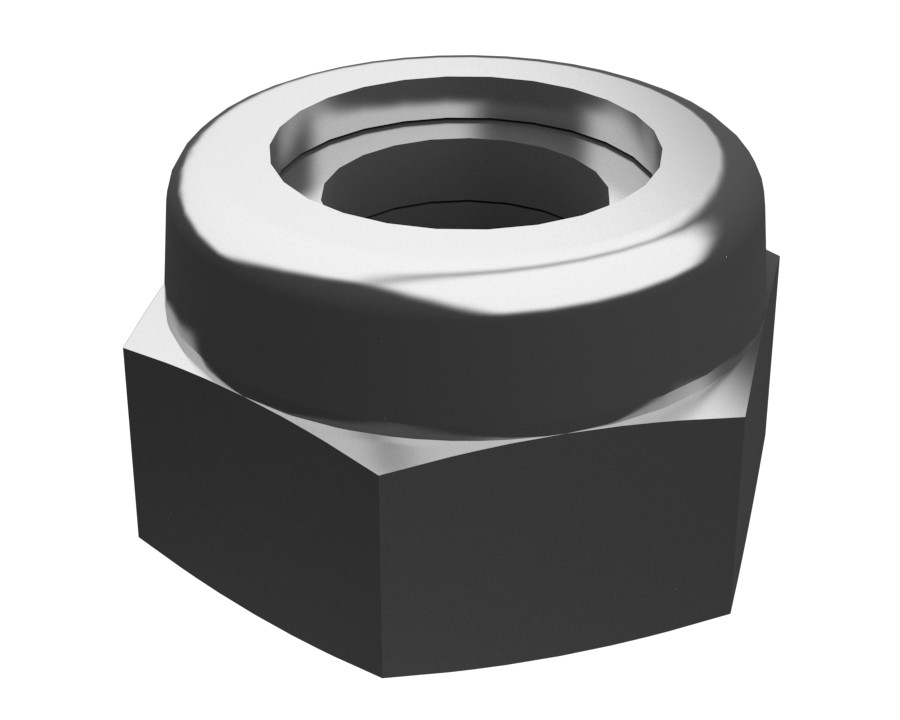

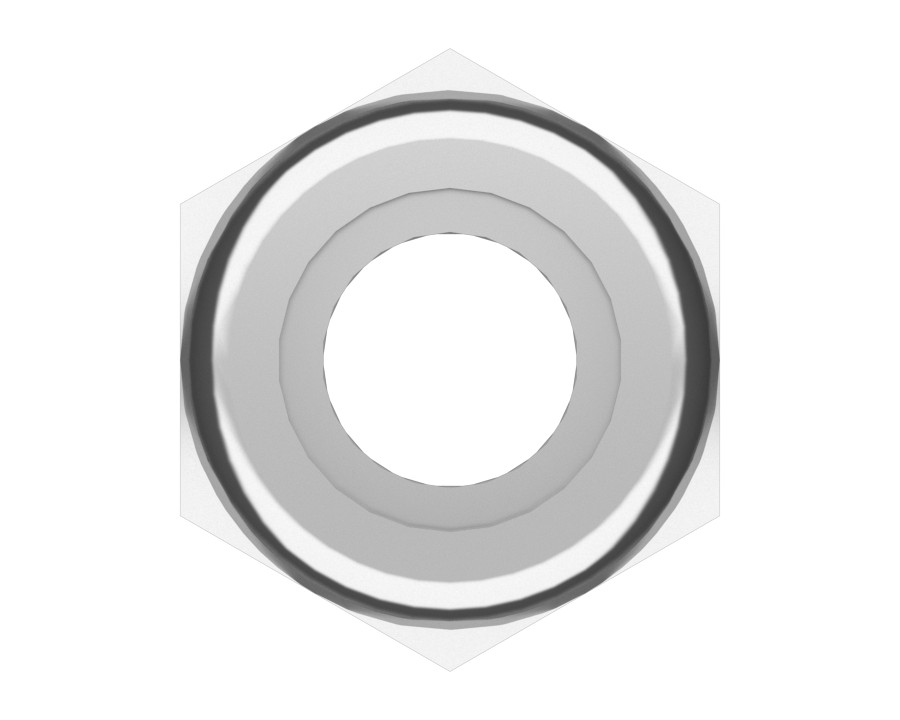

6D-5801 #8-32 Hex Head Locknut
Cat® #8 Steel Hex Head Lock Nut
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Specifications
| Thread Direction | RH |
|---|---|
| Drive Chain | 8.73125 mm (0.344 in) |
| Thread Size (in – TPI) | No. 8-32 in |
| Surface Finish | Zinc Plated |
| Nut Width – 3 | 11/32 in |
| Hardened | Yes |
| Thread | Coarse Thread UNC |
| Material | Alloy Zinc |
| Material Description | SAE Grade 8 Equivalent |
| Thread Size | #8 mm (0 in) |
| Hole Thread Pitch | 32 |
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
| Nut Height – 2 | 0.23 in |
| Class or Grade | SAE J995 Grade 8 |
| Thread Size (Diameter × Pitch) | No. 8 (.164)x32 mm |
| Thickness | 5.95 mm (0.23 in) |
| Nut Model | Hex Nut |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, 3406B, G3516, G3516C, C4.4, C7.1, C9, 3406C
- Track Loaders: 972, 982, 993, 834H, 826H, 826K, 990K, 973K, 995, 826G, 824G, 994K, 816F, 992
- Cold Planers: PM622, PL87, PM620, PL72, PL83
- Compactors: C9.3B, CS-56, 834K, 824K, 825K, CS-54, C13B, C-15
- Engines: C11, C32, C15, C13, C27, C7, C18, C175-16
- Excavators: 329D2 L, 326D2, 326D2 L, 336D2, 320D2, 349D2, 329D2, 390F L, 374F, 3456, 374, 349F L, 330D L, 395, 3516E, 6015B, 350, 3508B, 3516B, 345D L, 3512C, 621H, 352, 349E L VG, 621K, 330C L, 320, 336D2 L, 320 GC, 325C, 318D2 L, 336D2 XE, 336E L, 320D2 GC, 330D2, 336F L, 336D2 GC, 330D2 L, 336E LN, 336F LN, 313D2, 336F, 323, 336F L XE, 336E, 313D2 GC, 323D2 L, 318D2, 329E L, 325B L, 330C, 355, 6060, 349, 637E, 349E L, 6040, 349E, 350MHPU, 637G, 6015, 329E, 323D2, 336E LH, 313D2-GC, 336E H, 637K, 657G, 352F, 621G, 6020B, 349D L, 374F L, 390F, 345D, 340D2 L, 6030, 3101, 336D L, 325D L, 329D L, 324D L, M325D L MH
- Asphalt Pavers: AD30, AP-600D, AD45, AD63
- Skid Steer Loaders: 24
- Motor Graders: 16M, 140K, 140G, 16, 16M3, 14, 160K, 14M, 18, 120, 12K, 12H, 120H
- Wheel Excavators: MD6200, MD6250, MD6310
- Dozers: D11, D8T, D6R II, D7R II, D6R, D6R III, D6N, D7, D9, D10R, D11R, D10T2, D9R, D7R, D6T LGP, D6T, D6G2 LGP, D10, D8, D6R XL, D6R LGP, D11T, D7E, D8N, D6G, D9T, D7G2, D5N, D7H, D7G, D8R, D9N, D10N, D6G2 XL, D10T
- Wheel Loaders: R3000H, RM500B, 966, 980, R1700G, 980H, RM400, 950L, 966L, 928HZ, 962L, 966H, 924HZ, 972L, 950H, 980L, 966F, 988K, 966K, 990H, 972H, R2900 XE, R2900G, 988H, 836, 986H, 834, 950 GC, 980G
- Off-Highway Trucks: 740 GC, 773, 793, 798 AC, 785, 789, 796 AC, 794 AC, 777, 740, 735, 730, 725, 745, 7495, 797F, 770G, 740B, 745C, 773E, 772G, 785D, 793F, 777E, 773F, 775G, 725C2, 789D, 793D
