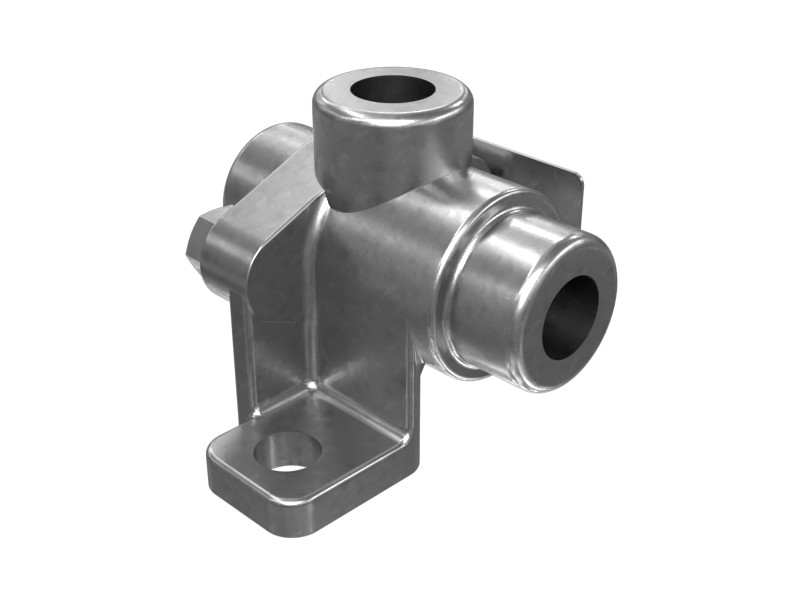

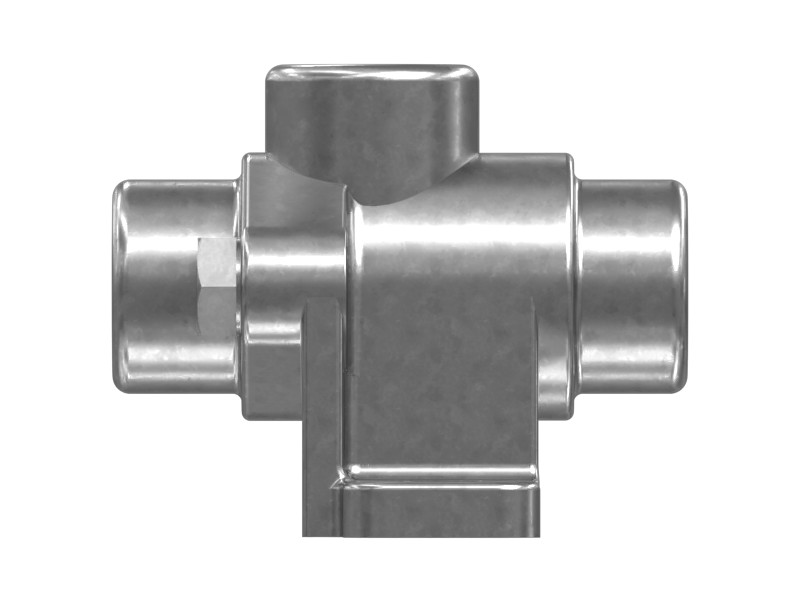

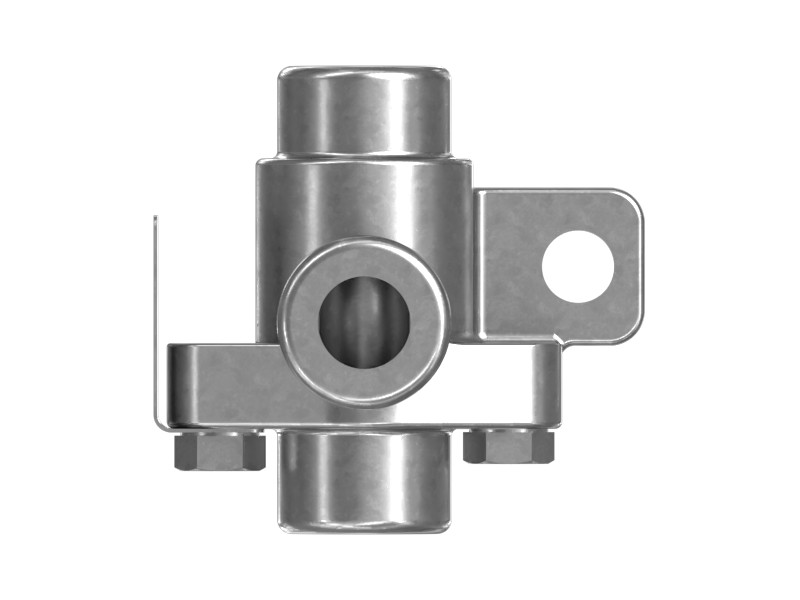

6D-3781 Brake Control Check Valve
The Cat® check valve ensures one-way fluid flow to prevent backflow and maintain fluid control in the hydraulic system
Description
Cat check valves provide one-way flow and prevent backflow.
Features
- Dual check valve
- Supply Port: 1/4 NPT (2X)
- Delivery Port: 1/4 NPT
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Mixed: Metal |
|---|---|
| Width | 53.8 mm (2.12 in) |
| Length | 65.7 mm (2.59 in) |
| Thread Size | 1/4-18 NPT in |
Compatible Equipment
- Off-Highway Trucks: 773, 777D, 771D, 789, 773D, 785, 777E, 773E, 793D, 789D, 785D, 793
