Description

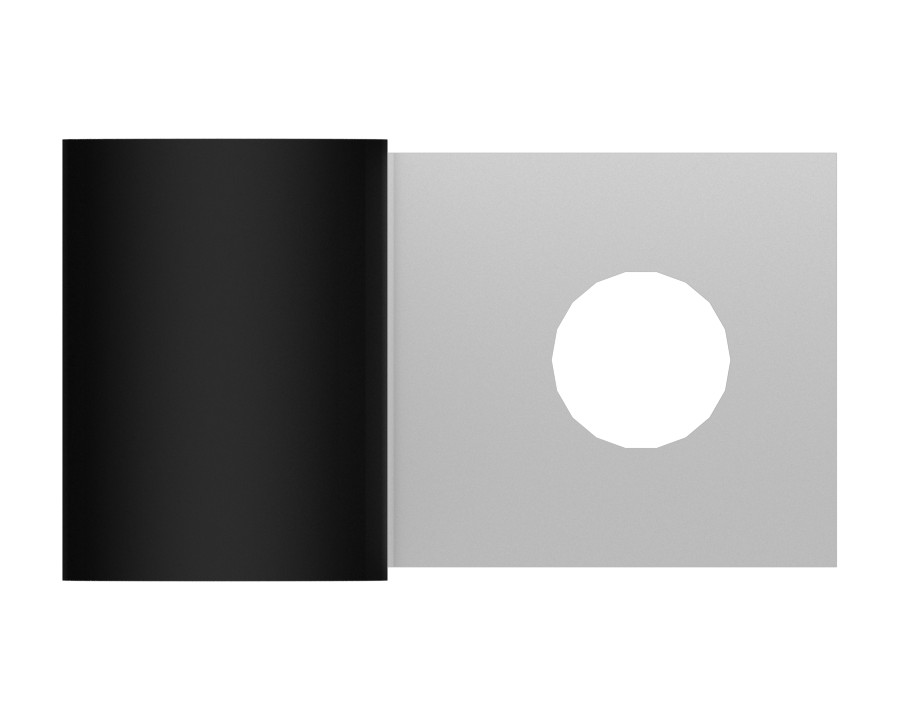

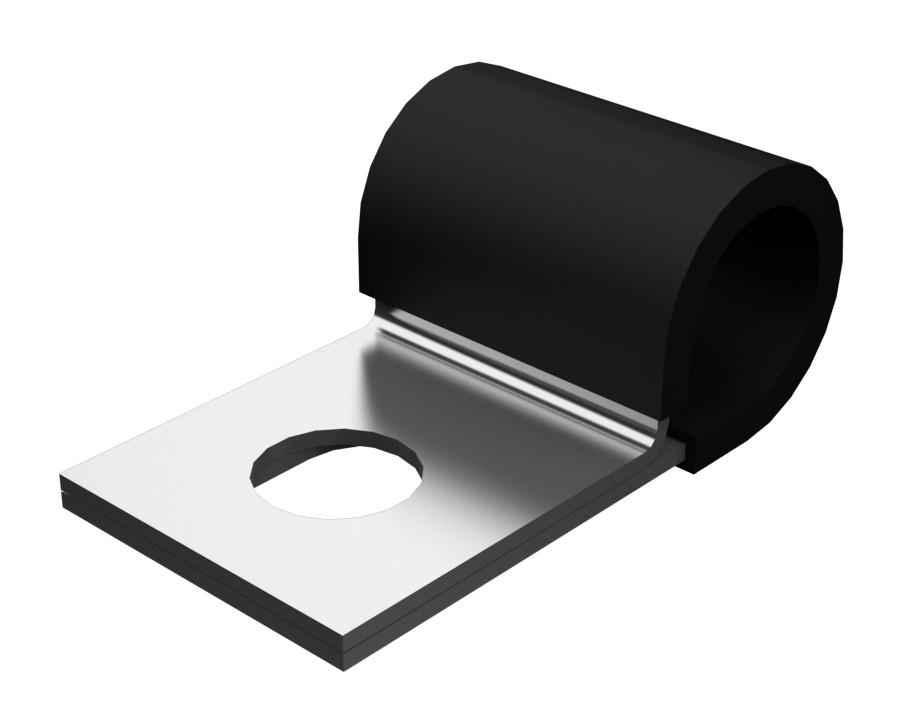

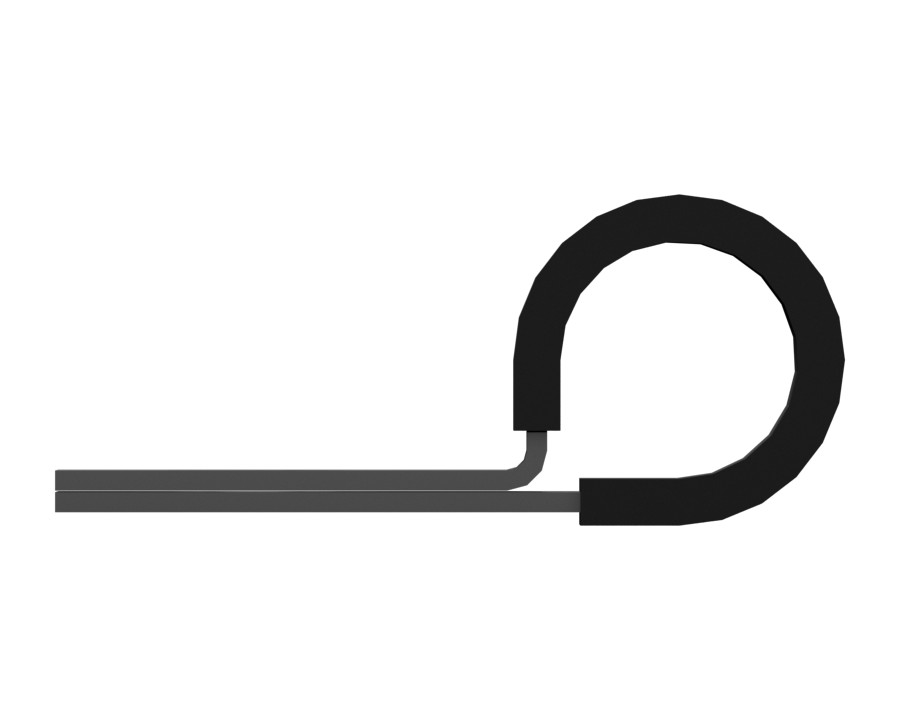

Ring clips (such as part number 6D-3479) provide a secure mounting point for rigid tubes, hoses, wiring harnesses, cables, and engine accessories.
Cat clips and clamps are manufactured to precise specifications for durability, reliability and high efficiency. Strength and quality – clips and clamps meet or exceed ANSI, ASTM and DIN requirements, with coatings that meet the special requirements of different applications (RoHS compliant). Cat clips, clamps and fasteners work together as a system to deliver outstanding reliability and safety to our customer base.
Features
- Single-tube coated cushion clamp
- Tube Diameter: 14.29 mm (0.5625 in)
- Clamp Centerline to Fastener Centerline: 25.5 mm (1.00 in)
- Width: 25.4 mm (1.00 in)
- Used with M10 or 3/8 in fasteners
Applications
This part is ideal for stocking in small repair shops and/or field service vehicles. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Clamp Width | 35.4 mm |
|---|---|
| Remarks | Fastener Offset: 12, Fits Fastener: M10 or 3/8, Clamp Diameter: 14.29, Clamp Thickness: 1.2, CL Clamp to CL Fastener: 25.5 |
| Material Description | Steel Clip |
| Type | Single Tube Coated Cushion Clip |
| Material | Steel/Vinyl |
| Tube Diameter | 14.29 mm (0.56 in) |
| Length | 25.5 (Clamp Centerline to Fastener Centerline) mm (1.00 (Clamp Centerline to Fastener Centerline) in) |
| Width | 25.4 mm (1.00 in) |
Compatible Equipment
- Generator Sets: 3512E, C4.4, 3516C, 3406C, G3516C, 3512B, C9, G3516, 3406B, C7.1
- Track Loaders: 973K, 824C, 992, 993, 995, 953, 826H, 990K, 963D, 953D, 953K, 994K, 834H, 963K, 816F, 826G, 963, 826K, 972, 824G
- Cold Planers: PL61, TH417D, TH360B, PL87
- Compactors: CB1.7, CB1.8, 815, CB-534D, CS-563E, CS-583D, CW-34, CS-533C, 816, CB-66B, CS-54, CB16, CB-434D, CB-14, 814, CB-64B, 834K, 825K, 824K, CB2.9, CB2.5, CB2.7, C-15, CB15, CB13, C-9, CB10, CS-533E
- Engines: C11, C32, C7, C13, C15, C27, C12, C18
- Excavators: 336D, 320D, 320D2, 3456, 303, 308E, 330, 3126, 336D2, 307E, 303.5E2 CR, 303C CR, 308D, 305, 306E2, 306E, 316 GC, 330D L, 349F L, 305E2 CR, 6015, 6030, 336D L, 6015B, 3516E, 333, 323D L, 320D L, 3512C, 350 L, 428F, 416F2, 3516B, 365B, 6060, M325D L MH, 329E L, 323, 330 L, 320, 320 GC, 637G, 621G, 6040, 325, 320C, 320D2 L, 312D, 312D2 L, 312D2, 313D, 313D2, 313F LGC, 340D2 L, 434F2, 352F, 323D2 L, 311D LRR, 320D FM, 320D2 GC, 315D L, 318D2 L, 330C L, 323GC, 320D RR, 315C, 318D2, 416E, 330GC, 318D L, 657G, 336D2 L, 323D2, 313D2 GC, 329E, 637E, 325C, 320D GC, 330 GC, 312D L, 314C, 349E L VG, 330D, 315F LCR, 325C L, 349E L, 326, 323D, 320D3 GC, 320 GX, 312D2 GC, 323 GX, 311C, 320D3, 345C L, 345B, 385C, 335, 323 GC, 326 GC, 120 GC, 385C FS, 345C, 330C, 313D2-GC, 621K, 326GC, 325B L, 333 GC
- Asphalt Pavers: AD63
- Skid Steer Loaders: 216B3, 3126B, 236D, 226B, 236B3, 226B3, 313D2 LGP
- Motor Graders: 12K, 120, 3606, 160K, 140H, 12H, 16M, 18, 140G, 140K, 120H, 14, 14M, 16M3, 16H, 16, 140 GC
- Wheel Excavators: IT14G, M320D2, MD6250, M315GC, M320, M315
- Dozers: D9, D5H, D5G, D6N, D8L, D6R III, D7H, D6T, D9T, D3K2 LGP, D7G, D11T, D5M, D6K2, D6M, D5K2 XL, D4, D11N, D10N, D9L, D5K LGP, D9N, D11R, D10, D3G, D6R XL, D6R, D6T LGP, D8N, D4G, D6R LGP, D10T, D9R, D7, D7E, D5K XL, D8, D11, D6R II, D10R
- Mini Excavators: 307, 307D, 305E2, 303.5E, 308, 307C, 307E2, 305.5, 308E2, 306, 305.5E, 303.5D, 303.5C, 305.5E2, 305.5 GC
- Wheel Loaders: 966, 950H, 966L, R1700K, 966F, 966H, 950, 924GZ, 928G, 966K, 924HZ, 990H, 980H, 988H, 986H, R1700G, R2900 XE, 972L, 938K, 980G, 928HZ, 988K, 988G, 972H, 950L, 924K, 992C, 836, R1700 XE, 906K, 938M, 834, 962G, 926M
- Off-Highway Trucks: 7495, 789D, 793D, 793F, 789, 740 GC, 796 AC, 794 AC, 785, 785D, 740, 777, 777E, 735, 745C, 730, 798 AC, 745, 793, 797F, 725, 740B, 725C2, 775G, 773E, 773, 773F, 777D
