Description

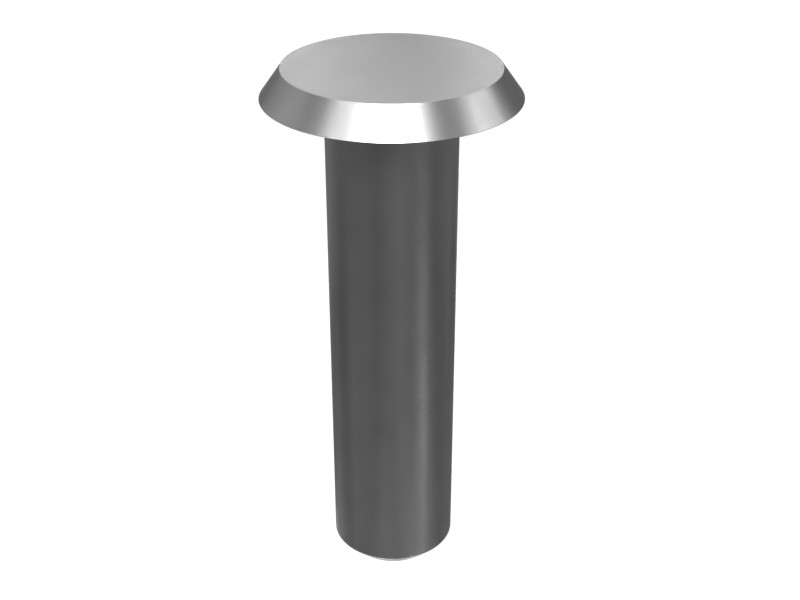

The transmission planetary rivet is a rivet used to secure the planet gears to the carrier or carrier group. Planet gears are the smaller gears that rotate around the central sun gear and mesh with the outer ring gear.
Features
- Ensures a tight, reliable fit.
- Able to withstand maximum forces and loads.
- Non-corrosive.
Applications
The transmission planetary rivet is a specialized fastener used to secure the planet gears to the carrier group within the planetary gear set of the transmission system. It plays a vital role in maintaining normal operation and efficient power transfer of the transmission system.
Specifications
| Rod Type | Countersunk Shank |
|---|---|
| Rivet Type | Flat Head |
| Rivet Length – A | 3/4 in |
| Material Description | Steel |
| Head Diameter | 9.398 mm |
| Remarks | Maximum Grip Length: 0 |
| Hole Size | 4.8514 mm |
| Shank Diameter – B | 3/16 in |
| Head Diameter – C | 3/8 in |
| Material | Steel |
Compatible Equipment
- Engines: C18
- Excavators: 657G, 621K, 621H, 621G
- Wheel Loaders: 988F
- Off-Highway Trucks: 773
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
