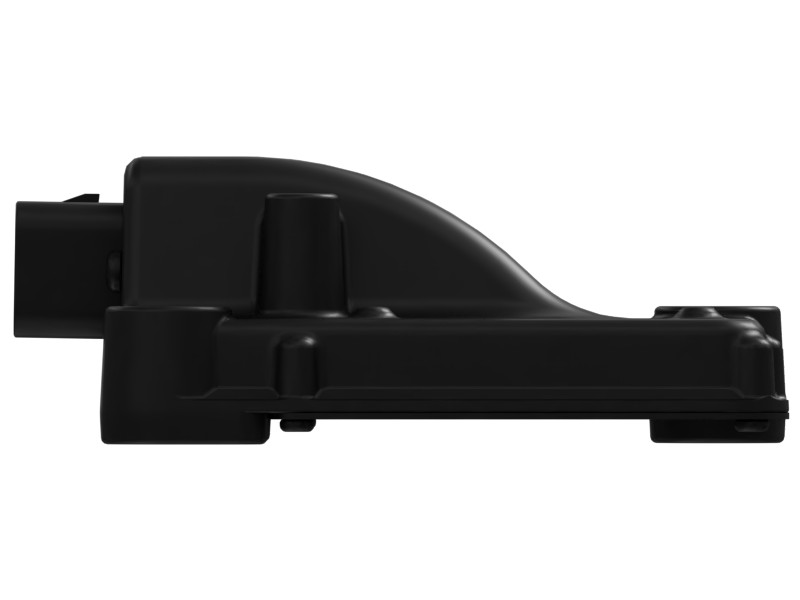

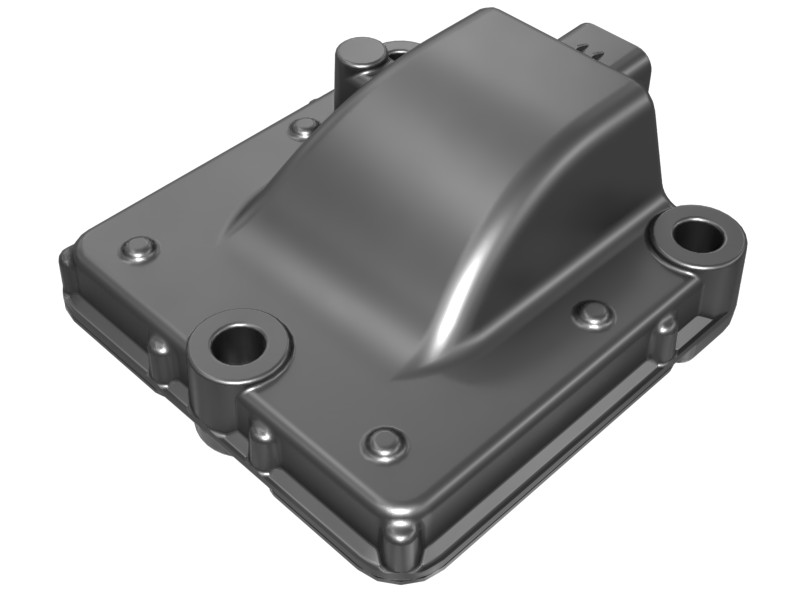

616-4042 Inertial Measurement Unit (IMU) Position Sensor
Cat® 7-32V Inertial Measurement Unit (IMU) Position Sensor
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Part number 616-4042 provides position sensors (IMU) for the boom, stick, and upper frame on certain excavator models. This sensor uses improved firmware to provide a fast dynamic response for the cut/fill guidance value stabilization function in the monitor when the front implement stops moving after a swing.
Features
- Inertial Measurement Unit (IMU)
- Voltage: 7-32 V
- PWM output
- Connector Type: 6-Position Ampseal 16
- Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
Applications
Cat sensors are suited to specific applications. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Connector Type | 6-Pin Ampseal 16 |
| Height | 110 mm (4.33 in) |
| Length | 110 mm (4.33 in) |
| Voltage | 7-32 V Volts |
| Width | 46 mm (1.81 in) |
Compatible Equipment
- Track Loaders: 982
- Wheel Loaders: 980
- Off-Highway Trucks: 735, 730, 725
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
