610-6264 Connecting Rod Group
Cat® 50-Joint Heavy Duty Extended Life (HDXL) Grease Lubricated Track (GLT) Link Group, Pitch: 203 mm
Description

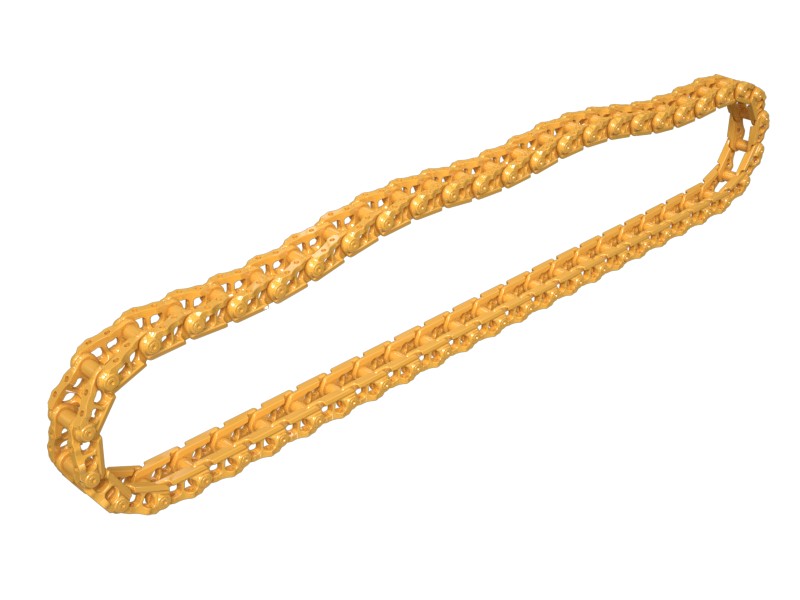

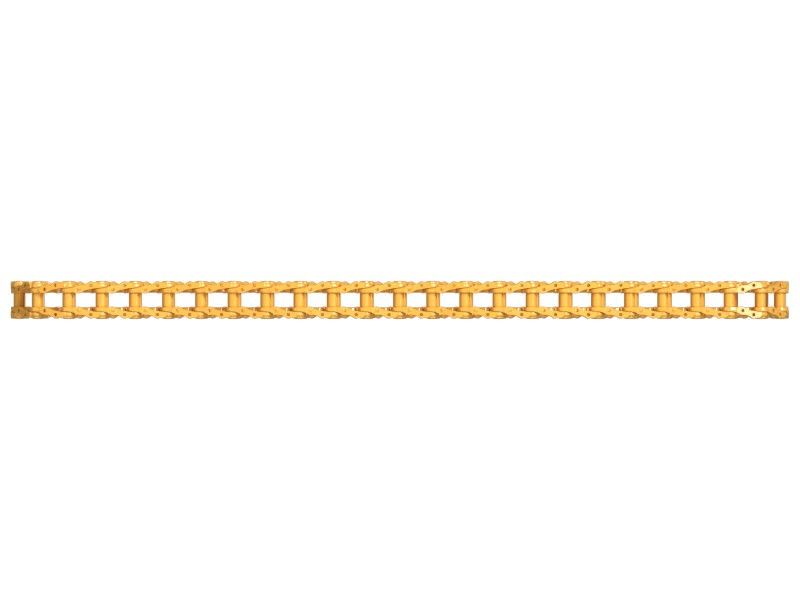

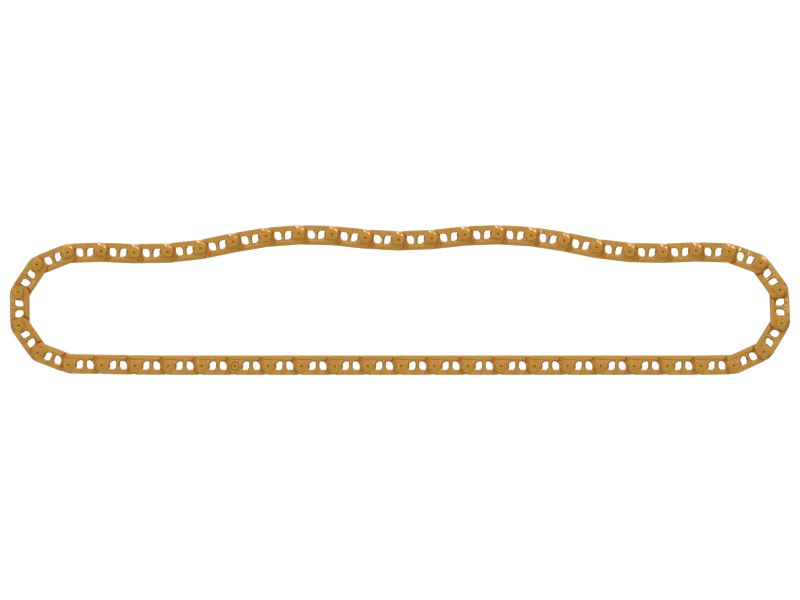

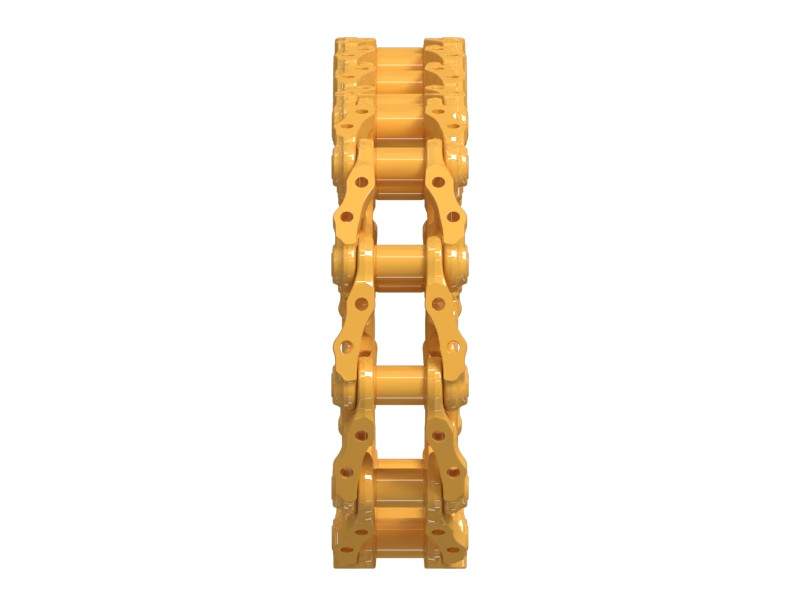

610-6264 is a Grease Lubricated Track link group.
The link assembly is driven by the sprocket and final drive. It supports the weight of the machine, provides a rail for the machine to travel on, and provides a place for the track shoes to attach.
Features
- Heavy Duty Extended Life (HDXL) Grease Lubricated Track (GLT) link group
- Track Pitch: 203 mm (8.0 in)
- Number of Track Links: 50
- Heavy duty track is the ideal choice for the most severe application demands. Even in the harshest conditions, it ensures wet bushing rotation, pin and bushing retention is industry-leading, and the added link weight helps prevent cracking. Components are made of premium steel and hardened for exceptional hardness and wear life, and they work and wear as a complete system to maximize uptime and productivity.
- Grease lubricated tracks have internally lubricated pins and bushings to avoid contact and friction, and each track joint is sealed to keep the grease in. Compared with sealed tracks, this extends internal wear life by 25%, reduces undercarriage noise, and lowers the chance of joints freezing or seizing.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Grease Lubricated Track Type | GLT |
|---|---|
| Track Reinforcement System | Not Applicable |
| Track Bolt Thread | M22 |
| Seal and Lubrication Type | Sealed |
| Main Bolt Thread | M22 |
| Master Link Type | Press Fit Master |
| Wear Sensor | No |
| Undercarriage System | HDXL |
| Bolt Hole Diameter | 23 mm (0.906 in) |
| Number of Links | 50 |
| Track Shoe Bolt Hole Spacing A | 72 mm (2.835 in) |
| Bushing Outside Diameter | 66 mm (2.598 in) |
| Pin Retention System | Press Fit |
| Pin Length | 230 mm (9.055 in) |
| Link Height | 115 mm (4.528 in) |
| Link Inside Spacing at Roller | 103.6 mm (4.079 in) |
| Link Outside Spacing | 185.3 mm (7.295 in) |
| Rotating Bushing Track | No RBT |
| Number of Track Links | 50 |
| Bolt Size | M22 mm |
| Rail to Bushing Outside Diameter | 31 mm (1.22 in) |
| Rail to Pin Boss Outside Diameter | 34.8 mm (1.37 in) |
| Track Shoe Bolt Hole Spacing C | 179 mm (7.047 in) |
| Track Shoe Bolt Hole Spacing B | 129 mm (5.079 in) |
| Link Inside Spacing at Sprocket | 83 mm (3.268 in) |
| Track Pitch | 203 mm (8.0 in) |
Compatible Equipment
- Excavators: 330 GC, 333, 320, 330
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
