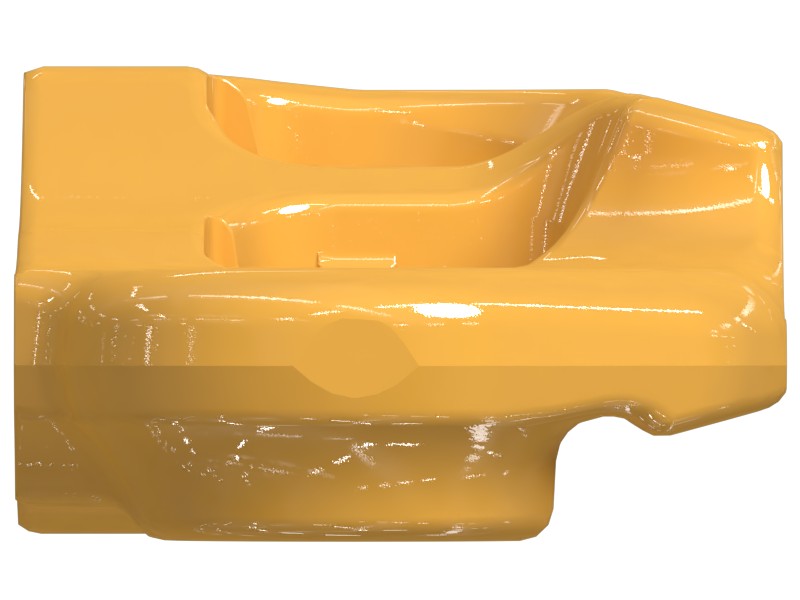

607-1453 Track Link
Cat® right track link for Grease Lubricated Track (GLT), pitch: 203 mm
Description
607-1453 is a track link that makes up the link group and provides a running rail for the machine.
Features
- Right Track Link
- Used with Grease Lubricated Track (GLT) systems.
- Track Pitch: 203 mm (8.0 in)
- Grease lubricated tracks have internally lubricated pins and bushings to avoid contact and friction, and each track joint is sealed to keep the grease in. Compared with sealed tracks, this extends internal wear life by 25%, reduces undercarriage noise, and lowers the chance of joints freezing or seizing.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Track Pin Bore Diameter | 41.65 mm (1.64 in) |
|---|---|
| Rail to Pin Boss Outside Diameter | 38 mm (1.496 in) |
| Pin End Bar Thickness | 40.5 mm (1.594 in) |
| Bushing End Bar Thickness | 26 mm (1.024 in) |
| Overall Height | 115 mm (4.528 in) |
| Hole to Rail | 64 mm (2.52 in) |
| Pin Retention System | Press Fit |
| Lug Thickness | 0 mm (0 in) |
| Track Link Crown Height | 0 mm (0 in) |
| Bushing Bore Diameter | 63.6 mm (2.504 in) |
| Pin End Boss Thickness | 18 mm (0.709 in) |
| Bolt Hole Diameter | 23 mm (0.906 in) |
| Steel Grade | 1E0669 |
| Undercarriage System | HD |
| Wear Sensor | No |
| Main Bolt Thread | M22 |
| Master Link Type | None |
| Track Pitch | 203 mm (8.0 in) |
| Bolt Size | M22 mm |
Compatible Equipment
- Excavators: 330 GC, 333, 320, 330GC, 330
