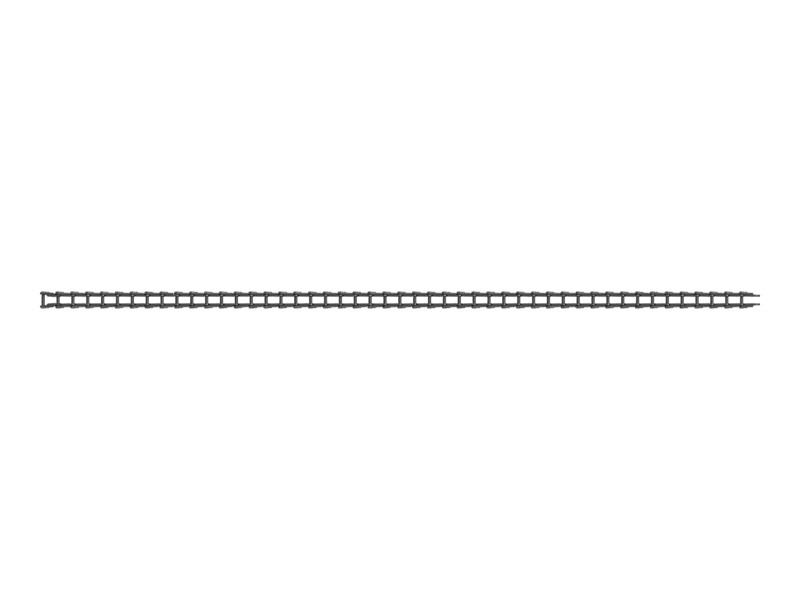

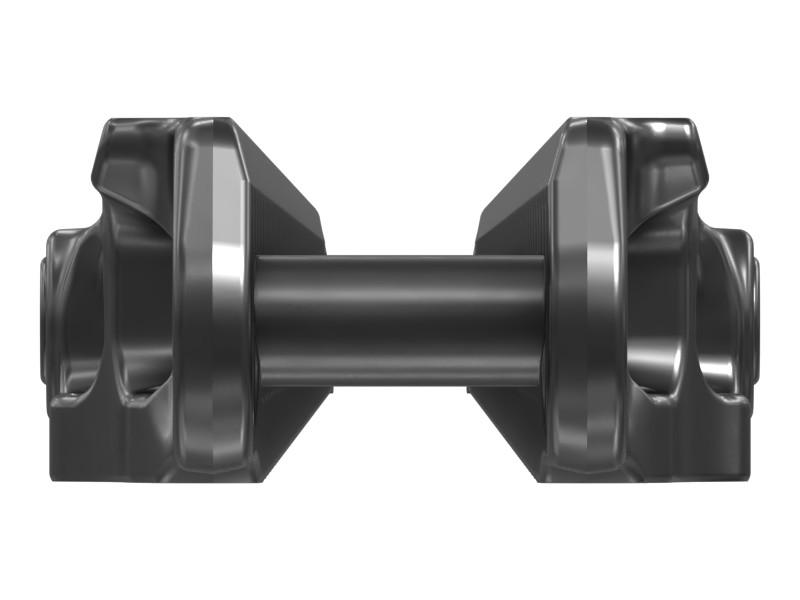

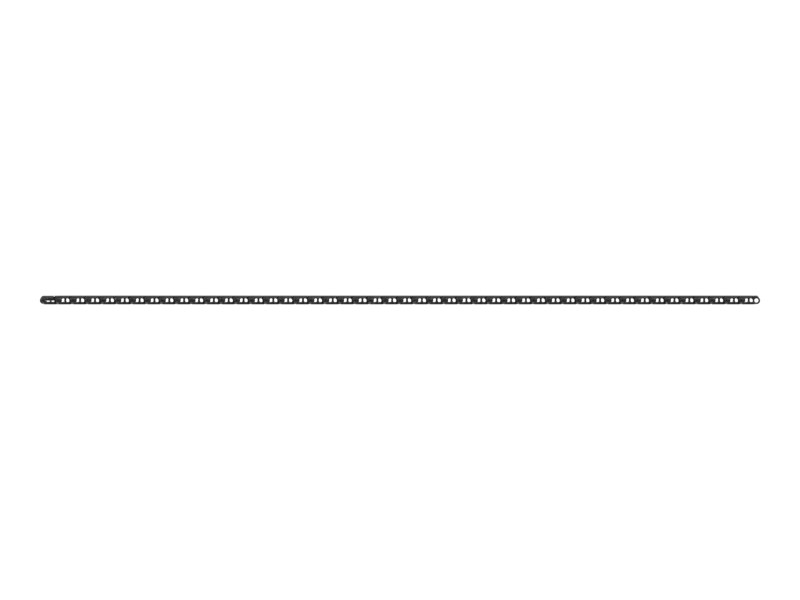

604-7722 48 Joint Grease Lubricated Track Link
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Specifications
| Track Shoe Bolt Hole Spacing B | 129 mm (5.079 in) |
|---|---|
| Number of Links | 48 |
| Master Link Type | Clamp Master |
| Track Shoe Bolt Hole Spacing C | 179 mm (7.047 in) |
| Seal and Lubrication Type | SALT |
| Rotating Bushing Track | No RBT |
| Bushing Outside Diameter | 66 mm (2.598 in) |
| Link Height | 115 mm (4.528 in) |
| Grease Lubricated Track Type | GLT |
| Track Pitch | 202.81 mm (7.985 in) |
| Pin Length | 230 mm (9.055 in) |
| Wear Sensor | No |
| Pin Retention System | Press Fit |
| Track Bolt Thread | M20 |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Undercarriage System | GD |
Additional information
| Part Source | Genuine OEM |
|---|
