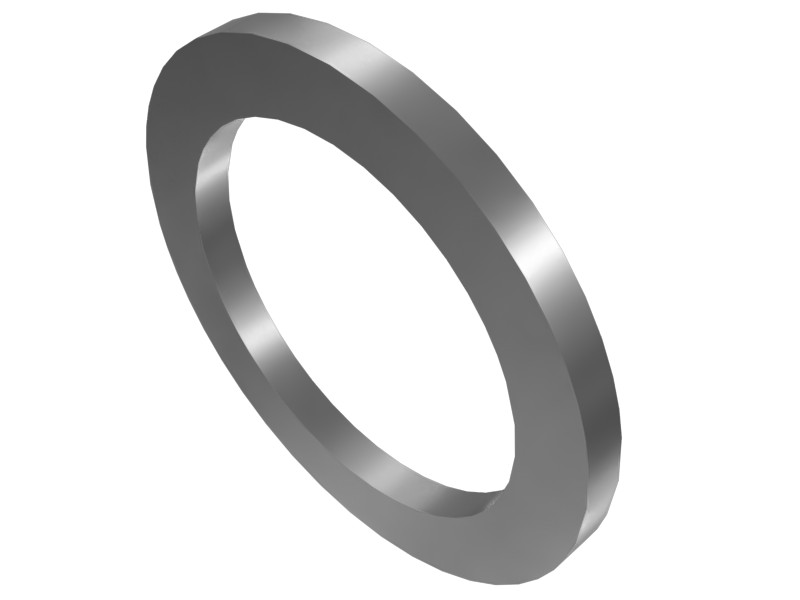

5W-1693 Sealing Washer
Cat® Driven Shaft Seal Washer
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The driven shaft seal washer is a type of washer used in mechanical systems to provide a seal between the driven shaft and the surrounding environment. It helps prevent leakage of fluids such as oil or lubricant and the entry of contaminants into the system. Its main function is to provide a sealing barrier between the driven shaft and the external environment to prevent fluid leakage and contamination.
Attributes
Resistant to high temperatures and chemical exposure.
Provides a tight seal.
Applications
Driven shaft seal washers are used to provide sealing between shafts, preventing fluid leakage and contamination. Widely used in Cat® 205, 206, 206B, 211, 212, 212B, 213, 213B, 214, 214B, 224, 224B, 349E, M312, M313C, M313D, M314, M314F, M315, M315C, M315D, M315F, M316, M316C, M316D, M316F, M317, M317D, M317F, M318, M318C, M318D, M318F, M319, M320, M320D, M320F, M322, M322C, M322D, M322F, M323F, M324D, M325C, MH3022, MH3024 and MH3026 Excavators, M318D, M320F, M322D, M325D, M330D, M333F, MH3022, MH3024 and MH3026 Material Handlers.
Specifications
| Inside Diameter | 10.2 mm (0.4 in) |
|---|---|
| Material | Carbon Steel |
| Outside Diameter | 13.9 mm (0.55 in) |
| Thickness | 1 mm (0.04 in) |
| Weight | 0.002 kg (0.004 lb) |
Compatible Equipment
- Wheel Excavators: M315GC, M320, M315, M313D, M315D, M315D2, M322D, M317D2, M320D2
- Excavators: M325D L MH, 345 GC
- Wheel Loaders: M314
