Description

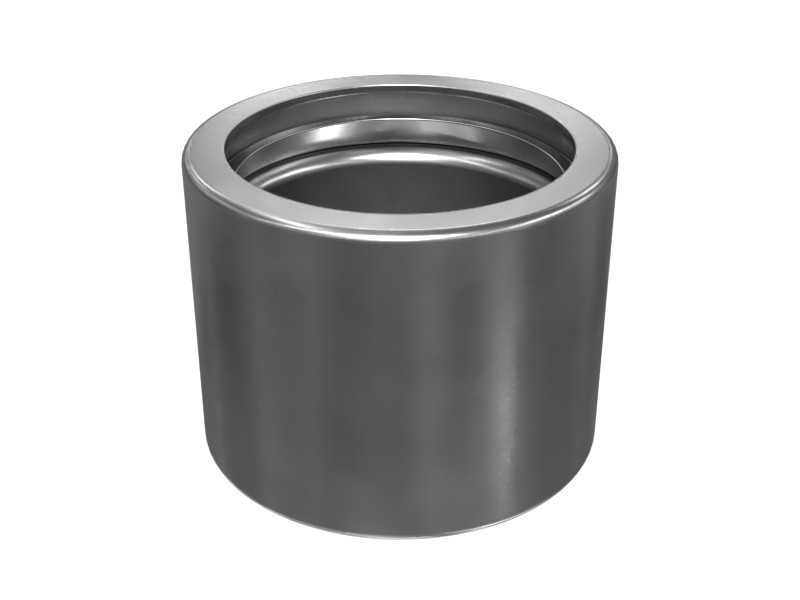

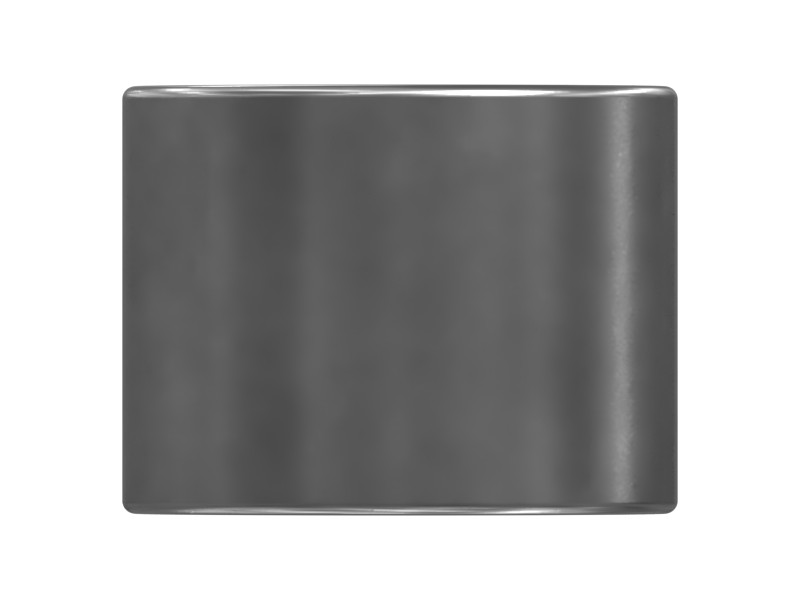

Cat drawn cup needle roller bearings can withstand heavy loads and run smoothly at high speeds. The case-hardened shell serves as the outer bearing raceway, and its formed lips mechanically retain the needle rollers, retain lubricant and keep out foreign material and contaminants.
Features
- Outside Diameter: 20.638 mm (0.8125 in)
- Inside Diameter: 15.875 mm (0.625 in)
- Height: 15.88 mm (0.625 in)
- Able to withstand high loads, with high hardness
- Supports high rotational speeds
- Requires minimal radial installation space
- One-piece unit for easy handling and installation
Applications
Drawn cup needle roller bearings are designed to support larger shaft diameters, with the bearing running directly on the shaft. They are most commonly used in applications where the housing bore cannot serve as a raceway. Typical applications for drawn cup needle roller bearings are general gear reducer shaft supports, gear pumps and guide bearings.
Specifications
| Material | Alloy Steel |
|---|---|
| Outside Diameter | 20.638 mm (0.8125 in) |
| Inside Diameter | 15.875 mm (0.625 in) |
| Height | 15.88 mm (0.625 in) |
Compatible Equipment
- Motor Graders: 140 GC, 12K, 120H, 140K, 160K, 140H, 12H, 16H
- Track Loaders: 973K, 963, 953, 963D, 953D, 953K, 963K
- Cold Planers: PL61
- Dozers: D10N, D10, D11N, D6R, D7R, D5M, D6N, D6M, D8L, D5G, D5K LGP, D3G, D6G2 LGP, D5N, D4G, D3K2 LGP, D9L, D5K2 XL, D5K XL, D6K2, D9N, D7E, D6G2 XL
- Excavators: 120 GC
Additional information
| Machine Model | 120 GC, 120H, 12H, 12K, 140 GC, 140H, 140K, 160K, 16H, 953, 953D, 953K, 963, 963D, 963K, 973K, D10, D10N, D11N, D3G, D3K2 LGP, D4G, D5G, D5K LGP, D5K XL, D5K2 XL, D5M, D5N, D6G2 LGP, D6G2 XL, D6K2, D6M, D6N, D6R, D7E, D7R, D8L, D9L, D9N, PL61 |
|---|---|
| Equipment Type | Excavators, Track Loaders, Dozers, Motor Graders, Cold Planers |
| Part Source | Genuine OEM |
