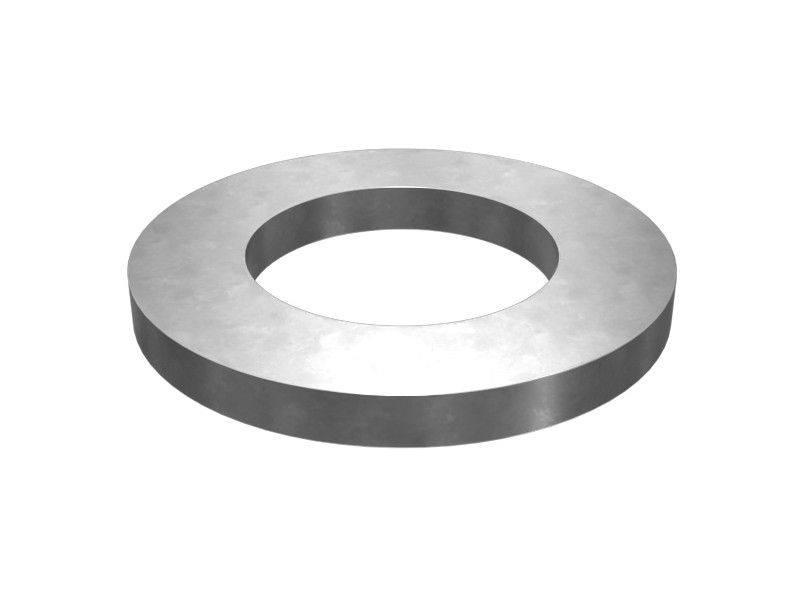

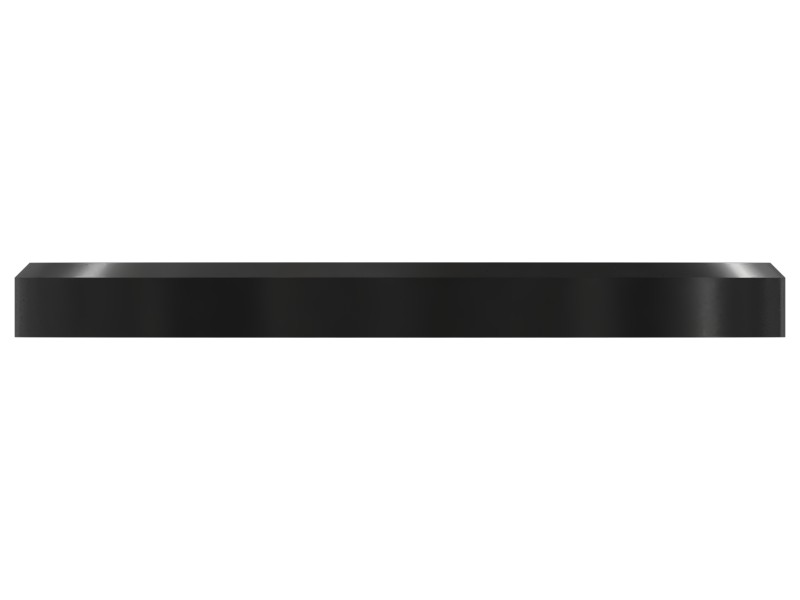

5P-8249 24 mm ID Washer
Flat Washer
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Inside Diameter | 24 mm (0.945 in) |
|---|---|
| Outside Diameter (OD) – 2 | 1.62 in |
| Surface Finish | Phosphate and Oil Coating |
| Outside Diameter | 41.5 mm (1.634 in) |
| Inside Diameter (ID) – 1 | 0.94 in |
| Hardened | Yes |
| Thickness – 3 | 0.16 in |
| Material | Alloy Zinc |
| Gasket Type | Flat Washer |
| Fits Bolt Size | M22 mm (7/8 in) |
| Coating | Zinc phosphate + oil provides corrosion protection up to the point of assembly (painting is recommended for exterior applications). Salt spray resistance: 72 hours with no red rust. Coating color – dark gray to black. |
| Thickness | 4 mm (0.157 in) |
Compatible Equipment
- Generator Sets: 3516C, 3406C, 3512E, 3512B, G3516, G3516C, 3406B, C4.4
- Track Loaders: 953, 963, 824C, 826K, 990K, 824G, 816F, 994K, 995, 972, 834H, 826H
- Cold Planers: PL83, PL87
- Compactors: 824K, 816, 815, 814, 834K, C-15
- Engines: C15, C32, C27, C18
- Excavators: 3456, 3516E, 3516B, 3512C, 637E, 3508B, 6060, 657G, 621G, 637G, 328D LCR, 325C, 335F LCR, 323, 335, 320, 320 GC
- Motor Graders: 140G, 14M, 12H, 120H, 160K, 140H, 16H
- Dozers: D8, D6R II, D7R II, D5H, D7G, D7H, D4E, D6R, D7R, D8N, D8R, D9R, D6G2 LGP, D8T, D6M, D6T, D7, D9, D9L, D7G2, D7E, D9T, D6N, D8L, D6T LGP, D9N, D6R III, D6G2 XL, D10R, D10N, D10T, D11, D11R, D10, D11N, D11T, D10T2, D6G
- Wheel Loaders: 972L, 966F, 966H, 950, R1700 II, 972G, 990H, 972H, 836, 966K, R3000H, 980G, R1700G, 980H, R2900G, 966L, 992C, 992D, 834, R1700 XE, 966, R1600H, R1700K
- Off-Highway Trucks: 789D, 785, 793, 785D, 773, 770G, 777, 789, 793F, 772G, 771D, 773D, 777E, 793D, 773E, 777D, 773F, 775G
Additional information
| Machine Model | 120H, 12H, 140G, 140H, 14M, 160K, 16H, 320, 320 GC, 323, 325C, 328D LCR, 335, 335F LCR, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6060, 621G, 637E, 637G, 657G, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 814, 815, 816, 816F, 824C, 824G, 824K, 826H, 826K, 834, 834H, 834K, 836, 950, 953, 963, 966, 966F, 966H, 966K, 966L, 972, 972G, 972H, 972L, 980G, 980H, 990H, 990K, 992C, 992D, 994K, 995, C-15, C15, C18, C27, C32, C4.4, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D6M, D6N, D6R, D6R II, D6R III, D6T, D6T LGP, D7, D7E, D7G, D7G2, D7H, D7R, D7R II, D8, D8L, D8N, D8R, D8T, D9, D9L, D9N, D9R, D9T, G3516, G3516C, PL83, PL87, R1600H, R1700 II, R1700 XE, R1700G, R1700K, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
