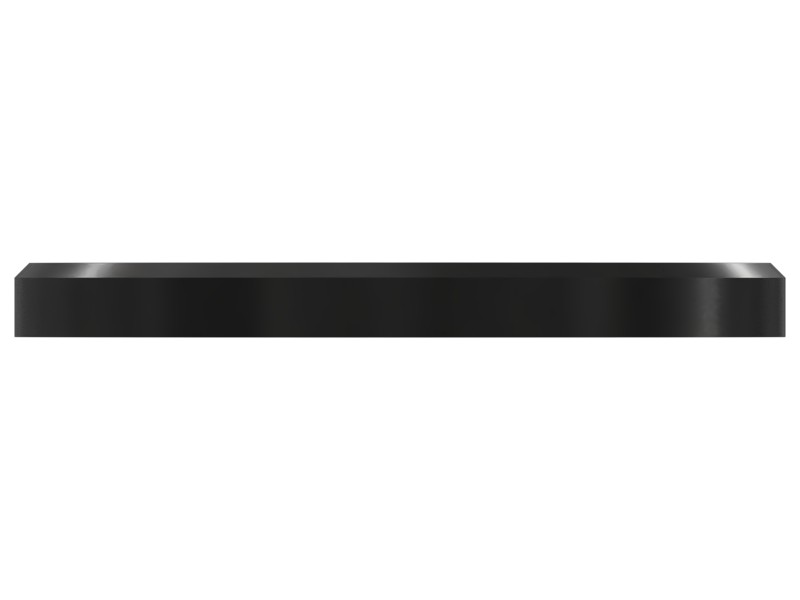

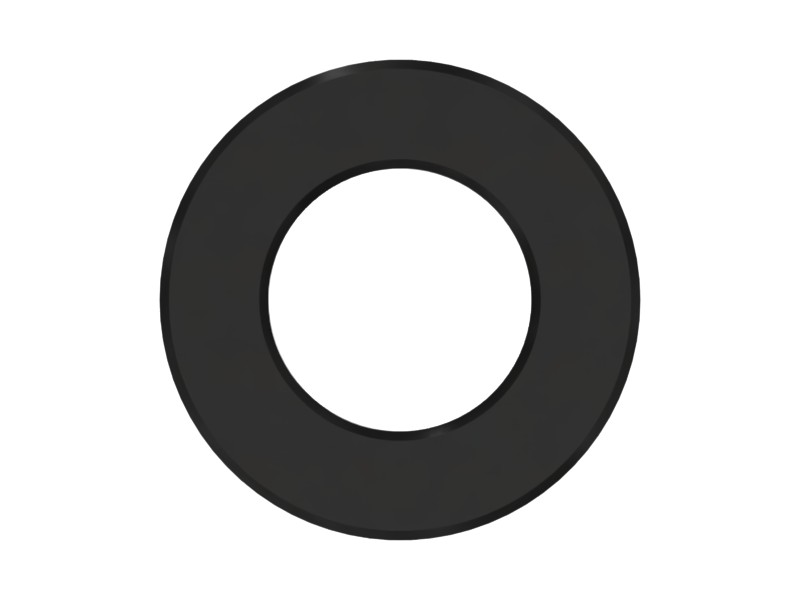

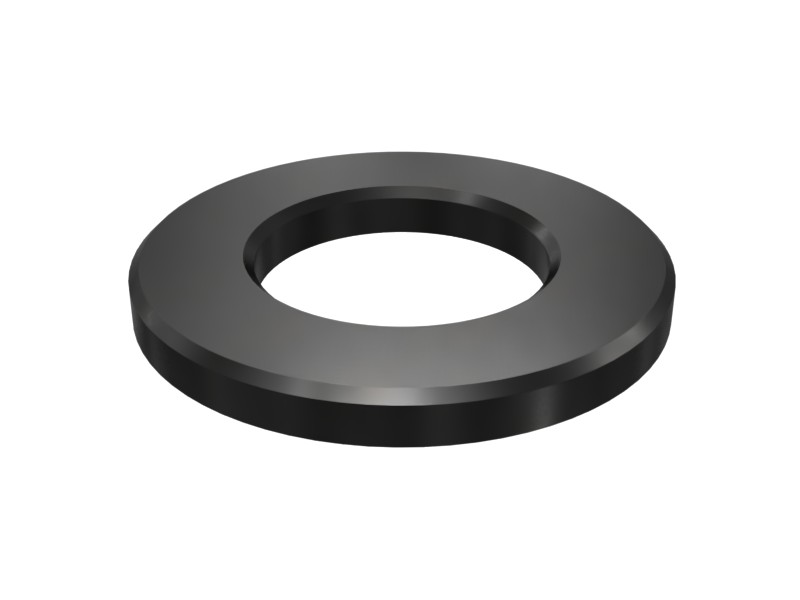

5P-8248 3/4″ ID Steel Flat Washer
Cat® hard washer designed for 0.75 inch fasteners, preventing the fastener from sinking into the material and distributing the load more evenly.
Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Specifications
| Thickness – 3 | 0.14 in |
|---|---|
| Inside Diameter | 20 mm (0.787 in) |
| Hardened | Yes |
| Surface Finish | Phosphate and Oil Coating |
| Inside Diameter (ID) – 1 | 0.79 in |
| Outside Diameter | 36.5 mm (1.437 in) |
| Outside Diameter (OD) – 2 | 1.44 in |
| Material | HARDENED STEEL |
| Gasket Type | Flat Washer |
| Fits Bolt Size | M18 mm (3/4 in) |
| Coating | Zinc phosphate + oil provides corrosion protection up to the point of assembly (painting is recommended for exterior applications). Salt spray resistance: 72 hours with no red rust. Coating color – dark gray to black. |
| Thickness | 3.5 mm (0.138 in) |
Compatible Equipment
- Generator Sets: G3516, 3516C, C4.4, G3516C, 3512E, 3512B, 3406B, 3406C, C9
- Track Loaders: 972, 982, 953, 826K, 973K, 993, 995, 963, 824C, 826H, 826G, 834H, 824G, 994K, 816F, 990K, 992
- Cold Planers: PL87, PL83, SE60 VT XW, TH55-E70
- Compactors: 825K, C9.3B, 815, 816, 814, 834K, CS-533C, 824K, C13B, C-9, C-15
- Engines: C32, C13, C27, C11, C15, C7, C18, C12, C175-16
- Excavators: 301.7D, 349D2, 3126, 3456, 349D2 L, 349D, 3516B, 3508B, 3512C, SE60 V XW, 120 GC, 6060, 3516E, 325, 637E, 621K, 637K, 320D L, 621H, 345D L, 621G, 349D L, 416E, 345D, 657G, 637G, 325B L
- Asphalt Pavers: AP655F, AD63, AP-600D, AD30, AD45, AP655F L
- Skid Steer Loaders: 3126B, 24
- Motor Graders: 18, 120, 160K, 12K, 140K, 3606, 12H, 140G, 120H, 140H, 16M, 14M, 16H, 14
- Wheel Excavators: MD6200
- Dozers: D5N, D4E, D7H, D6R II, D6R III, D9L, D7G, D8L, D6K2, D6T LGP, D7R II, D7R, D8N, D9T, D6R, D9R, D6T, D5H, D6R XL, D6N, D6M, D5M, D9N, D10T2, D11T, D1, D6G2 XL, D6G2 LGP, D4, D5K2 XL, D5G, D10, D10R, D5K XL, D8R, D7G2, D10N, D6R LGP, D11R, D10T, D11, D11N, D3K2 LGP, D6G, D5K LGP, D9
- Mini Excavators: 301.7D CR
- Wheel Loaders: 980, 834, 966, 950, R2900G, R1700G, 950 GC, 980H, R1700 II, R1700K, 926M, 938M, 980L, RM400, 950H, R1700 XE, R3000H, 972G, 966L, 966K, 972H, 836, 966H, 988K, 980G, 992C, 990H, 910, 962L, 966F, 950L, 950G, 972L, 986H, 988F, 988G, 992D, R1300G, R1600H, 962G, 988H
- Off-Highway Trucks: 785D, 794 AC, 793D, 730, 735, 725, 771D, 773E, 777, 773, 777E, 789D, 793, 789, 785, 775G, 740, 773F, 793F, 772G, 777D, 770G, 773D, 740B, 740 GC, 745C, 796 AC, 745, 7495, 798 AC, 725C2
