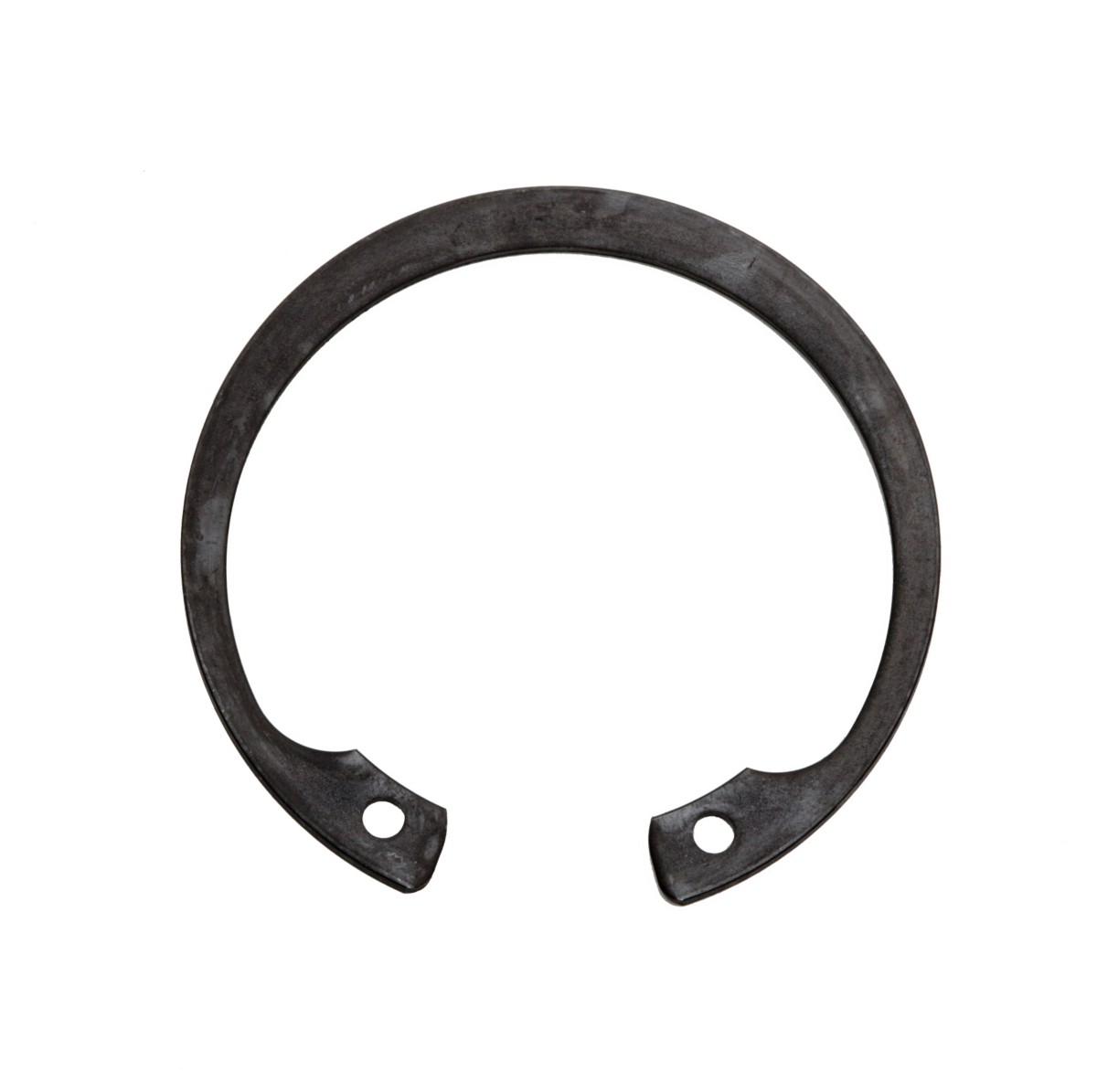

5P-8194 Transmission Retaining Ring
Cat® Planetary Transmission Retaining Ring
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The planetary transmission external retaining ring is a specific type of retaining ring in a planetary gear system, used to secure and hold the planetary gears and other components. This outer ring fits into a groove or cutout on the outer surface of the planetary gear assembly, and is used to secure the gear and prevent axial movement of the gear.
Features
- Ensures a tight, reliable fit.
- Able to withstand maximum forces and loads.
- Non-corrosive.
Applications
The planetary transmission external retaining ring is an important component in the planetary gear system, ensuring proper positioning and retention of the planetary gears and related components.
Specifications
| Material | Carbon Steel |
|---|---|
| Thickness – B | 0.187 in |
| Shape | Rectangular |
| Free Diameter – A | 10.46 in |
| Snap Ring Type | Internal |
| Material Description | Steel Retaining Ring |
| Thickness | 4.75 mm |
| Remarks | Free Diameter: 265.56, Radial Wall: 12.7, Lug Height: 0, Groove Width: 5.36, Groove Diameter: 262.38, Housing Diameter: 254 |
| Cross Hole | None |
| Hole Diameter | 10.00 in |
Compatible Equipment
- Track Loaders: 972, 816F
- Cold Planers: PL72, PL83, PL87
- Compactors: 815, 816, 814
- Dozers: D6T LGP, D7R II, D6R, D6R II, D7R, D8T, D6R III, D6T, D7H, D8N, D8R, D8, D6R XL, D6R LGP
- Excavators: 3516B, 3508B
- Wheel Loaders: 980M, 972M
Additional information
| Machine Model | 3508B, 3516B, 814, 815, 816, 816F, 972, 972M, 980M, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7H, D7R, D7R II, D8, D8N, D8R, D8T, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Compactors, Cold Planers |
| Part Source | Genuine OEM |
