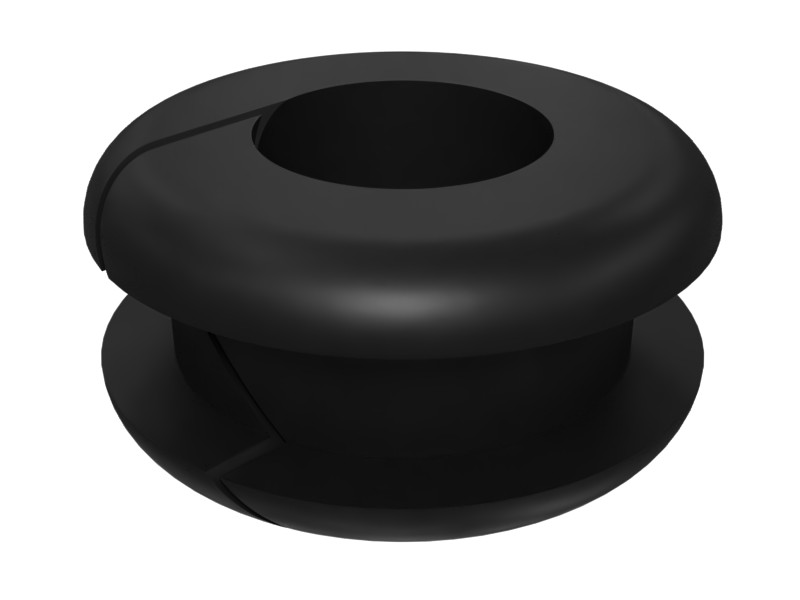

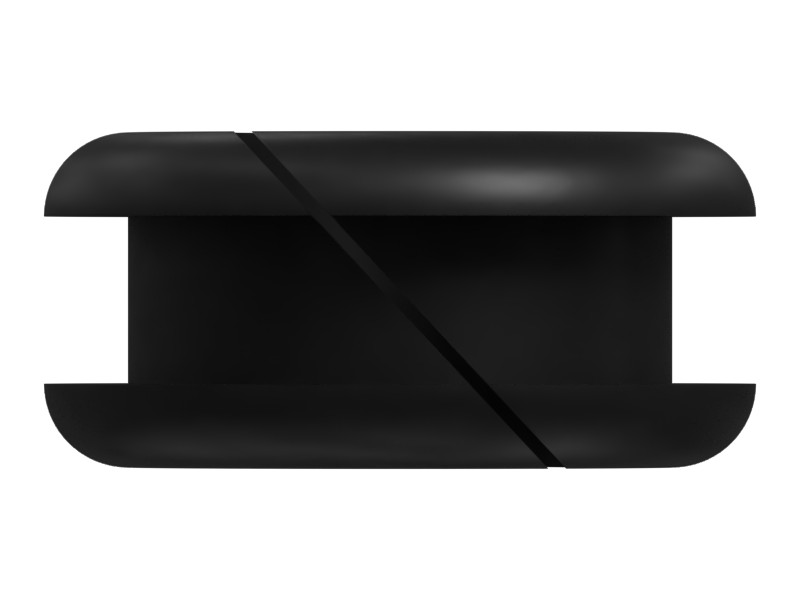

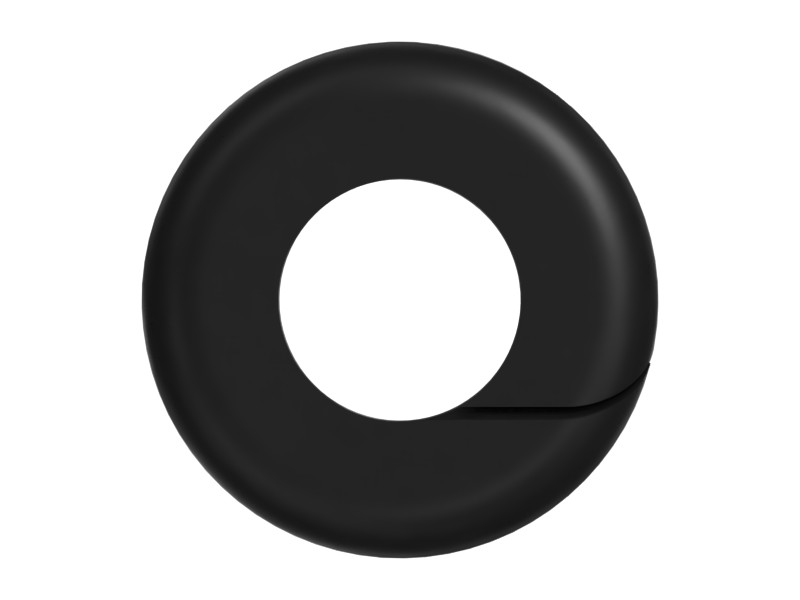

5P-7648 12.70 mm Double Flange Rubber Grommet

Description

Cat® grommets are made of high-quality rubber suited to the equipment's environment. They keep wires and cables from contacting metal, protect these components from damage (vibration), and prevent rubbing against surrounding structures (vibration, shock, noise).

The grommet has a rubber flange placed evenly on both sides of the material to hold the rubber in place.

Features

The grommet has a rubber tab placed evenly on both sides of the material to hold the rubber in place.

Applications

Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Diameter	20.64 mm (0.81 in)
Outside Diameter	27 mm (1.06 in)
Length	12.7 mm (0.5 in)
Inside Diameter	12.7 mm (0.5 in)
Groove Width – A	6.35 mm (0.25 in)
Material Description	Rubber

Compatible Equipment

Track Loaders: 824G, 816F, 826K, 826G, 982, 972, 995
Cold Planers: TH417D
Compactors: 825K, 834K, 824K, CB-34B, CB-24B, CB2.7, CC-34B, CB-36B, CS12, CB2.5, CB2.9, CS11, CP12 GC, CS12 GC, CP11 GC, CB2.5 GC, CC2.7 GC, CB2.7 GC
Engines: C32
Asphalt Pavers: AD63
Skid Steer Loaders: 236D3, 262D, 236D, 246D, 262D3, 232D, 289D3, 242D3, 259D3, 272D3 XE, 239D3, 232D3, 246D3, 299D3 XE, 236B3, 216B3, 226D3, 272D3, 249D3
Motor Graders: 14
Wheel Excavators: MD6250
Dozers: D11R, D3K2 LGP, D10, D10R, D11T, D6T, D6N, D5K2 XL, D7G, D9R, D8T, D9T, D8R, D7R II, D7, D8
Compact Track Loaders: 279D3, 299D3
Excavators: 432, 428F, 6015B, 416F2, 6060, 6015, 6030, 434F2
Wheel Loaders: 980G, 924HZ, 924GZ, 988K, 928G, 836, 910, 950G, 966F, 928HZ, 990H, 906K, 962G, 992D, 966, 980, R1700 XE, 950, 834
Off-Highway Trucks: 789D, 793F, 794 AC, 796 AC, 798 AC, 793, 7495, 797F, 789

Machine Model	14, 216B3, 226D3, 232D, 232D3, 236B3, 236D, 236D3, 239D3, 242D3, 246D, 246D3, 249D3, 259D3, 262D, 262D3, 272D3, 272D3 XE, 279D3, 289D3, 299D3, 299D3 XE, 416F2, 428F, 432, 434F2, 6015, 6015B, 6030, 6060, 7495, 789, 789D, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 816F, 824G, 824K, 825K, 826G, 826K, 834, 834K, 836, 906K, 910, 924GZ, 924HZ, 928G, 928HZ, 950, 950G, 962G, 966, 966F, 972, 980, 980G, 982, 988K, 990H, 992D, 995, AD63, C32, CB-24B, CB-34B, CB-36B, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC-34B, CC2.7 GC, CP11 GC, CP12 GC, CS11, CS12, CS12 GC, D10, D10R, D11R, D11T, D3K2 LGP, D5K2 XL, D6N, D6T, D7, D7G, D7R II, D8, D8R, D8T, D9R, D9T, MD6250, R1700 XE, TH417D
Equipment Type	Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines
Part Source	Genuine OEM

Machine Model

14, 216B3, 226D3, 232D, 232D3, 236B3, 236D, 236D3, 239D3, 242D3, 246D, 246D3, 249D3, 259D3, 262D, 262D3, 272D3, 272D3 XE, 279D3, 289D3, 299D3, 299D3 XE, 416F2, 428F, 432, 434F2, 6015, 6015B, 6030, 6060, 7495, 789, 789D, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 816F, 824G, 824K, 825K, 826G, 826K, 834, 834K, 836, 906K, 910, 924GZ, 924HZ, 928G, 928HZ, 950, 950G, 962G, 966, 966F, 972, 980, 980G, 982, 988K, 990H, 992D, 995, AD63, C32, CB-24B, CB-34B, CB-36B, CB2.5, CB2.5 GC, CB2.7, CB2.7 GC, CB2.9, CC-34B, CC2.7 GC, CP11 GC, CP12 GC, CS11, CS12, CS12 GC, D10, D10R, D11R, D11T, D3K2 LGP, D5K2 XL, D6N, D6T, D7, D7G, D7R II, D8, D8R, D8T, D9R, D9T, MD6250, R1700 XE, TH417D

Equipment Type

Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines

Part Source

Genuine OEM
